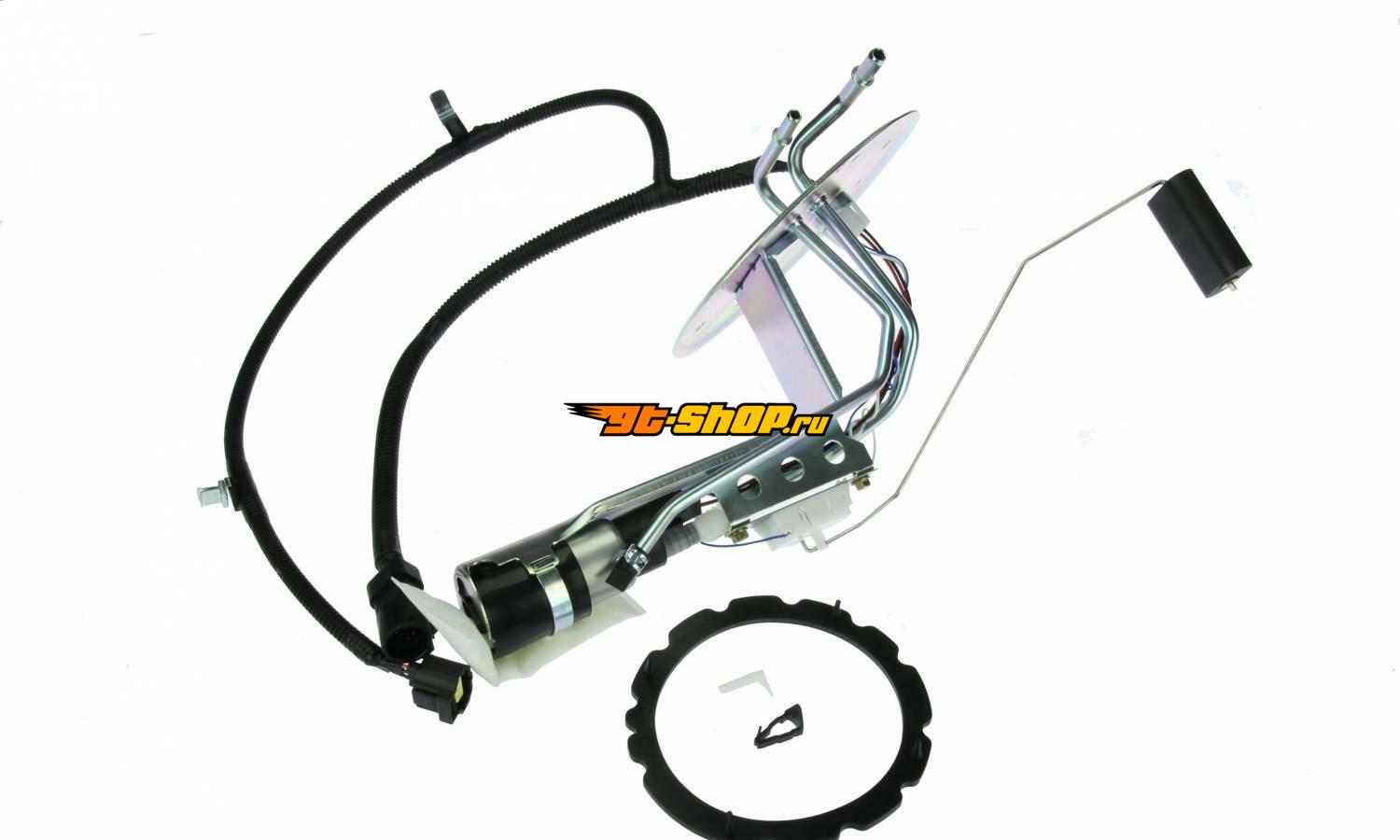

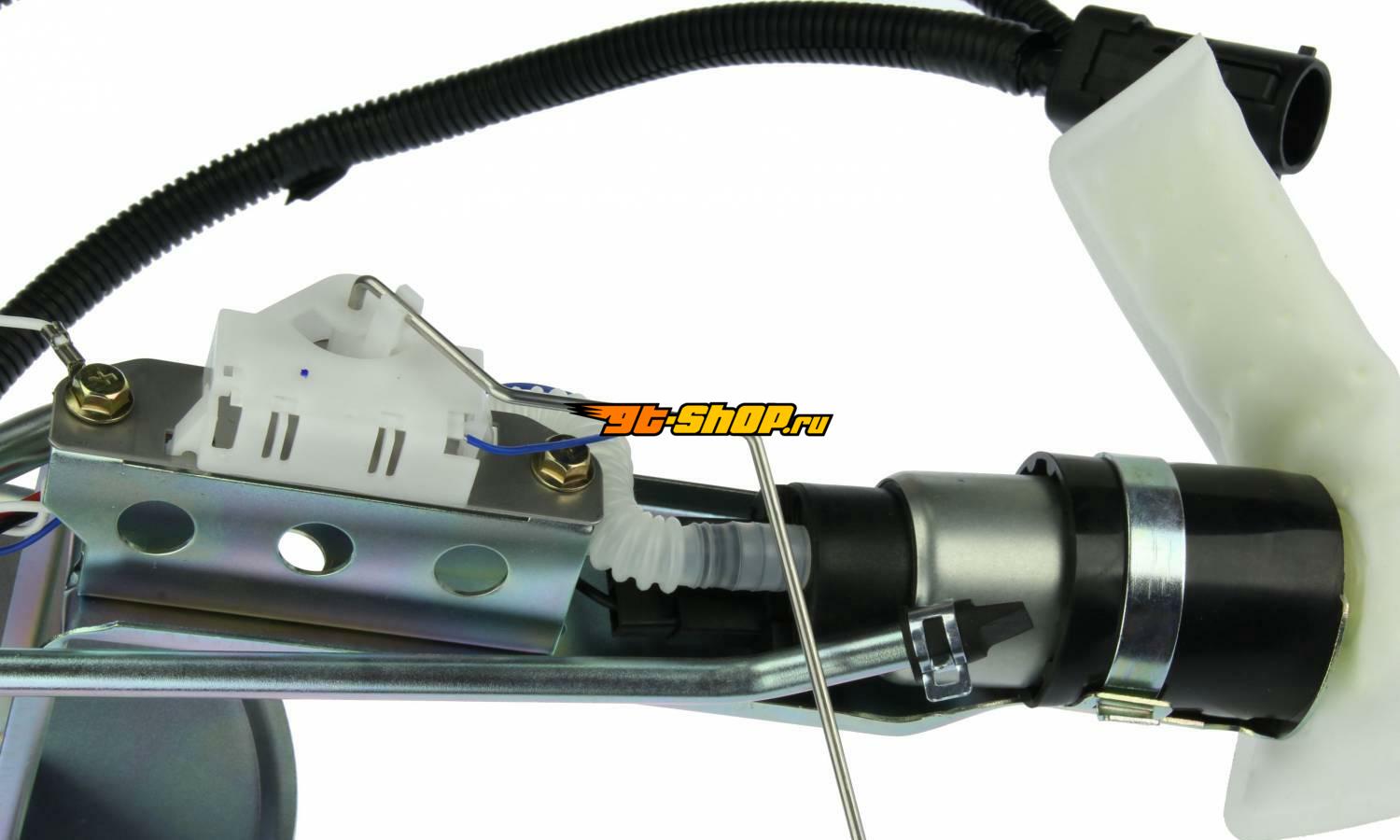

Оригинал. AUTOTECNICA FD0517387, Топливный насос двигателя, От 10750 Руб.
AUTOTECNICA FD0517387
AUTOTECNICA FD0517387
Топливный насос двигателя
| AUTOTECNICA FD0517387 Specifications | |
|---|---|
| Amperage (A) | 7.55 A |
| Attachment Method | In Tank |
| Average Current Draw | 7.55 |
| Average Flow Rating | 40.3 GP |
| Bracket Included | Yes |
| Connector Color | Black |
| Connector Gender | Female |
| Connector Shape | Round/Oval |
| Connector Type | HOSE |
| Electric Or Mechanical | Electric |
| Fill Vapor Valve Included | No |
| Flow Rate (gph) | 40.3 GP |
| Flow Restriction Pressure (psi) | NA |
| Fuel Filter Included | No |
| Fuel Level Sensor Assembly Included | Yes |
| Fuel Level Vent Valve (FLVV) Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | NBR |
| Grade Type | Regular |
| Hardware Included | No |
| Height | 170 mm |
| Housing Length | NA |
| Housing Material | Steel |
| Housing Width | NA |
| In Tank or External | In Tank |
| In-Line Pump | No |
| Inlet Diameter (IN) | .314 in |
| Inlet Fitting Size (IN) | NA |
| Inlet Fitting Thread Size | NA |
| Inlet Fitting Type | HOSE |
| Inlet Outside Diameter | 8 mm |
| Inlet Quantity | 1 |
| Inlet Thread Diameter | NA |
| Inlet Type | HOSE |
| Internal Or External Strainer | External |
| Intlet Fitting Thread Size | NA |
| Length | 390 mm |
| Lock Ring Included | No |
| Manufacturer | Autotecnica |
| Maximum Flow Rate (gph) | NA |
| Maximum Flow Rating | NA |
| Maximum Pressure | NA |
| Minimum Flow Rate (gph) | NA |
| Minimum Flow Rating | NA |
| Minimum Free Flow Rate | NA |
| Minimum Pressure | NA |
| Module Included | No |
| Mounting Hardware Included | No |
| Negative Ground | Yes |
| Number of Connectors | 2 |
| Number of Mounting Holes | 7 |
| OE Part/Casting Number | XW1Z9H307AG |
| Operating Pressure (psi) | NA |
| Outlet Attachment Method | HOSE |
| Outlet Diameter (IN) | .374 IN |
| Outlet Fitting Size (IN) | NA |
| Outlet Fitting Type | HOSE |
| Outlet Outside Diameter | 9.5 mm |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | NA |
| Outlet Type | HOSE |
| Pump Design | NA |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 14.8 |
| Resistance Ohms Full | 159 |
| Rollover Valve Included | No |
| Shut Off Pressure (psi) | NA |
| Strainer Included | Yes |
| Strainer Location | Bottom |
| Tank Seal Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Pin |
| Thermistor Low Fuel Indicator Included | No |
| Top Mount Diameter | 191 MM |
| Universal Or Specific Fit | Specific |
| Vapor Pressure Sensor Included | No |
| Vapor Vent Line Included | No |
| Voltage | 12 |
| Voltage (V) | 12 |
| Width | 300 mm |
| Wire Harness Included | Yes |
| Wire Harness Length | 440 mm |
| Wire Quantity | 7 |
| Производитель | AUTOTECNICA |
| Оригинальный Номер | FD0517387 |
| Описание | Топливный насос двигателя |
