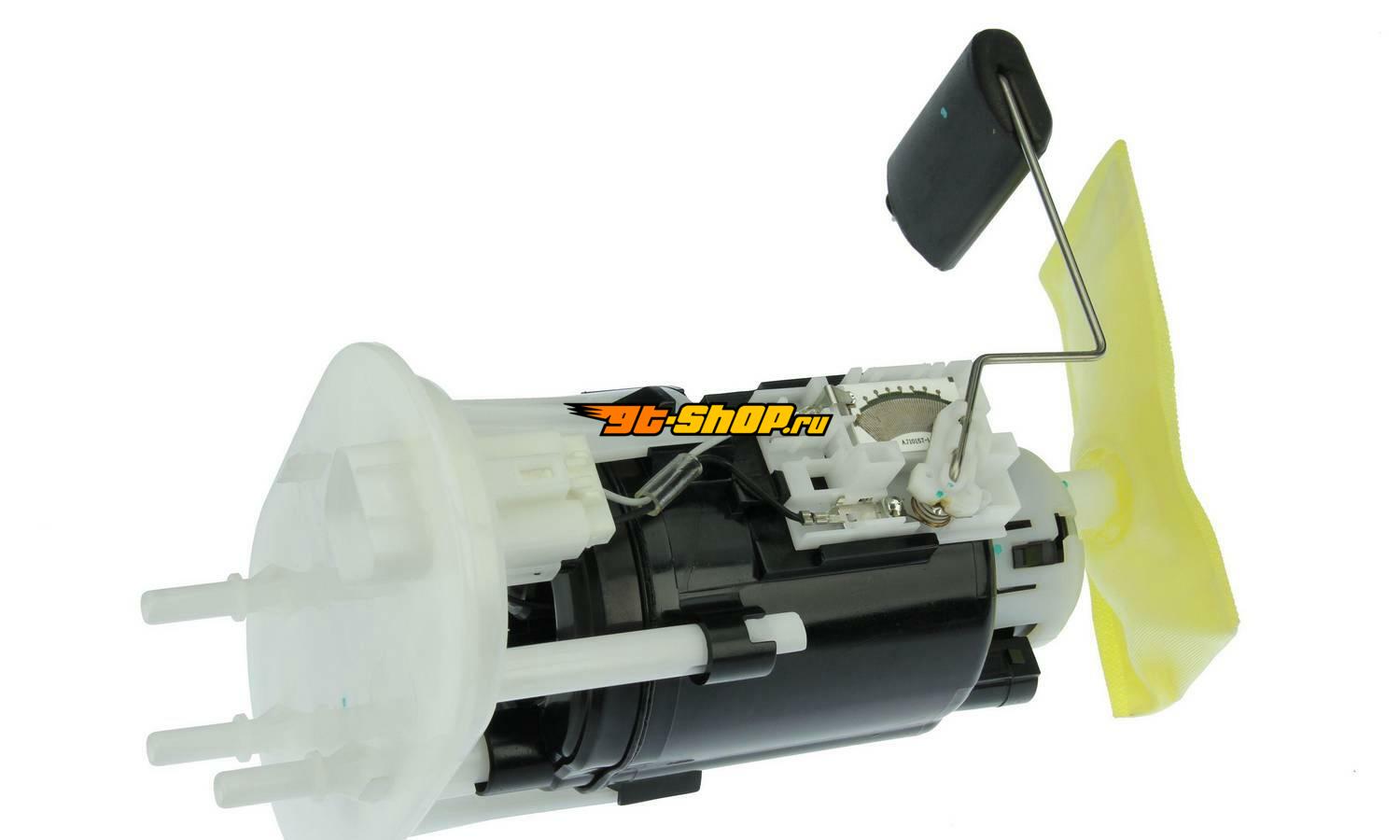

| AUTOTECNICA HY0516568 Specifications |
|---|
| Amperage (A) | 5.7 A |
| Average Current Draw | 5.7 |
| Average Flow Rating | 35.6 GP |
| Bracket Included | Yes |
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | TRIANGULAR |
| Electric Or Mechanical | Electric |
| Fill Vapor Valve Included | No |
| Flow Rate (gph) | 35.6 GP |
| Flow Rate (lph) | 136 lp |
| Flow Restriction Pressure (psi) | NA |
| Fuel Filter Included | No |
| Fuel Level Sensor Assembly Included | Yes |
| Fuel Level Vent Valve (FLVV) Included | No |
| Fuel Pressure Regulator Included | No |
| Fuel Sending Unit Included | Yes |
| Fuel Static Pressure (psi) | NA |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| Gasket Or Seal Material | NBR |
| Grade Type | Regular |
| Hardware Included | Yes |
| Height | 206 MM |
| Housing Length | 150 mm |
| Housing Material | POM |
| Housing Width | 95 mm |
| In Tank or External | In Tank |
| In-Line Pump | No |
| Inlet Attachment Method | HOSE |
| Inlet Diameter (IN) | .31 in |
| Inlet Diameter (MM) | 7.8 MM |
| Inlet Fitting Thread Size | NA |
| Inlet Fitting Type | Hose Fitting |
| Inlet Outside Diameter | 7.8 MM |
| Inlet Quantity | 2 |
| Inlet Thread Diameter | NA |
| Inlet Type | Hose Fitting |
| Internal Or External Strainer | External |
| Intlet Fitting Thread Size | NA |
| Length | 150 |
| Lock Ring Included | Yes |
| Manufacturer | Autotecnica |
| Maximum Flow Rating | 40 GP |
| Maximum Free Flow Rate (gph) | NA |
| Maximum Pressure | NA |
| Maximum Pressure (psi) | NA |
| Minimum Flow Rating | 33 GP |
| Minimum Free Flow Rate | NA |
| Minimum Free Flow Rate (gph) | NA |
| Minimum Pressure | NA |
| Module Included | Yes |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Number of Connectors | 1 |
| Number of Mounting Holes | 0 |
| OE Part/Casting Number | 31110-26755-DS |
| Operating Pressure (psi) | NA |
| Outlet Attachment Method | Hose Fitting |
| Outlet Diameter (IN) | .31 in |
| Outlet Diameter (MM) | 7.8 MM |
| Outlet Fitting Thread Size | NA |
| Outlet Fitting Type | Hose Fitting |
| Outlet Outside Diameter | 7.8 MM |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | NA |
| Outlet Type | Hose Fitting |
| Pump Design | In Tank |
| Pump Type | Electric |
| Regulator Included | No |
| Relief Pressure (psi) | NA |

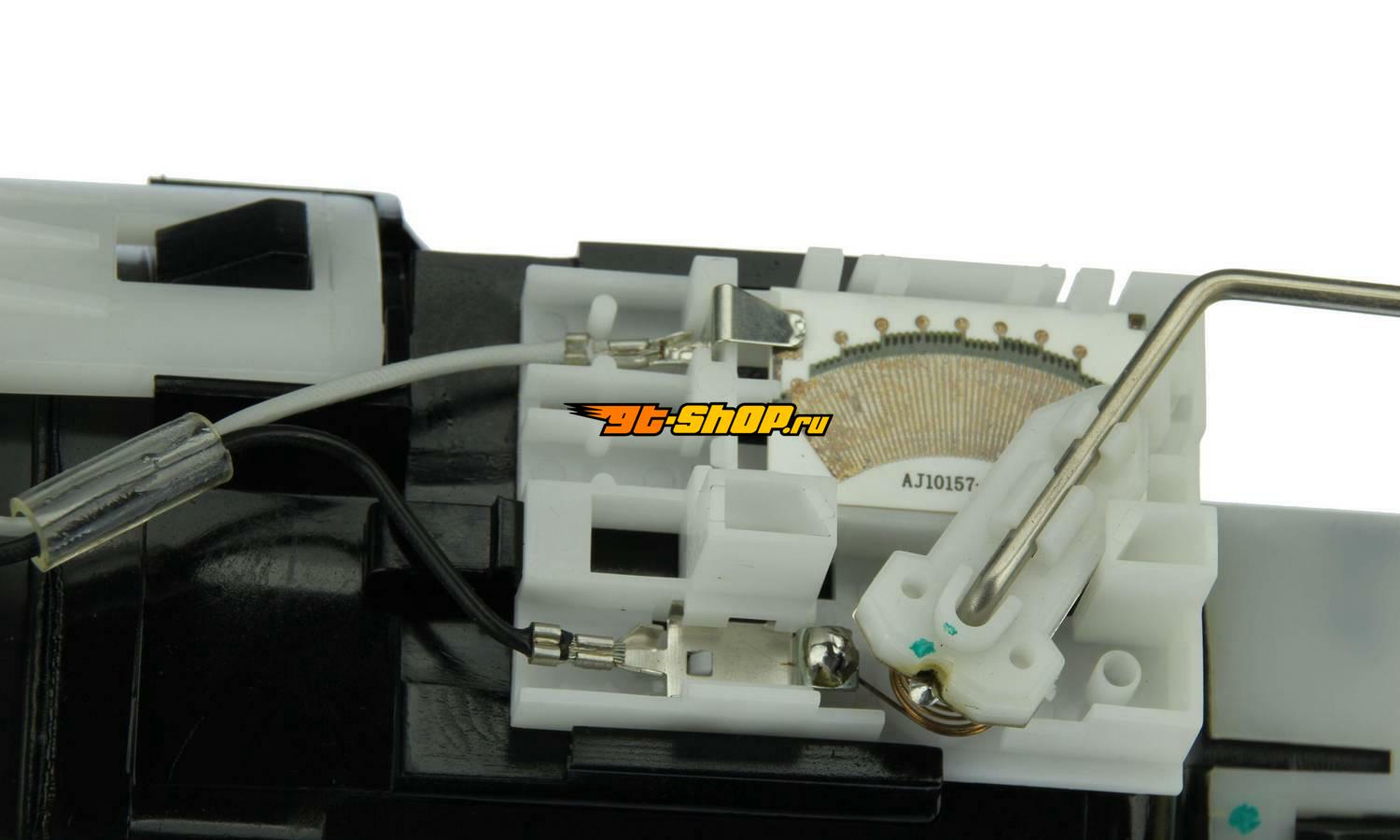

| Resistance Ohms Empty | 121 |
| Resistance Ohms Full | 4.3 |
| Rheostat Range (Ohm) | 121.1 - 4.3 |
| Rollover Valve Included | No |
| Shut Off Pressure (psi) | NA |
| Strainer Included | Yes |
| Strainer Location | External |
| Tank Seal Included | Yes |
| Terminal Gender | Male |

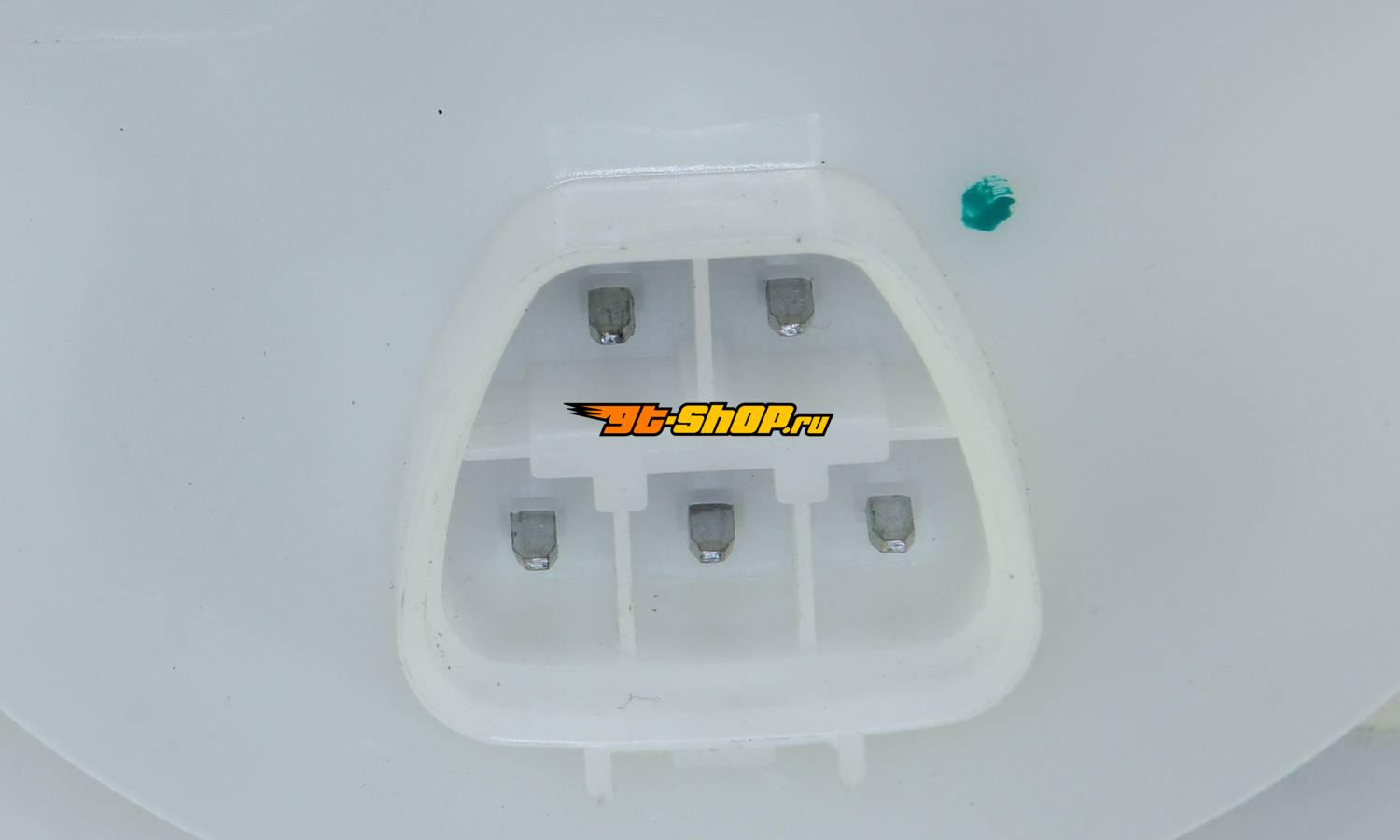

| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Thermistor Low Fuel Indicator Included | No |
| Top Mount Diameter | NA |
| Universal Or Specific Fit | Specific |
| Vapor Pressure Sensor Included | No |
| Vapor Vent Line Included | No |
| Voltage | 12 |
| Width | 95 mm |
| Wire Gauge Measurement | NA |
| Wire Harness Included | No |
| Wire Harness Length | NA |
| Wire Quantity | 0 |
