Оригинал. NATIONAL 510083, Подшипник ступицы колеса, От 7510 Руб.

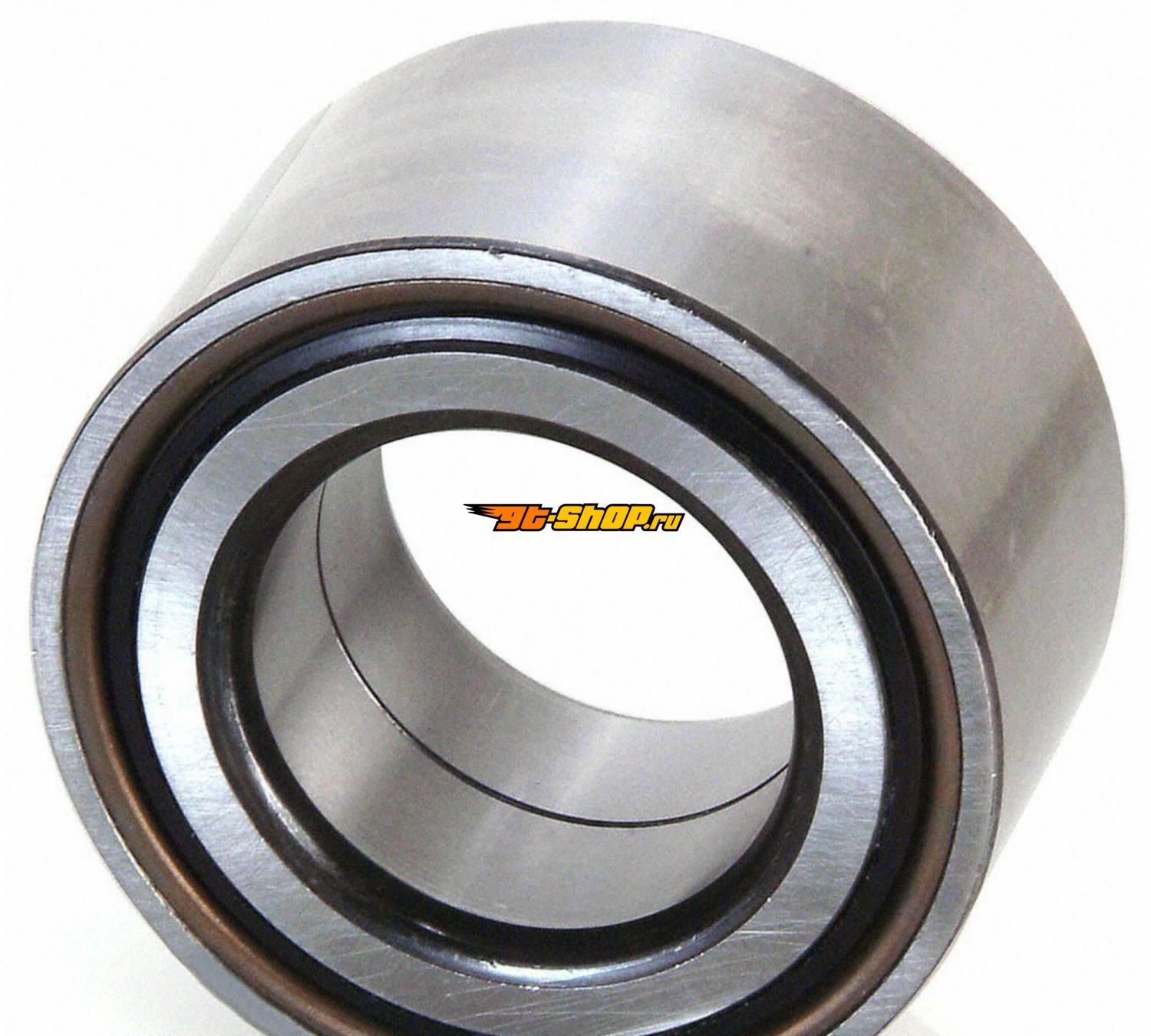

NATIONAL 510083
NATIONAL 510083
Подшипник ступицы колеса
| NATIONAL 510083 Specifications | |
|---|---|
| Bore (Inch) | 1.929 |
| Bore (MM) | 49.000 |
| Design | Double Row Angular Contact |
| Footnote | GEN1 |
| Inner Race Bore (Inch) | 1.929 |
| Inner Race Bore (MM) | 49.000 |
| Inner Race Radius (Inch) | 0.146 |
| Inner Race Radius (MM) | 3.700 |
| Inner Race Width (Inch) | 1.811 |
| Inner Race Width (MM) | 46.000 |
| Outer Race Outside Diameter (Inch) | 3.465 |
| Outer Race Outside Diameter (MM) | 88.000 |
| Outer Race Radius (Inch) | 0.020 |
| Outer Race Radius (MM) | 0.500 |
| Outer Race Width (Inch) | 1.811 |
| Outer race Width (MM) | 46.000 |
| Outside Diameter (Inch) | 3.465 |
| Outside Diameter (MM) | 88.000 |
| Part Description | Wheel Bearing |
| Series | FWDB |
| Type | E-3 |
| Width (inch) | 1.811 |
| Width (MM) | 46.000 |
| Производитель | NATIONAL |
| Оригинальный Номер | 510083 |
| Описание | Подшипник ступицы колеса |
