Оригинал. TRAKMOTIVE AD8138, Приводной вал CV, От 16050 Руб.

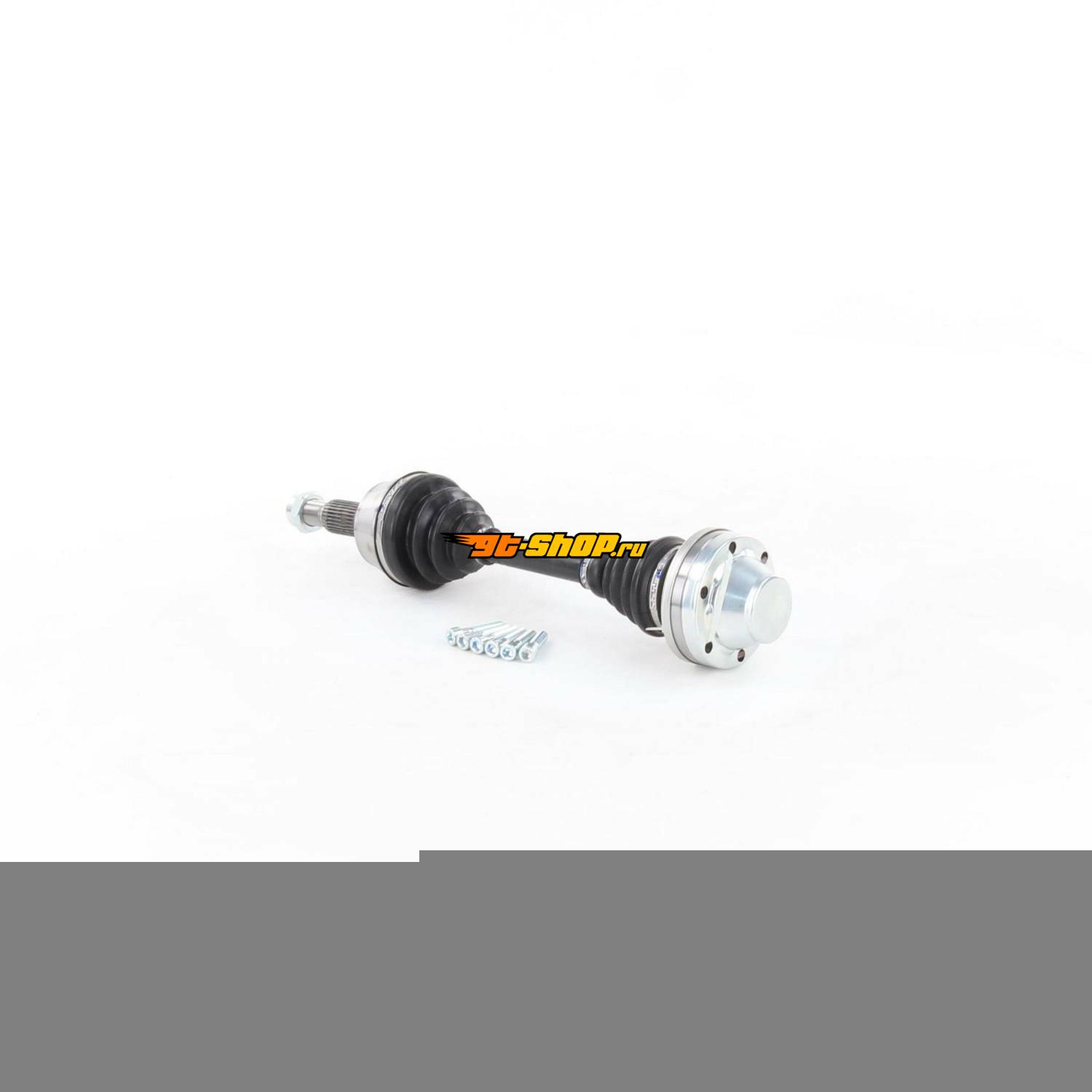

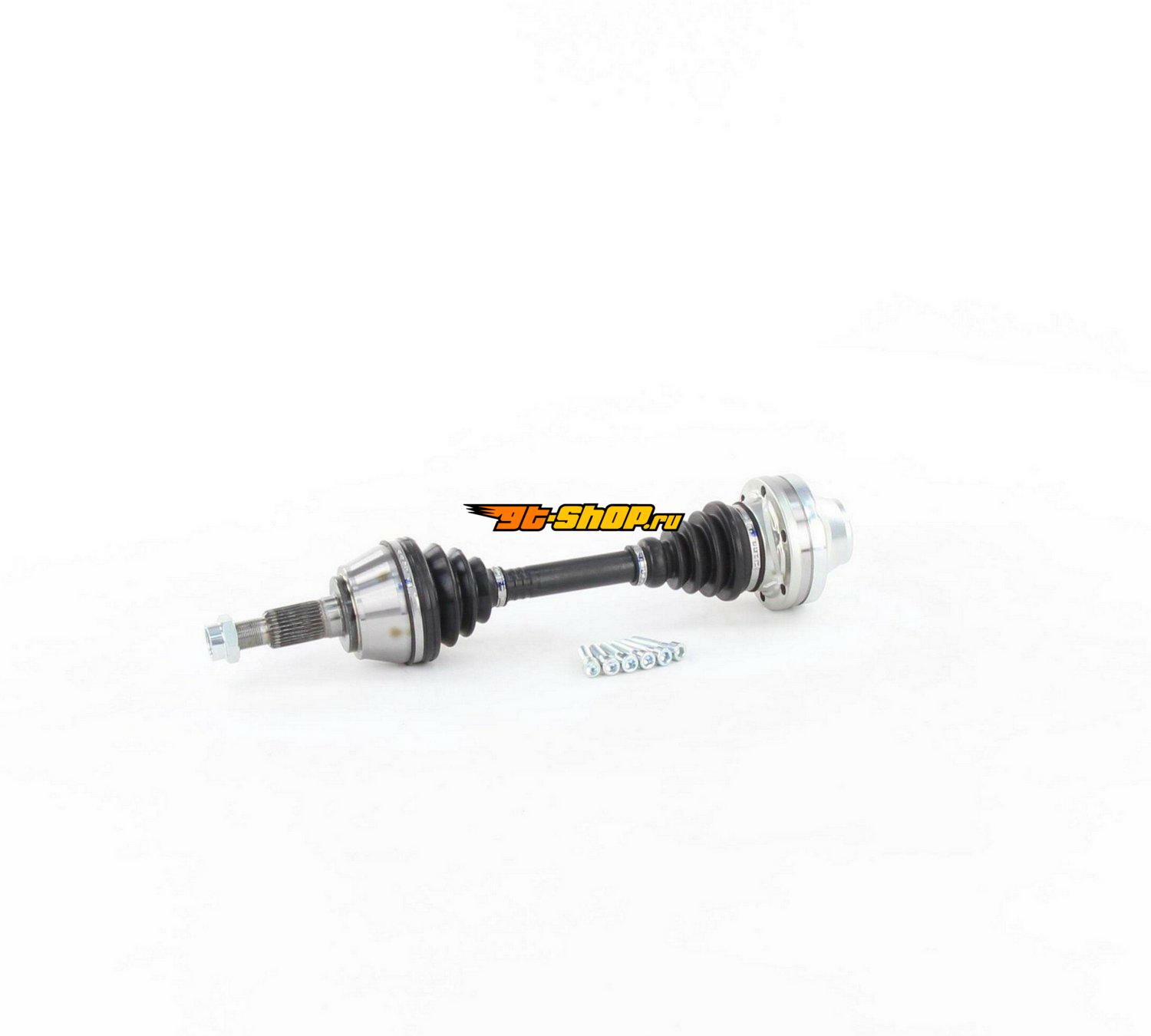

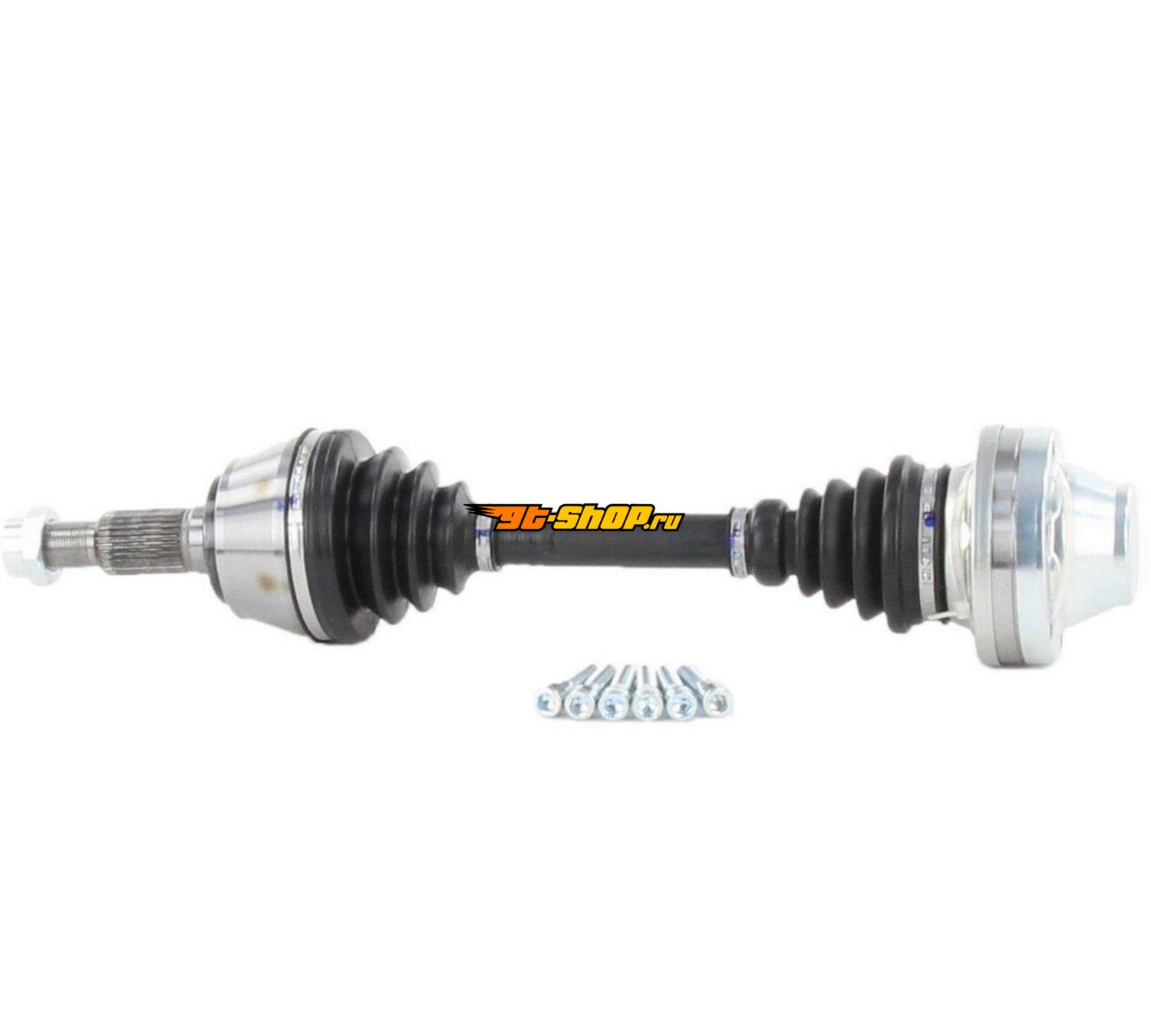

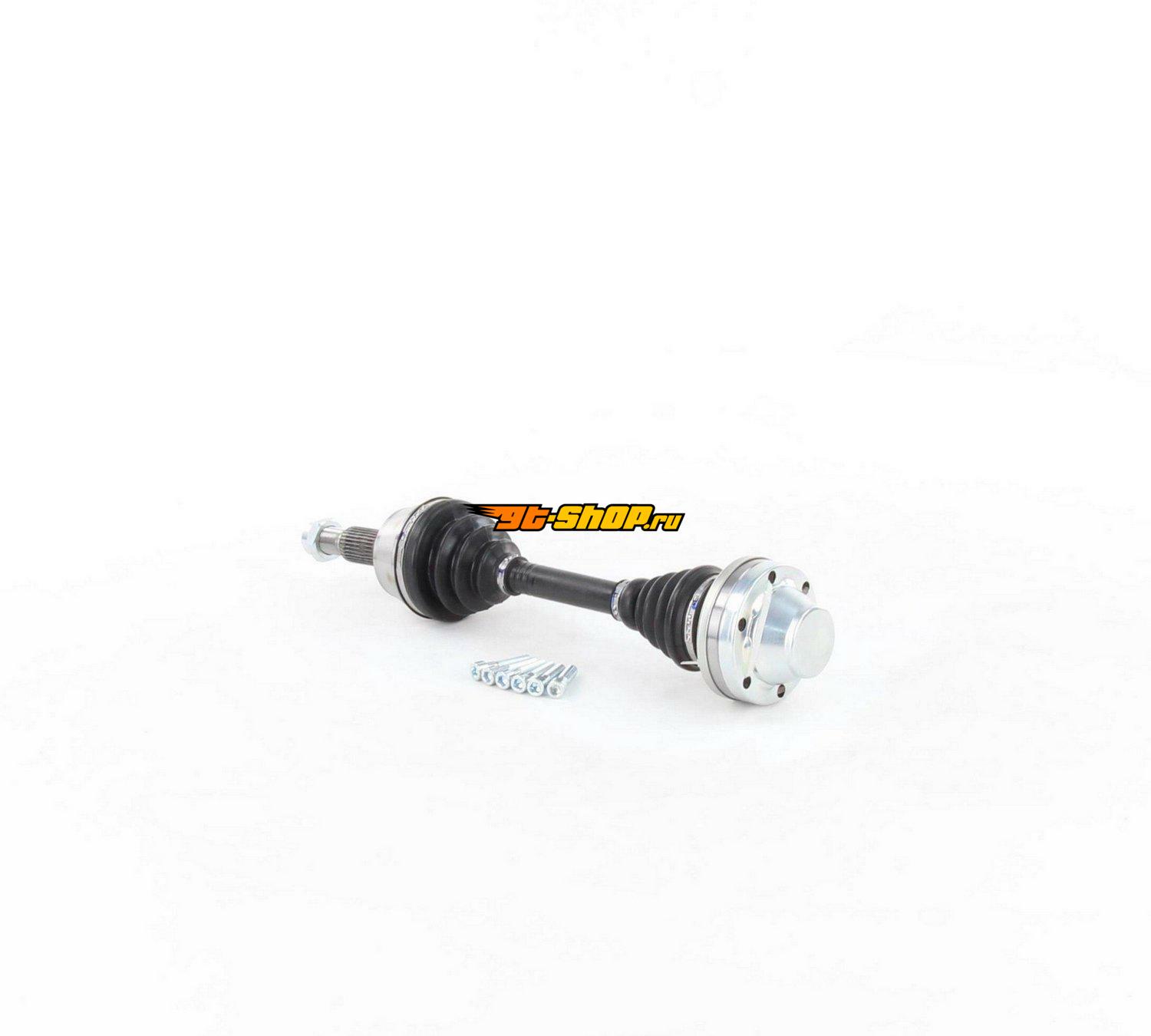

TRAKMOTIVE AD8138
TRAKMOTIVE AD8138
Приводной вал CV
| TRAKMOTIVE AD8138 Specifications | |
|---|---|
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (IN) | 6/7 |
| Axle Nut Height (MM) | 21.5 |
| Axle Nut Hex Size (IN) | 1 3/7 |
| Axle Nut Hex Size (MM) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (IN) | 1 5/8 |
| Axle Nut Length (MM) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (IN) | 1/3 |
| Inboard Bolt Head Size (MM) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (IN) | 2 1/6 |
| Inboard Bolt Length (MM) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (IN) | 20.67 |
| Overall Compressed Length (MM) | 525 |
| Производитель | TRAKMOTIVE |
| Оригинальный Номер | AD8138 |
| Описание | Приводной вал CV |
