Оригинал. TRAKMOTIVE AD8204, Приводной вал CV, От 51100 Руб.
TRAKMOTIVE AD8204
TRAKMOTIVE AD8204

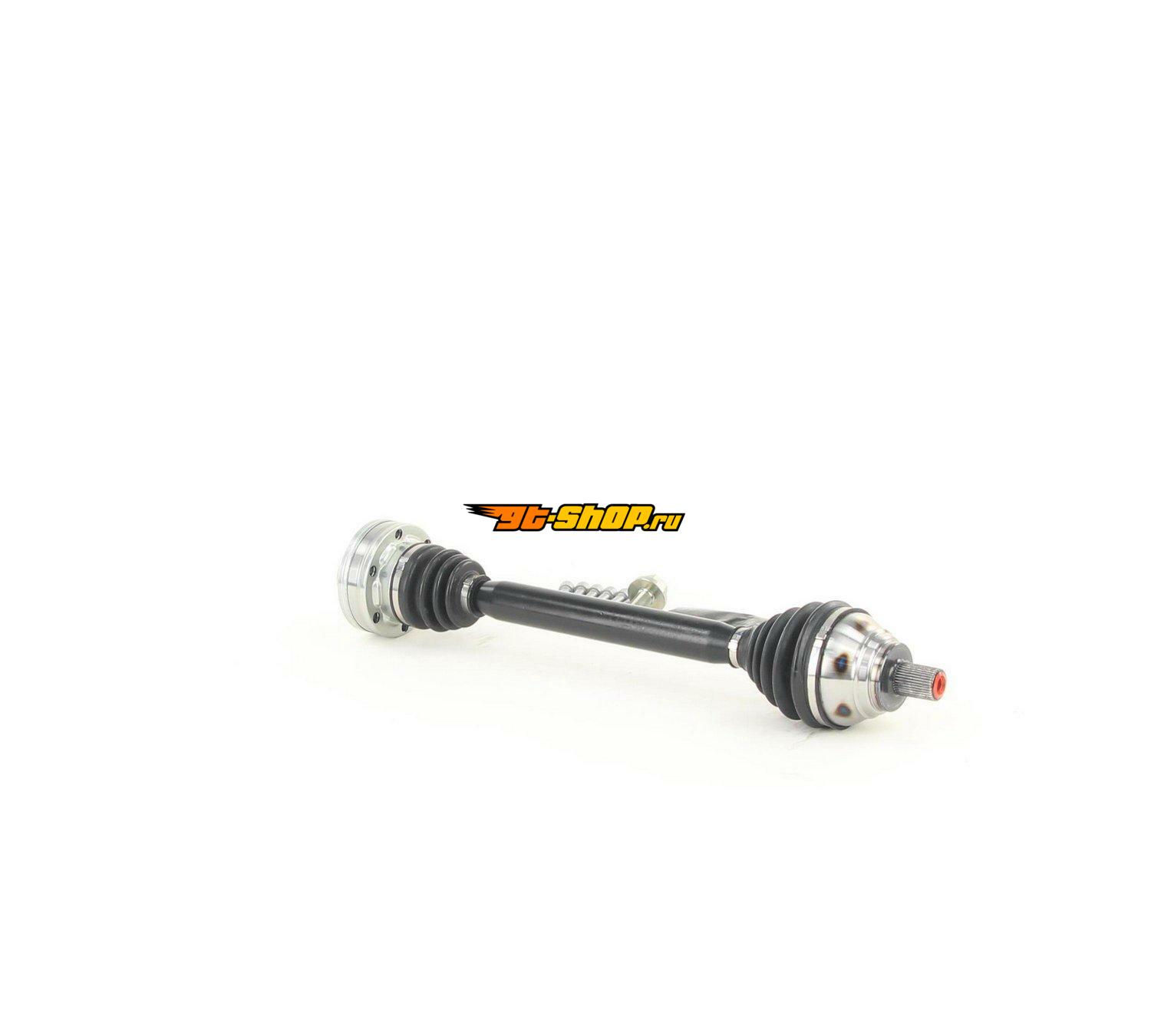

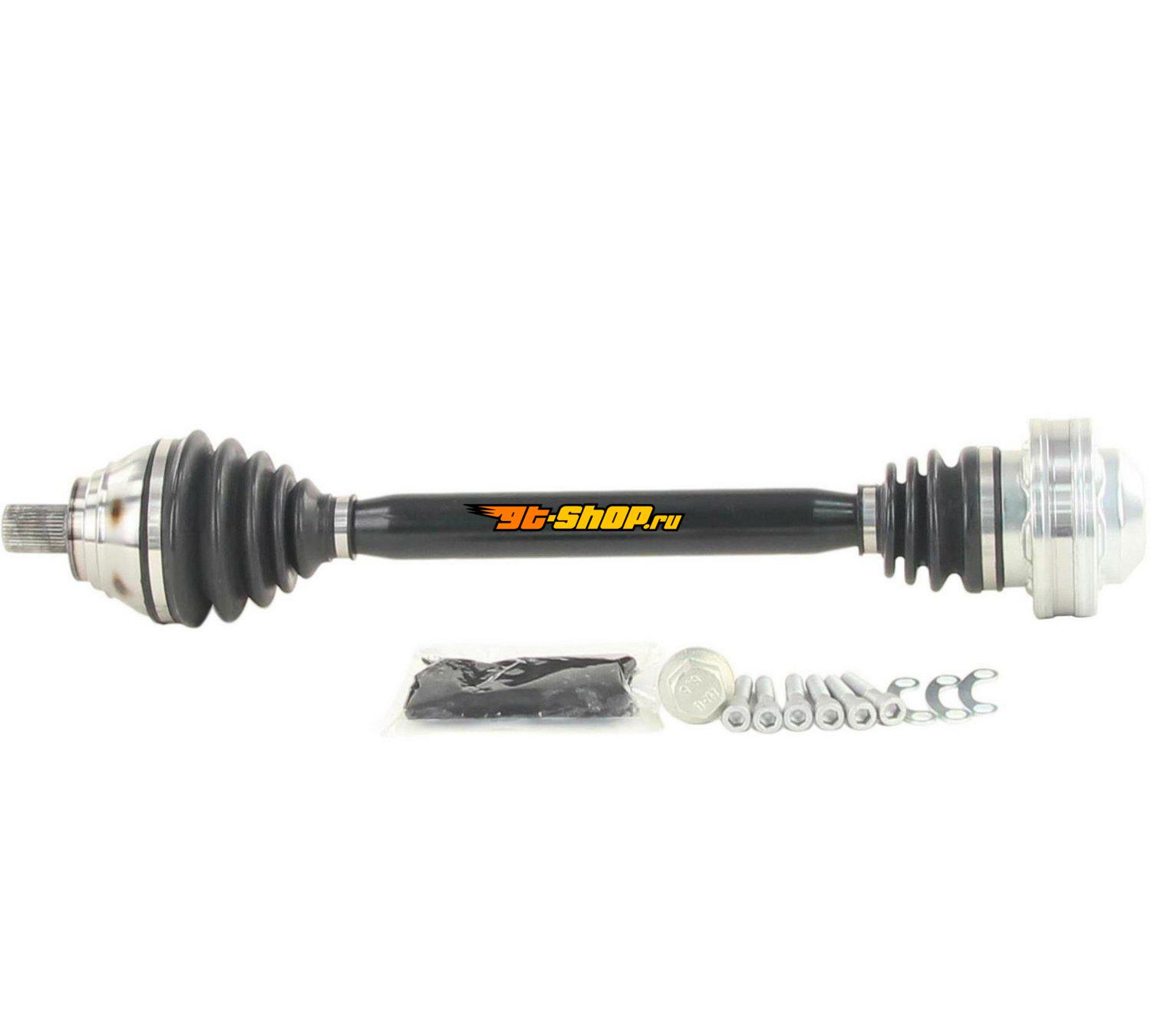

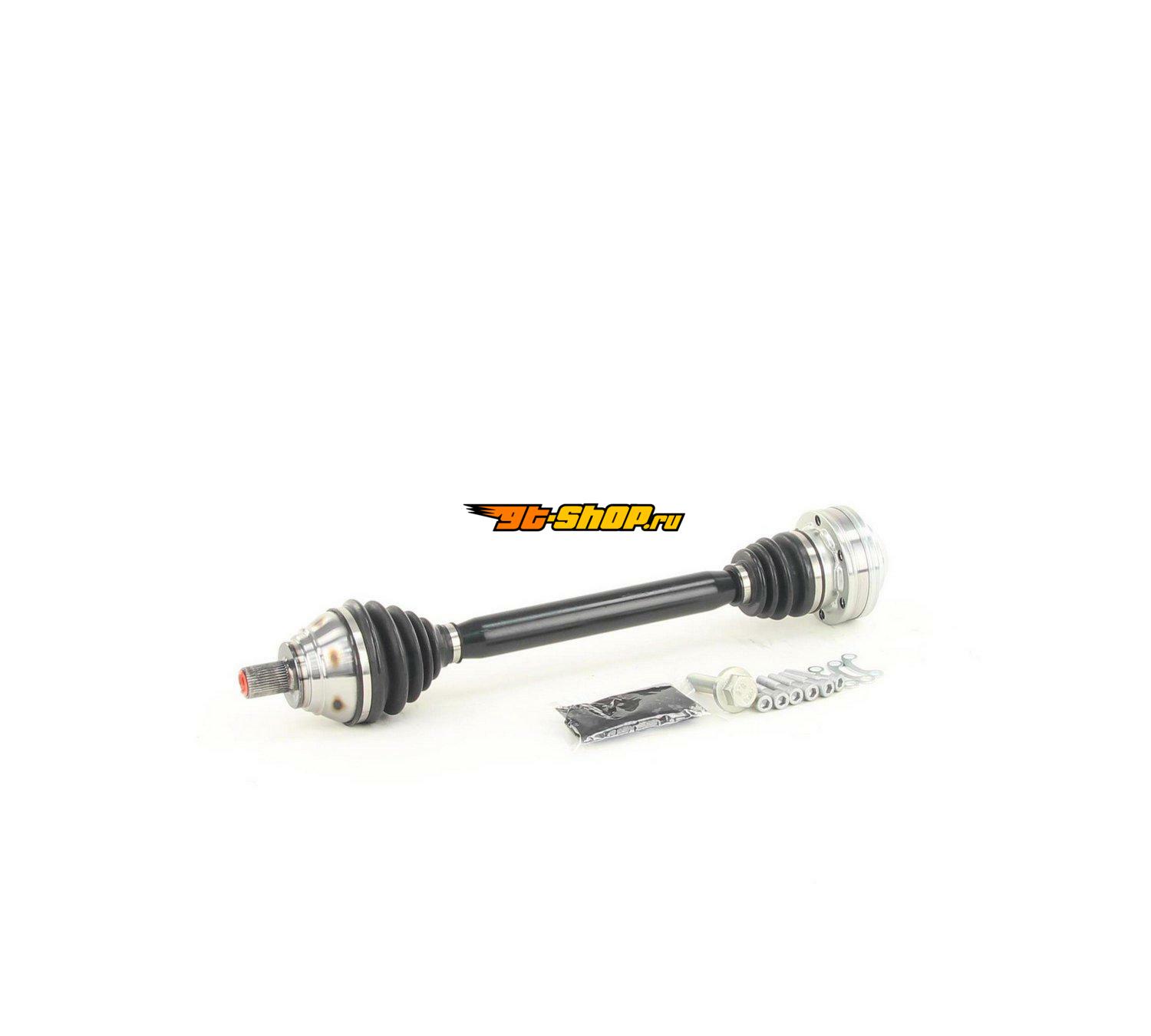

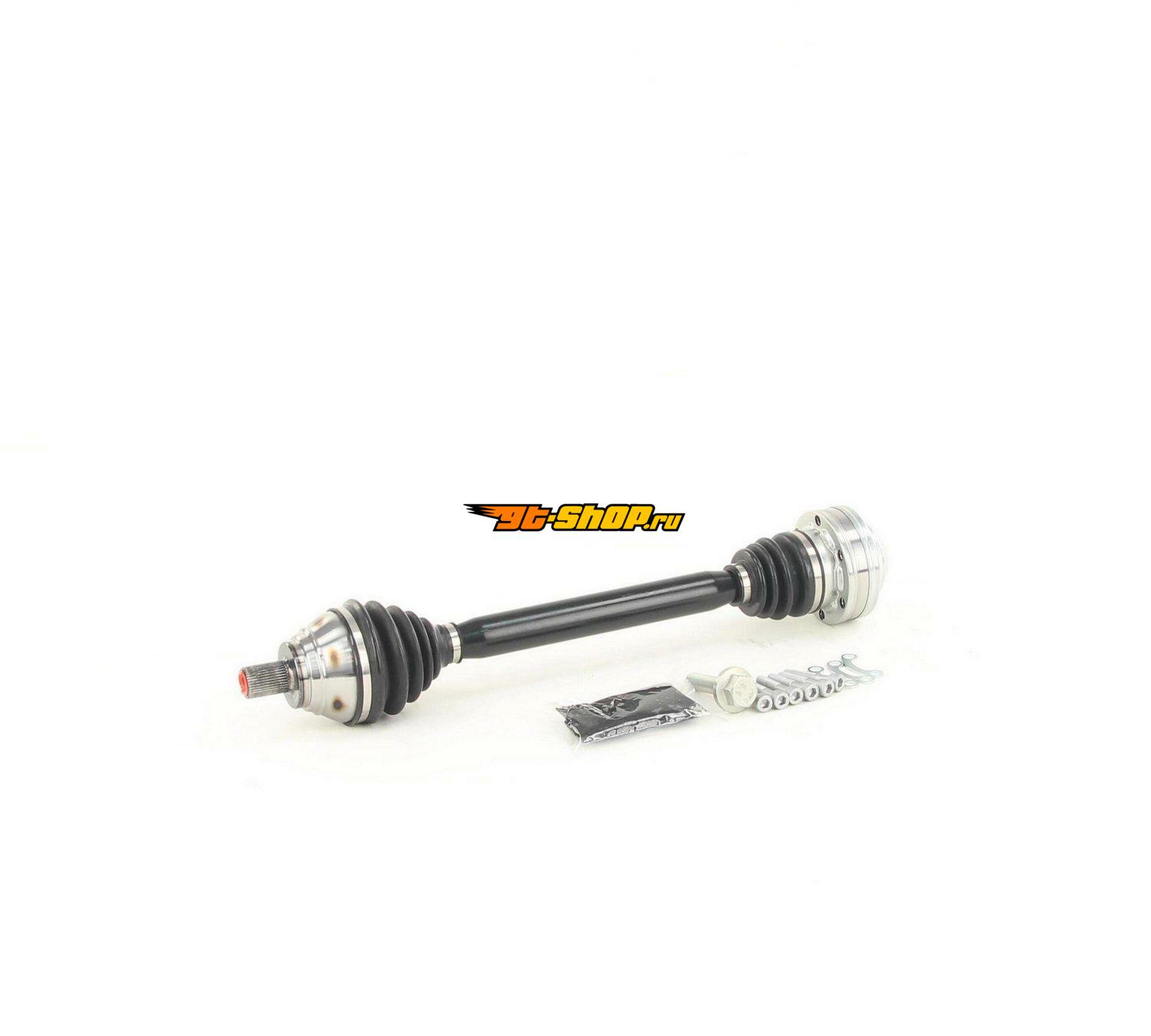

Приводной вал CV
| TRAKMOTIVE AD8204 Specifications | |
|---|---|
| Axle Bolt Hex Size (MM) | 27 |
| Axle Bolt Length (MM) | 86 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (IN) | 5/16 |
| Inboard Bolt Head Size (MM) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (IN) | 2 3/8 |
| Inboard Bolt Length (MM) | 60 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number of Outboard Splines | 36 |
| Outboard Joint Type | Male |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (IN) | 24.17 |
| Overall Compressed Length (MM) | 614 |
| Overall Extended Length (in) | 26.02 |
| Overall Extended Length (mm) | 661 |
| Производитель | TRAKMOTIVE |
| Оригинальный Номер | AD8204 |
| Описание | Приводной вал CV |
