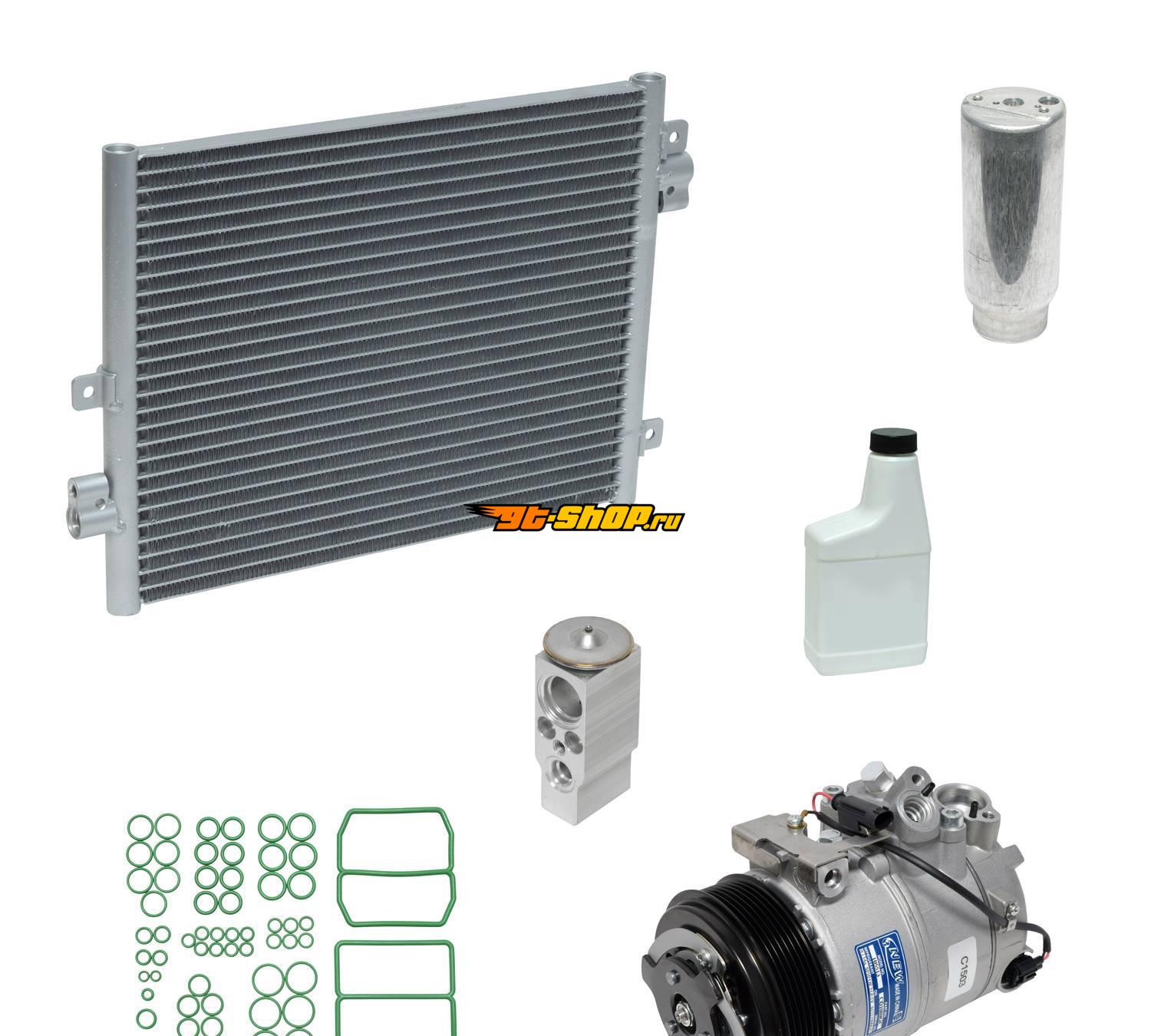

| UAC KT1073A Specifications |
|---|
| [A/C Compressor] - Control Valve (Y/ N) | Y |
| [A/C Compressor] - Discharge Port (MM) | 15.5 |
| [A/C Compressor] - Gauge Line (MM) | 38 |
| [A/C Compressor] - Grooves | 7 |
| [A/C Compressor] - Pulley Diameter (MM) | 120 |
| [A/C Compressor] - Style | 7SEU17C |
| [A/C Compressor] - Suction Port (MM) | 28 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Mount | tangent |
| [A/C Condenser] - Depth (MM) | 18 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 15 |
| [A/C Expansion Valve] - Liquid Inlet Style | MOR |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 16 |
| [A/C Expansion Valve] - Liquid Outlet Style | MOR |
| [A/C Expansion Valve] - Suction Inlet (MM) | 21 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 20.5 |
| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 60 |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 10 |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 160 |
