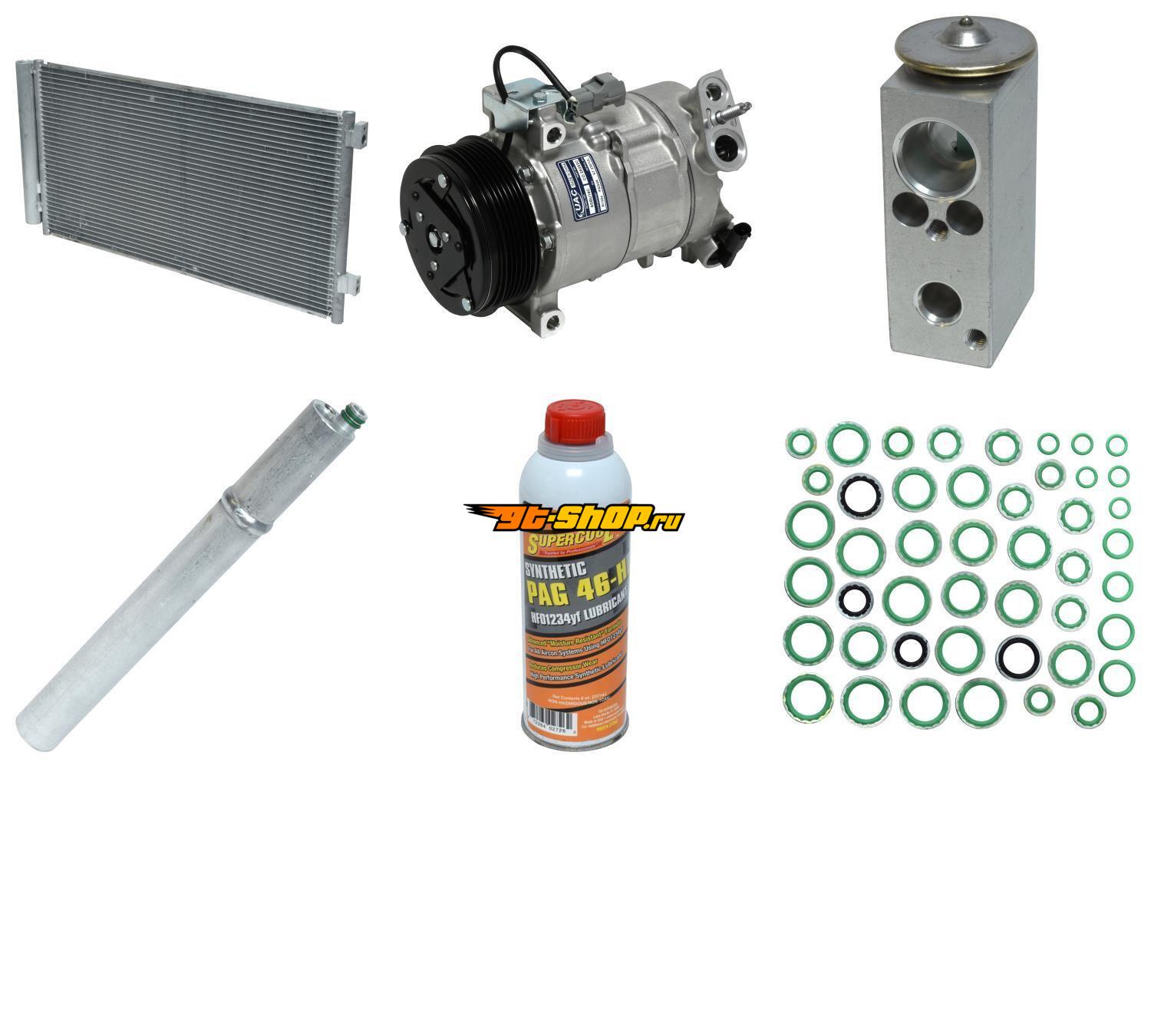

| UAC KT1092A Specifications |
|---|
| [A/C Compressor] - Discharge Port (MM) | 11.70MM |
| [A/C Compressor] - Grooves | PV6 |
| [A/C Compressor] - Mounting Distance (MM) | 38mm |
| [A/C Compressor] - Pulley Diameter (MM) | 110mm |
| [A/C Compressor] - Style | 6SBU14C |
| [A/C Compressor] - Suction Port (MM) | 17.70MM |
| [A/C Compressor] - [A/C Compressor] Type | Wobble Plate |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 354 |
| [A/C Condenser] - Inlet (MM) | 15.5 |
| [A/C Condenser] - Outlet (MM) | 10 |
| [A/C Condenser] - Width (MM) | 642 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 10 |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 16 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 18 |

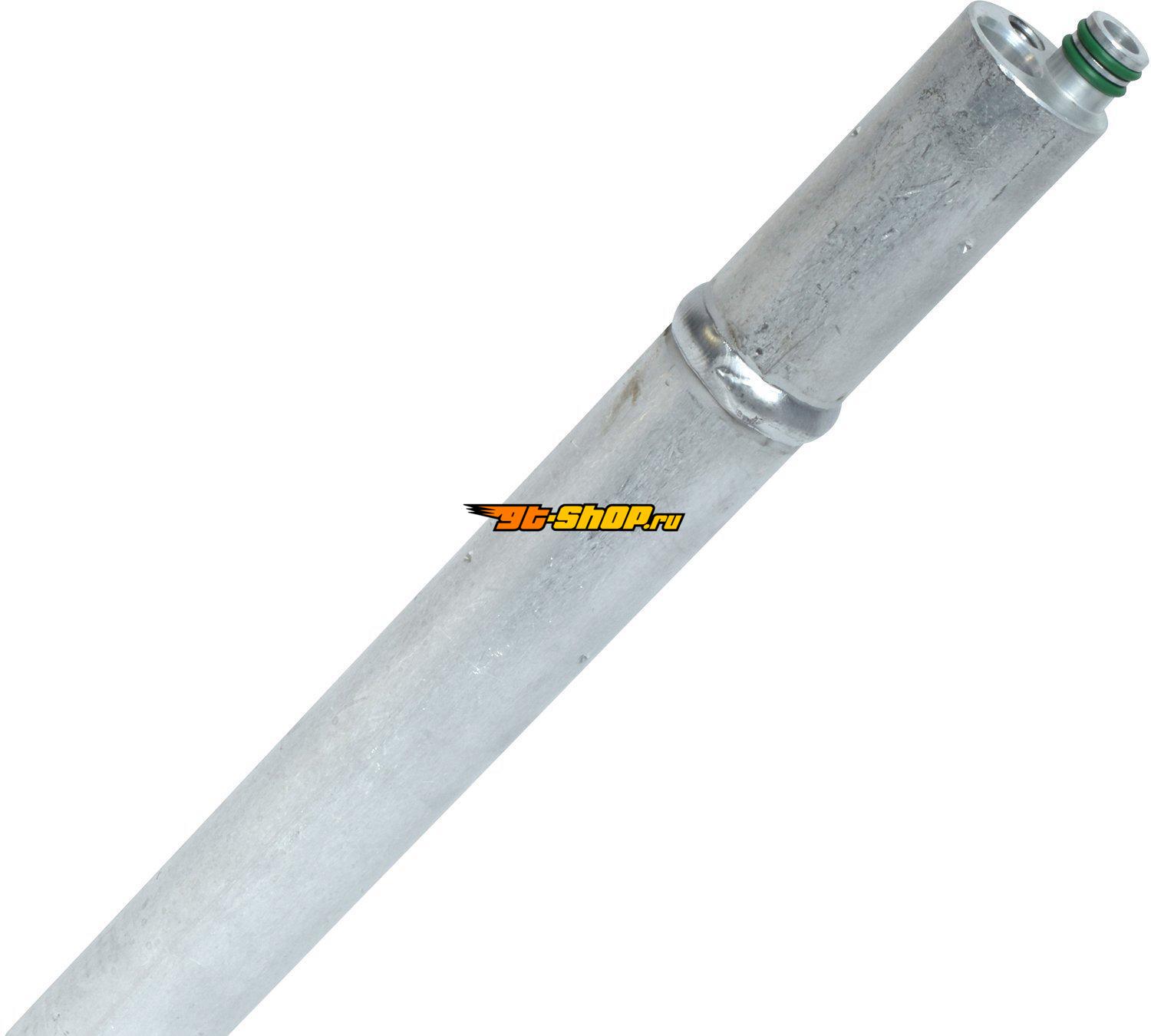

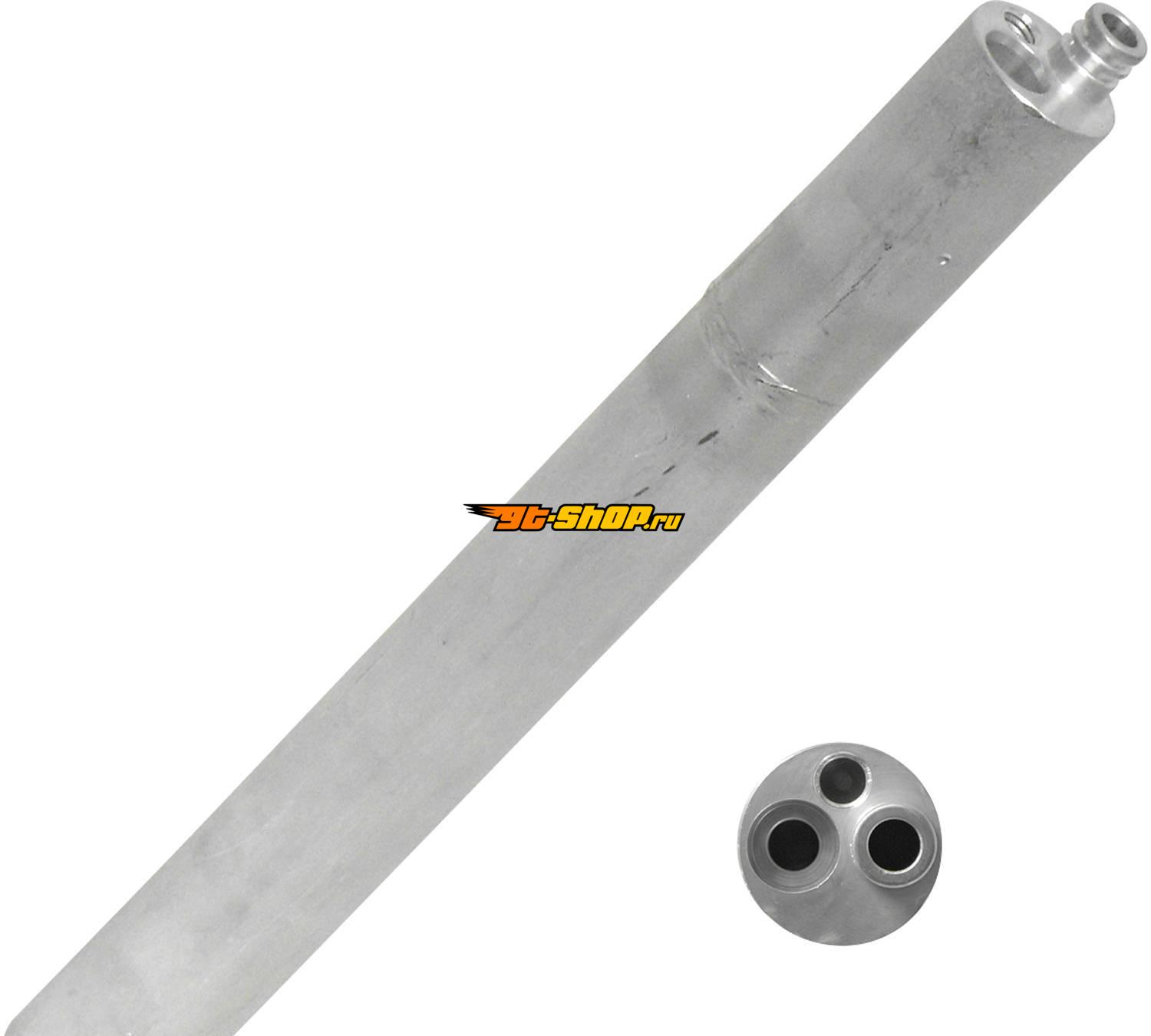

| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 30 |
| [A/C Receiver Drier / Accumulator] - Height (MM) | 268 |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 12 |
| [A/C Refrigerant Oil] - Quantity (oz) | 8 |
| [A/C Refrigerant Oil] - Type | Synthetic 1234yf |
