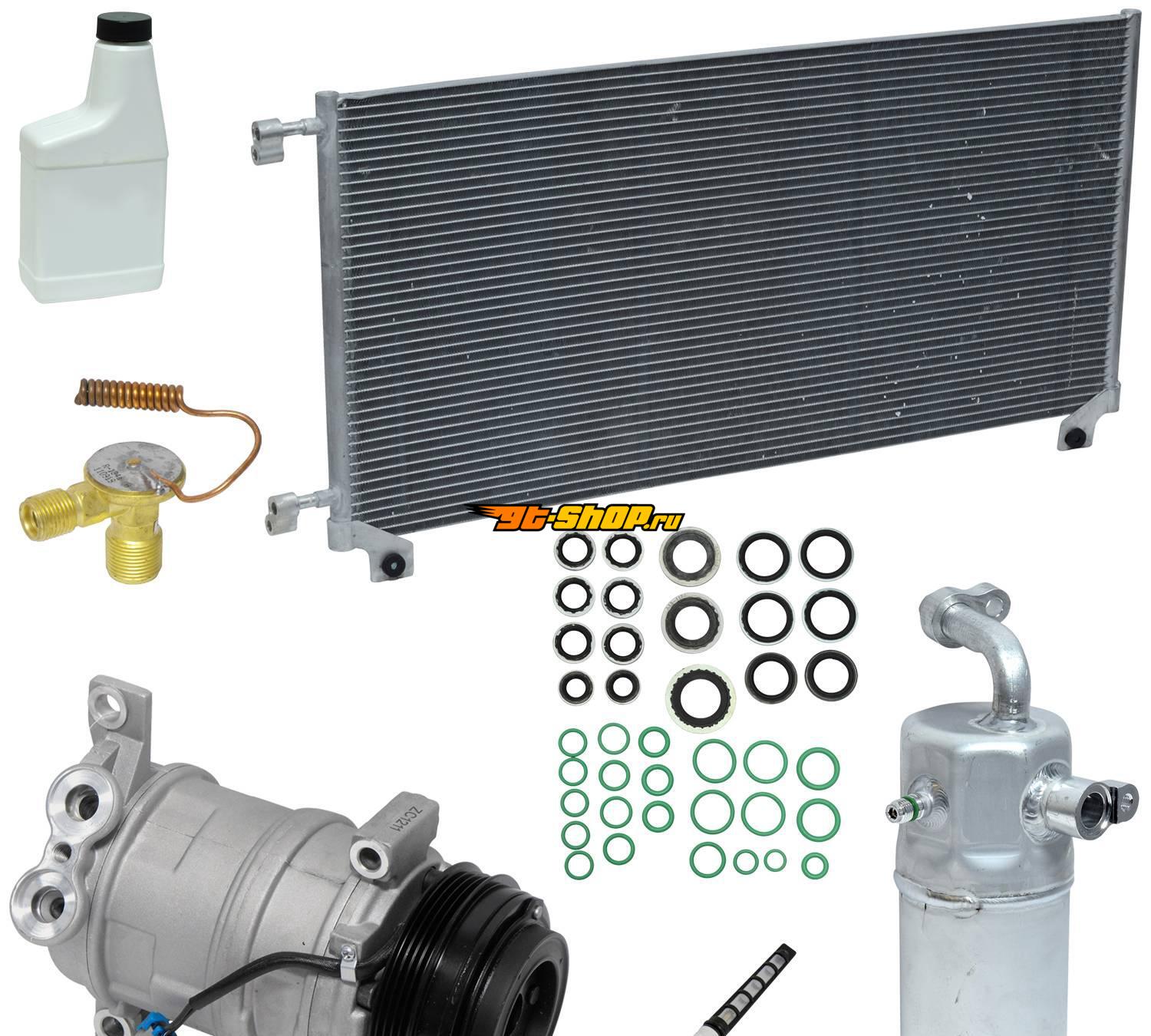

| UAC KT1108A Specifications |
|---|
| [A/C Compressor] - Control Valve (Y/ N) | N |
| [A/C Compressor] - Discharge Port (MM) | 16 |
| [A/C Compressor] - Gauge Line (MM) | 31.5 |
| [A/C Compressor] - Grooves | 4 |
| [A/C Compressor] - Pulley Diameter (MM) | 110 |
| [A/C Compressor] - Style | HU6 |
| [A/C Compressor] - Suction Port (MM) | 16 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Condenser] - Depth (MM) | 18 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 445 |
| [A/C Condenser] - Inlet/ Outlet (MM) | 20 |
| [A/C Condenser] - Width (MM) | 912 |
| [A/C Expansion Valve] - Capillary Length (MM) | 120 |
| [A/C Expansion Valve] - Inlet (MM) | M16 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.45±0.0345 |
| [A/C Expansion Valve] - Outlet (MM) | M20 |
| [A/C Expansion Valve] - Superheat | 3.2 |
| [A/C Orifice Tube] - Orifice Location | In Condenser |
| [A/C Orifice Tube] - Orifice Size | .072" |
| [A/C Orifice Tube] - OrificeColor | Black or Red |
| [A/C Orifice Tube] - OrificeLocation | In Evaporator |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 290 |
