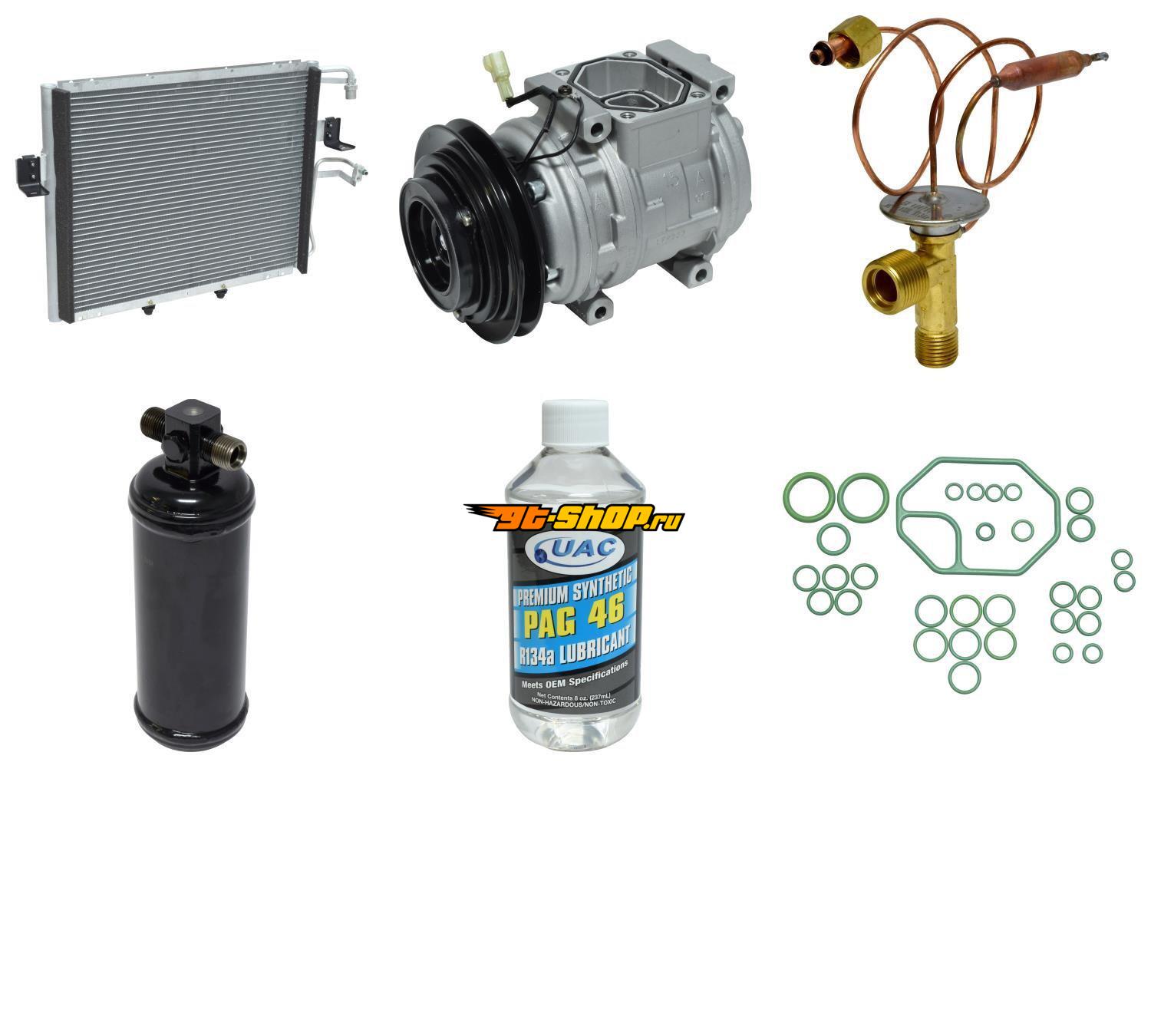

| UAC KT1122A Specifications |
|---|
| [A/C Compressor] - Grooves | 1 |
| [A/C Compressor] - Style | 10PA15C |
| [A/C Compressor] - [A/C Compressor] Mount | Direct |
| [A/C Condenser] - Depth (MM) | 22.23 |
| [A/C Condenser] - Height (MM) | 381 |
| [A/C Condenser] - Outlet Fitting No. | 8 |
| [A/C Condenser] - Width (MM) | 473.08 |
| [A/C Expansion Valve] - Inlet (MM) | M16 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Outlet (MM) | M20 |
| [A/C Expansion Valve] - Superheat | 3.5 |
| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 60 |
| [A/C Receiver Drier / Accumulator] - Fuse Plug (Y/ N) | Yes |
| [A/C Receiver Drier / Accumulator] - Inlet (MM) | 9 |
| [A/C Receiver Drier / Accumulator] - Inlet Size | 8-Mar |
| [A/C Receiver Drier / Accumulator] - Inlet Thread Size | 5/8 - 18 |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 199 |
| [A/C Receiver Drier / Accumulator] - Outlet (MM) | 9 |
| [A/C Receiver Drier / Accumulator] - Outlet Size | 8-Mar |
| [A/C Receiver Drier / Accumulator] - Outlet Thread Size | 5/8 - 18 |
| [A/C Receiver Drier / Accumulator] - Sight Glass (Y/ N) | Yes |
