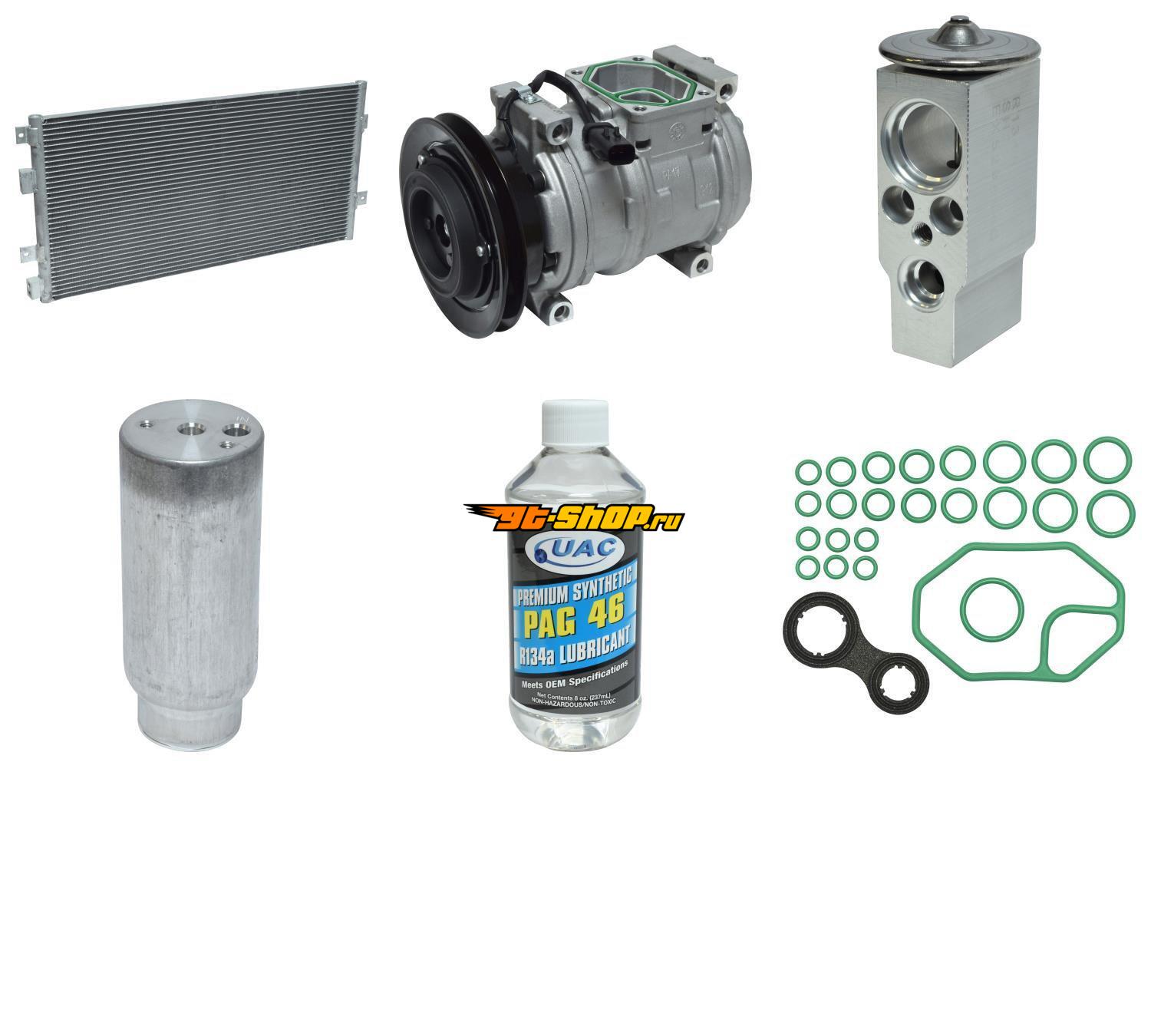

| UAC KT1157A Specifications |
|---|
| [A/C Compressor] - Diode (Y/ N) | Yes |
| [A/C Compressor] - Gauge Line (MM) | 33 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 140 |
| [A/C Compressor] - Style | 10PA17C |
| [A/C Compressor] - Suction Port Diameter (MM) | 16 |
| [A/C Compressor] - [A/C Compressor] Mount | Direct |
| [A/C Condenser] - Core Depth (MM) | 19.05 |
| [A/C Condenser] - Height (MM) | 358.78 |
| [A/C Condenser] - Inlet (MM) | 14.9 |
| [A/C Condenser] - Outlet (MM) | 9.9 |
| [A/C Condenser] - Width (MM) | 727.08 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 15 |
| [A/C Expansion Valve] - Liquid Inlet Style | MOR |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 18 |
| [A/C Expansion Valve] - Liquid Outlet Style | MOR |
| [A/C Expansion Valve] - Suction Inlet (MM) | 24 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 24 |
| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 60 |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 10 |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 150 |
