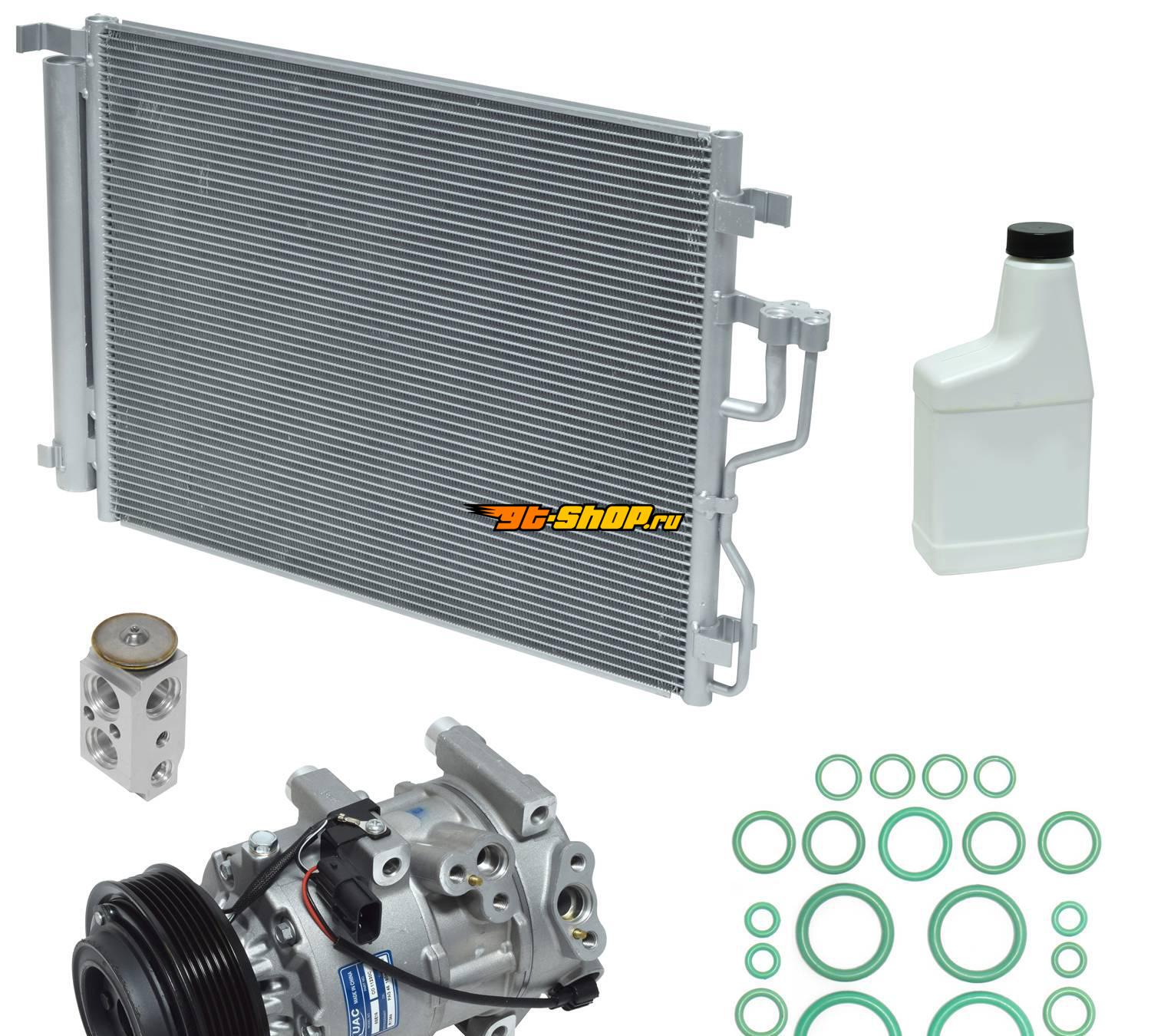

| UAC KT1301B Specifications |
|---|
| [A/C Compressor] - Clocking | 12 |
| [A/C Compressor] - Control Valve (Y/ N) | Yes |
| [A/C Compressor] - Discharge Port (MM) | 17 |
| [A/C Compressor] - Gauge Line (MM) | 86 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 120 |
| [A/C Compressor] - Style | DVE16 |
| [A/C Compressor] - Suction Port (MM) | 19 |
| [A/C Compressor] - Voltage | 12V/PWM |
| [A/C Compressor] - [A/C Compressor] Mount | tangent |
| [A/C Compressor] - [A/C Compressor] Type | DVE16 |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 5 |
| [A/C Condenser] - Height (MM) | 375 |
| [A/C Condenser] - Inlet (MM) | 17 |
| [A/C Condenser] - Outlet (MM) | 12.5 |
| [A/C Condenser] - Width (MM) | 500 |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 16 |
| [A/C Expansion Valve] - Suction Inlet (MM) | 16 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 16 |
| [A/C Expansion Valve] - Superheat | 3 |
| [A/C Expansion Valve] - Tonnage | 2.5 |
