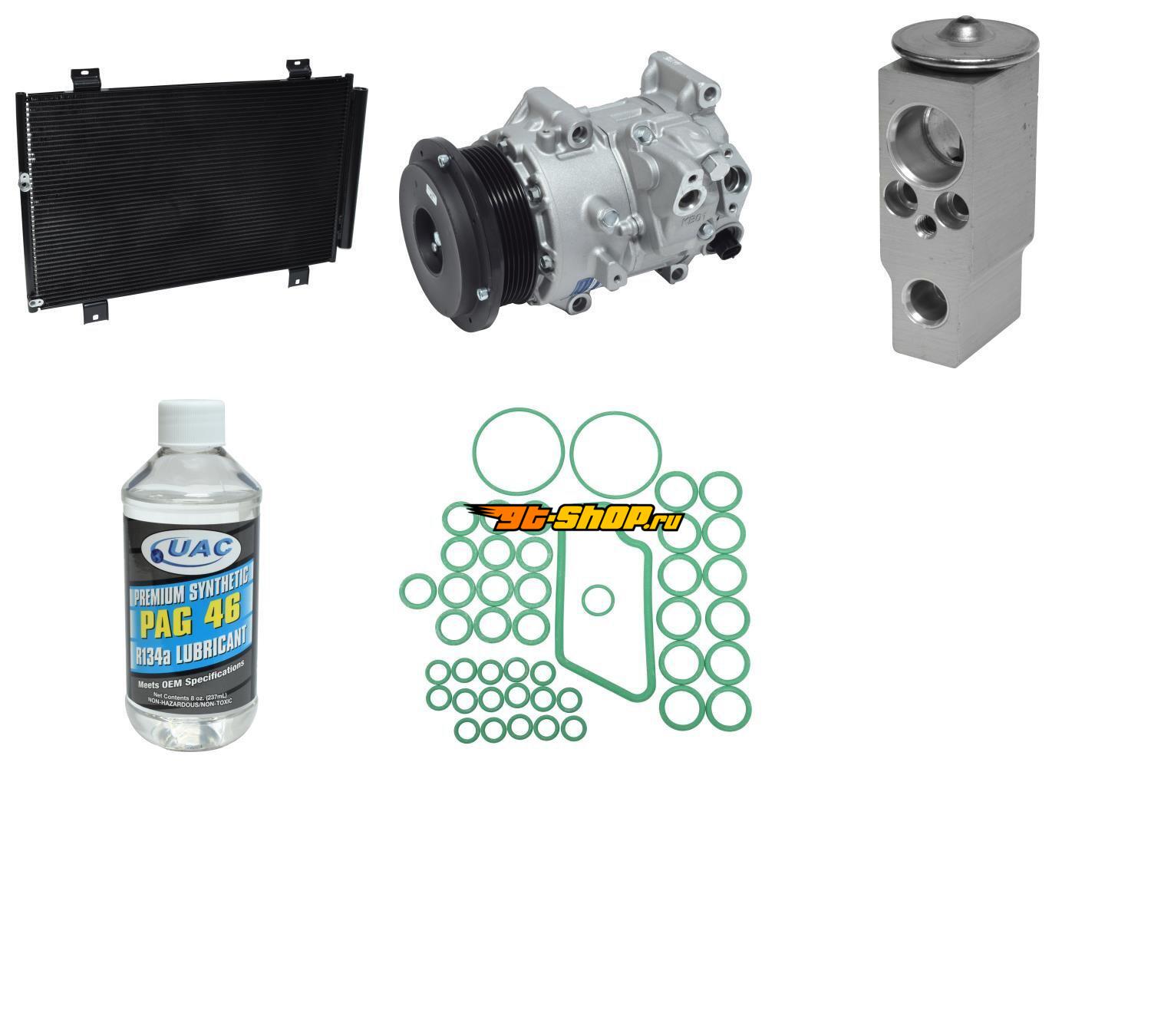

| UAC KT1304A Specifications |
|---|
| [A/C Compressor] - Control Valve (Y/ N) | Y |
| [A/C Compressor] - Discharge Port (MM) | 15 |
| [A/C Compressor] - Gauge Line (MM) | 61 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 109 |
| [A/C Compressor] - Style | 7SEH17C |
| [A/C Compressor] - Suction Port (MM) | 18 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Mount | Direct |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 7 |
| [A/C Condenser] - Height (MM) | 452 |
| [A/C Condenser] - Inlet (MM) | 16 |
| [A/C Condenser] - Outlet (MM) | 10 |
| [A/C Condenser] - Width (MM) | 744 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 10 |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 16 |
| [A/C Expansion Valve] - Suction Inlet (MM) | 18 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 18 |
| [A/C Expansion Valve] - Superheat | 4 |
| [A/C Expansion Valve] - Tonnage | 1 |
