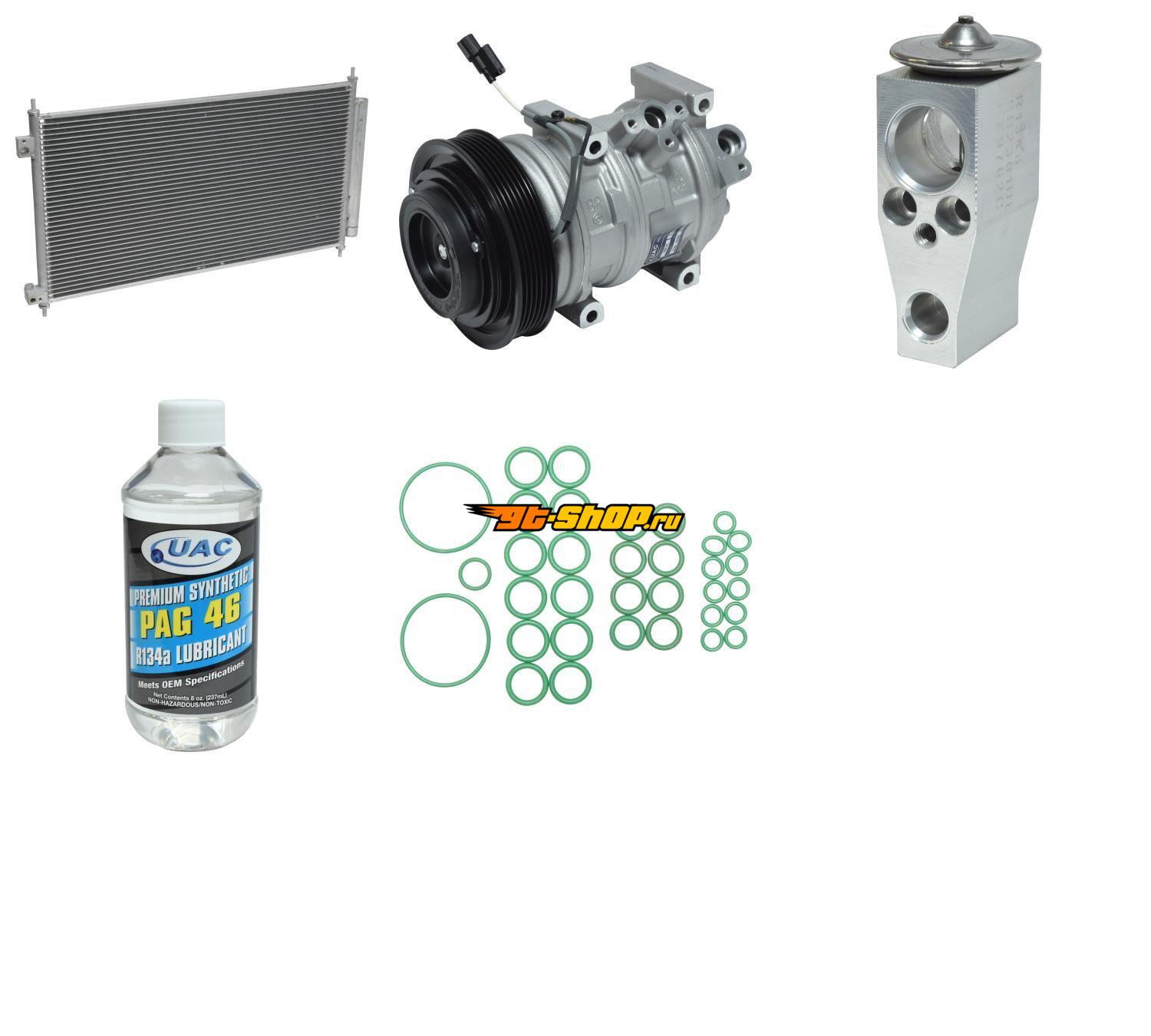

| UAC KT1377A Specifications |
|---|
| [A/C Compressor] - Clocking | 12 |
| [A/C Compressor] - Control Valve (Y/ N) | No |
| [A/C Compressor] - Discharge Port (MM) | 15.5 |
| [A/C Compressor] - Grooves | PV6 |
| [A/C Compressor] - Mounting Distance (MM) | 61.1 |
| [A/C Compressor] - Pulley Diameter (MM) | 135 |
| [A/C Compressor] - Style | 10SR15C |
| [A/C Compressor] - Suction Port (MM) | 18.3 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Type | Piston |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 377 |
| [A/C Condenser] - Inlet (MM) | 15 |
| [A/C Condenser] - Outlet (MM) | 10 |
| [A/C Condenser] - Width (MM) | 377 |
| [A/C Expansion Valve] - LIQUID OUTLET | 15mm |
| [A/C Expansion Valve] - Liquid Inlet | 10mm |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.05 |
| [A/C Expansion Valve] - SUCTION INLET | 18mm |
| [A/C Expansion Valve] - SUCTION OUTLET | 18mm |
| [A/C Expansion Valve] - Superheat | -6 |
| [A/C Expansion Valve] - Tonnage | 1.5 |
