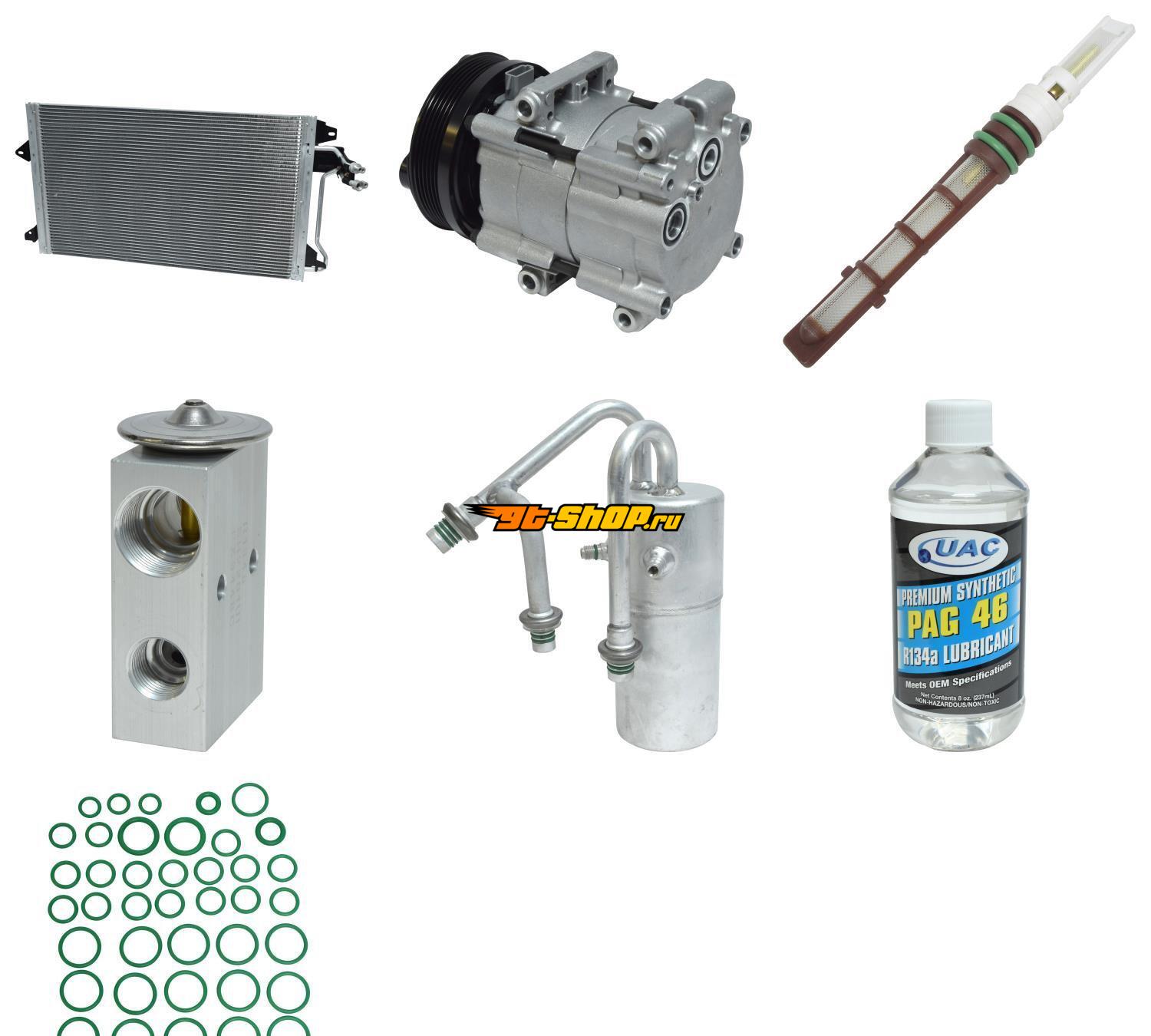

| UAC KT1470A Specifications |
|---|
| [A/C Compressor] - Belt Width (MM) | 22 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 127 |
| [A/C Compressor] - Style | Fs10 |
| [A/C Compressor] - [A/C Compressor] Mount | tangent |
| [A/C Condenser] - Gauge Line (MM) | 22 |
| [A/C Condenser] - Gauge Line (MM) | 20 |
| [A/C Condenser] - Outlet (MM) | 11 |
| [A/C Expansion Valve] - Liquid Inlet (MM) | 15 |
| [A/C Expansion Valve] - Liquid Outlet (MM) | 18 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Suction Inlet (MM) | 21 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 21 |
| [A/C Orifice Tube] - Orifice Color | Red |
| [A/C Orifice Tube] - Orifice Size (IN) | .062 |
| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 89 |
| [A/C Receiver Drier / Accumulator] - Inlet Type | Springlock |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 20 |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 220 |
