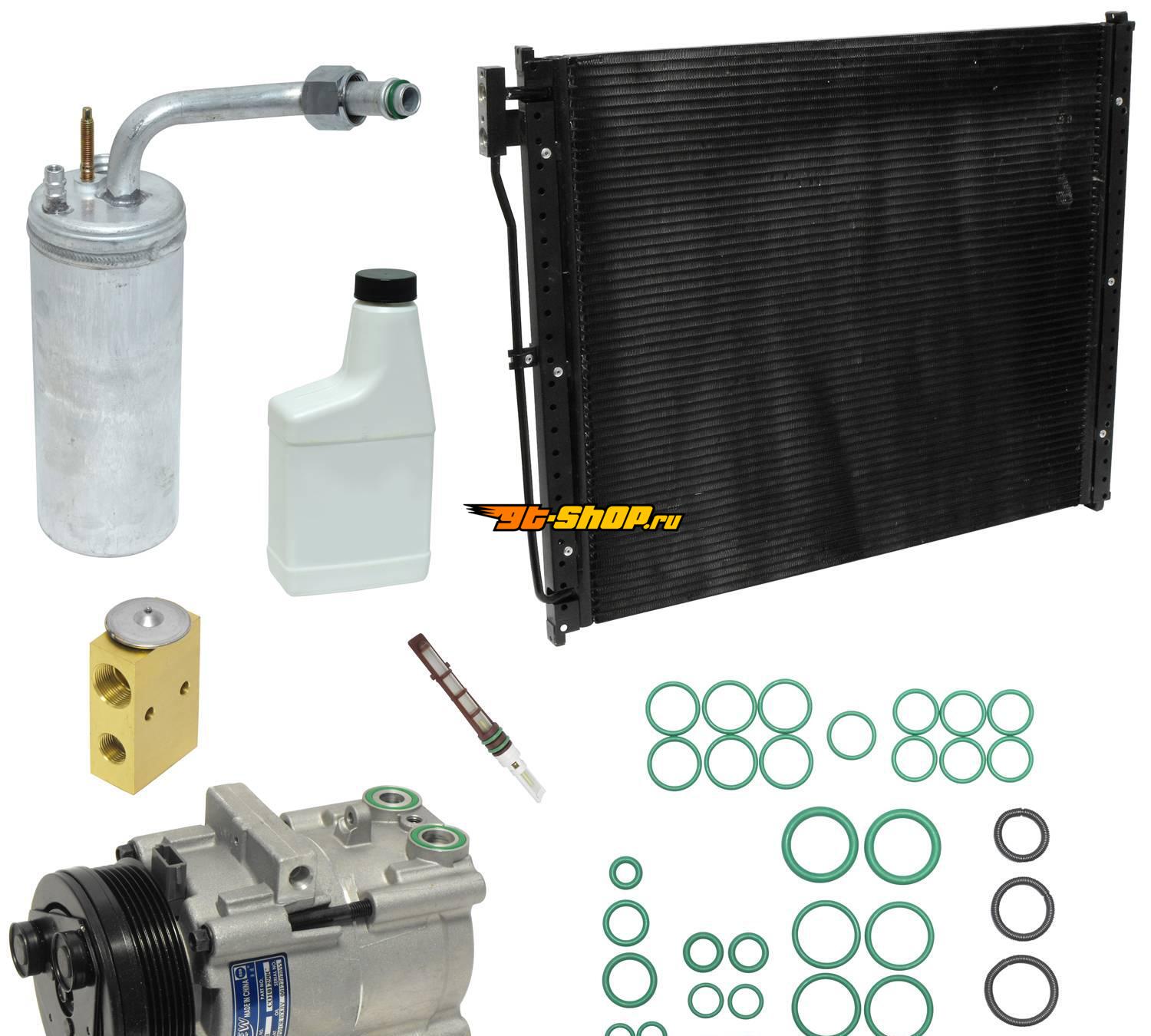

| UAC KT1559A Specifications |
|---|
| [A/C Compressor] - Belt Width (MM) | 22 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 115 |
| [A/C Compressor] - Style | Fs10 |
| [A/C Compressor] - Suction Port Diameter (MM) | 17 |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 552 |
| [A/C Condenser] - Inlet/ Outlet (MM) | 21 |
| [A/C Condenser] - Width (MM) | 700 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Suction Outlet (MM) | 22 |
| [A/C Expansion Valve] - Superheat | 5 |
| [A/C Orifice Tube] - Orifice Color | Red |
| [A/C Orifice Tube] - Orifice Size (IN) | .062 |
| [A/C Receiver Drier / Accumulator] - Height (MM) | 246 |
| [A/C Receiver Drier / Accumulator] - Inlet (MM) | 17.5 |
| [A/C Receiver Drier / Accumulator] - Outlet (MM) | 27 |
| [A/C Receiver Drier / Accumulator] - Sight Glass (Y/ N) | N |
| [A/C Receiver Drier / Accumulator] - Width (MM) | 89 |
