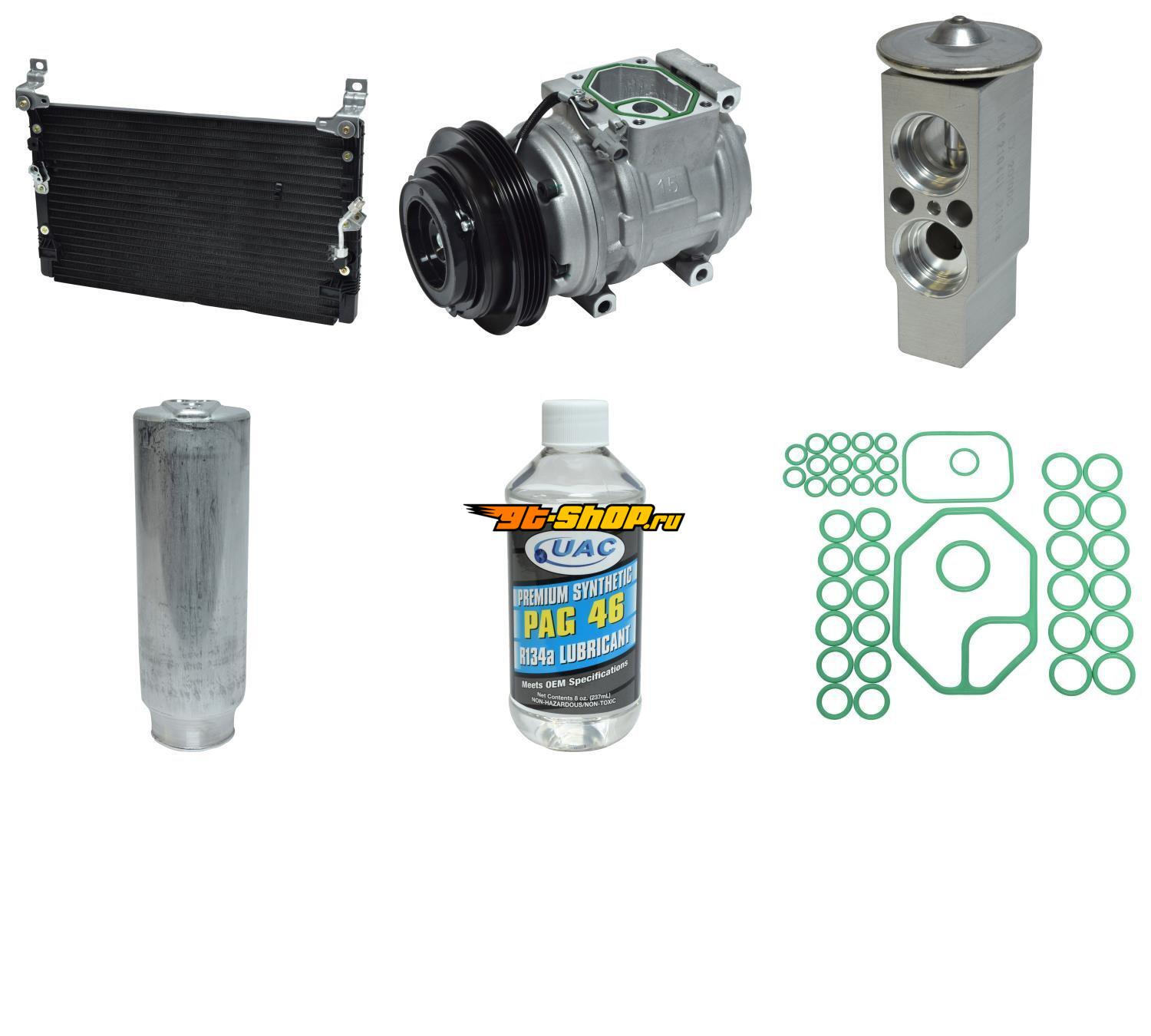

| UAC KT1688B Specifications |
|---|
| [A/C Compressor] - Control Valve (Y/ N) | N |
| [A/C Compressor] - Gauge Line (MM) | 69 |
| [A/C Compressor] - Grooves | 4 |
| [A/C Compressor] - Pulley Diameter (MM) | 135 |
| [A/C Compressor] - Style | 10PA15L |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Mount | Boss |
| [A/C Condenser] - Depth (MM) | 22.23 |
| [A/C Condenser] - Height (MM) | 344.49 |
| [A/C Condenser] - Inlet (MM) | 15.3 |
| [A/C Condenser] - Outlet (MM) | 10.1 |
| [A/C Condenser] - Width (MM) | 622.3 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Refrigerant | R134a |
| [A/C Expansion Valve] - Superheat | 4 |
| [A/C Receiver Drier / Accumulator] - Diameter (MM) | 60 |
| [A/C Receiver Drier / Accumulator] - Inlet/ Outlet (MM) | 10 |
| [A/C Receiver Drier / Accumulator] - Length (MM) | 185 |
| [A/C Receiver Drier / Accumulator] - Sight Glass (Y/ N) | Yes |
