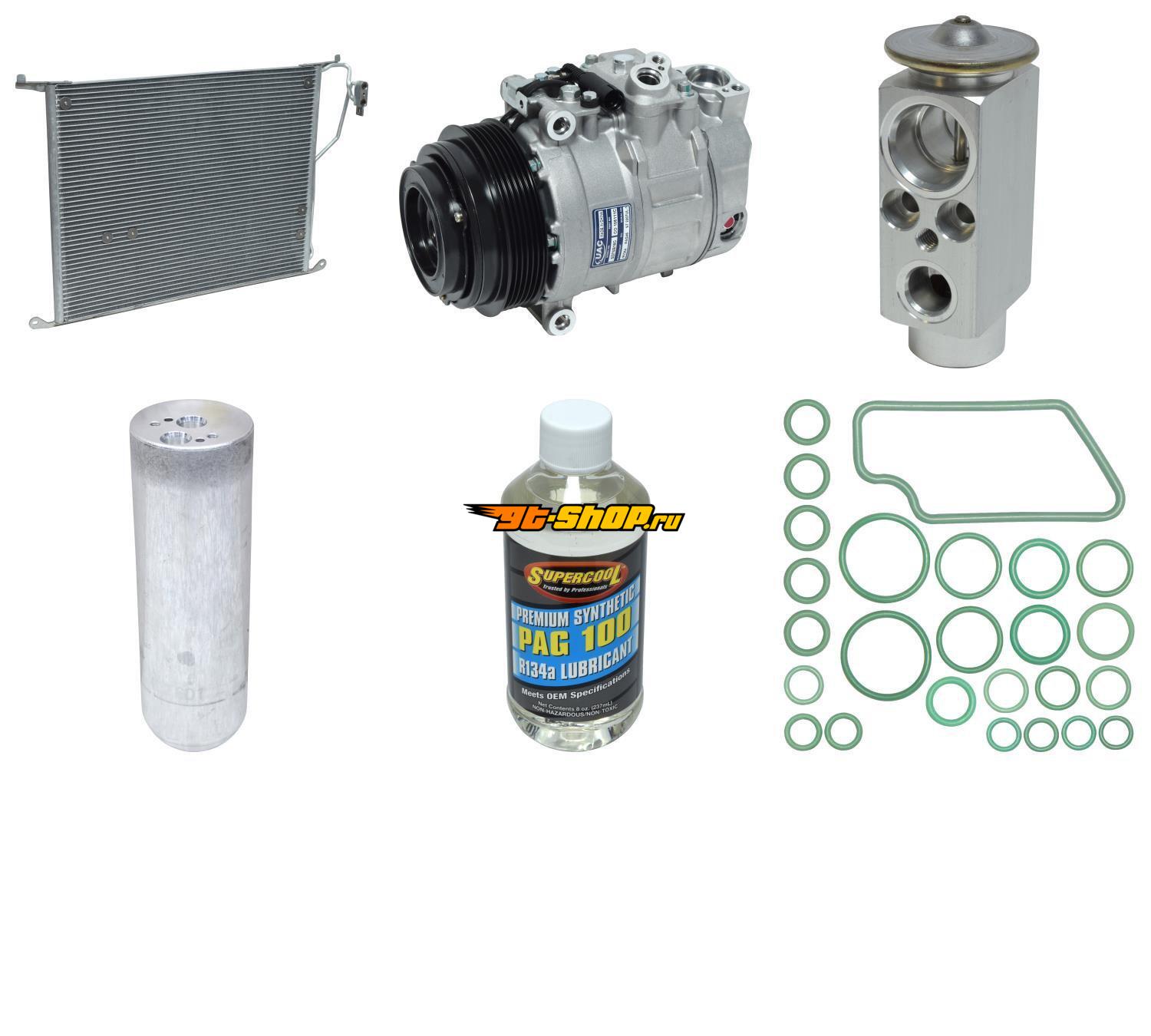

| UAC KT1772A Specifications |
|---|
| [A/C Compressor] - Clocking | 12 |
| [A/C Compressor] - Control Valve (Y/ N) | N |
| [A/C Compressor] - Diode (Y/ N) | N |
| [A/C Compressor] - Discharge Port (MM) | 17 |
| [A/C Compressor] - Gauge Line (MM) | 36 |
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 119 |
| [A/C Compressor] - Style | SD7SB16C |
| [A/C Compressor] - Suction Port (MM) | 28 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 5 |
| [A/C Condenser] - Height (MM) | 430 |
| [A/C Condenser] - Inlet (MM) | 15.5 |
| [A/C Condenser] - Outlet (MM) | 10 |
| [A/C Condenser] - Width (MM) | 650 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Superheat | 3 |

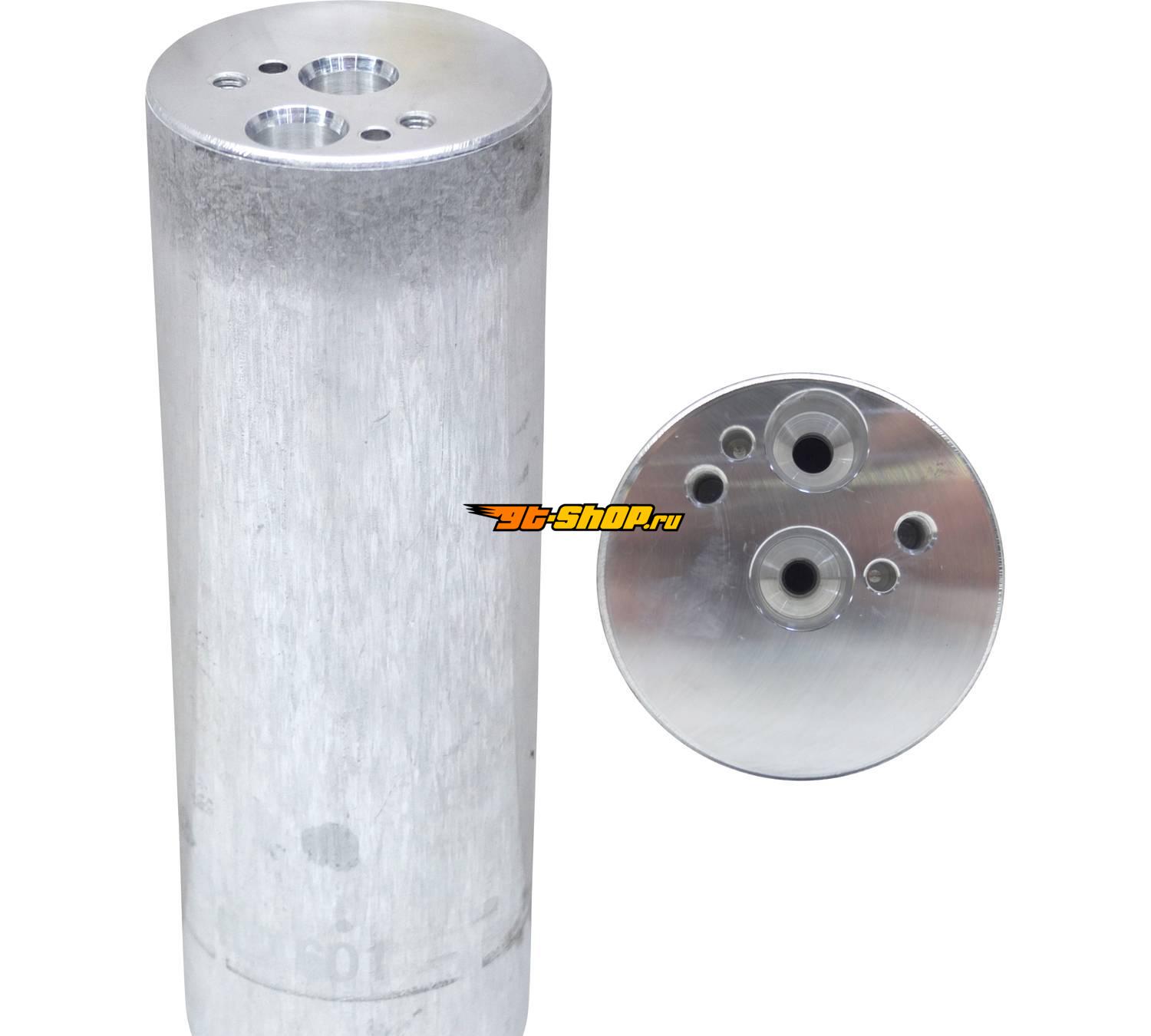

| [A/C Receiver Drier / Accumulator] - Length (MM) | 205 |
| [A/C Receiver Drier / Accumulator] - Outer diameter (MM) | 64 |
