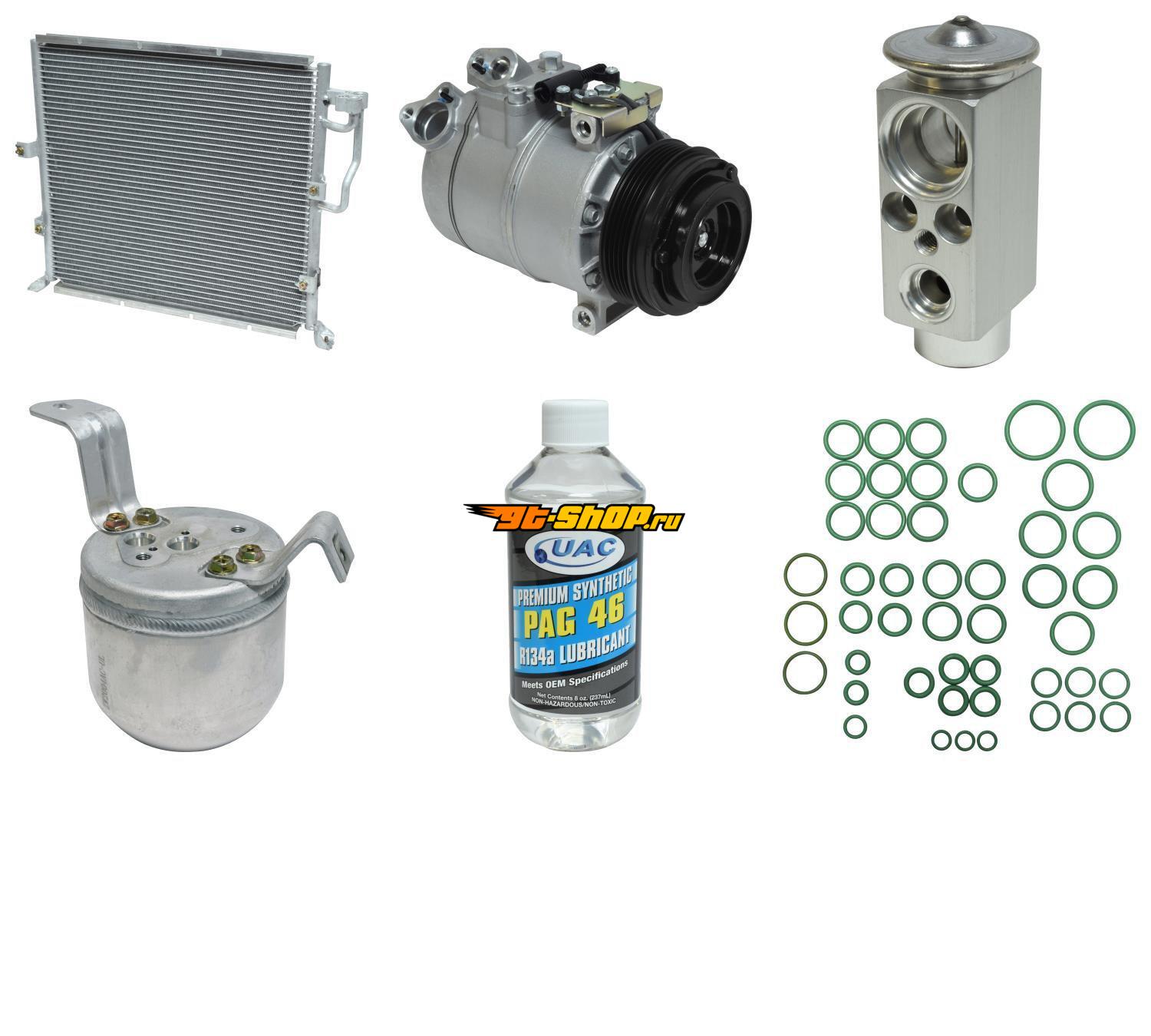

| UAC KT1788A Specifications |
|---|
| [A/C Compressor] - Clocking | 12 |
| [A/C Compressor] - Control Valve (Y/ N) | Y |
| [A/C Compressor] - Discharge Port (MM) | 15 |
| [A/C Compressor] - Gauge Line (MM) | 42 |
| [A/C Compressor] - Grooves | 5 |
| [A/C Compressor] - Pulley Diameter (MM) | 110 |
| [A/C Compressor] - Style | 7SB16C |
| [A/C Compressor] - Suction Port (MM) | 28 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Mount | Direct |
| [A/C Condenser] - Depth (MM) | 16 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 425 |
| [A/C Condenser] - Inlet (MM) | 16 |
| [A/C Condenser] - Outlet (MM) | 13 |
| [A/C Condenser] - Width (MM) | 490 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Superheat | 3.5 |
| [A/C Receiver Drier / Accumulator] - Outer diameter (MM) | 99 |
