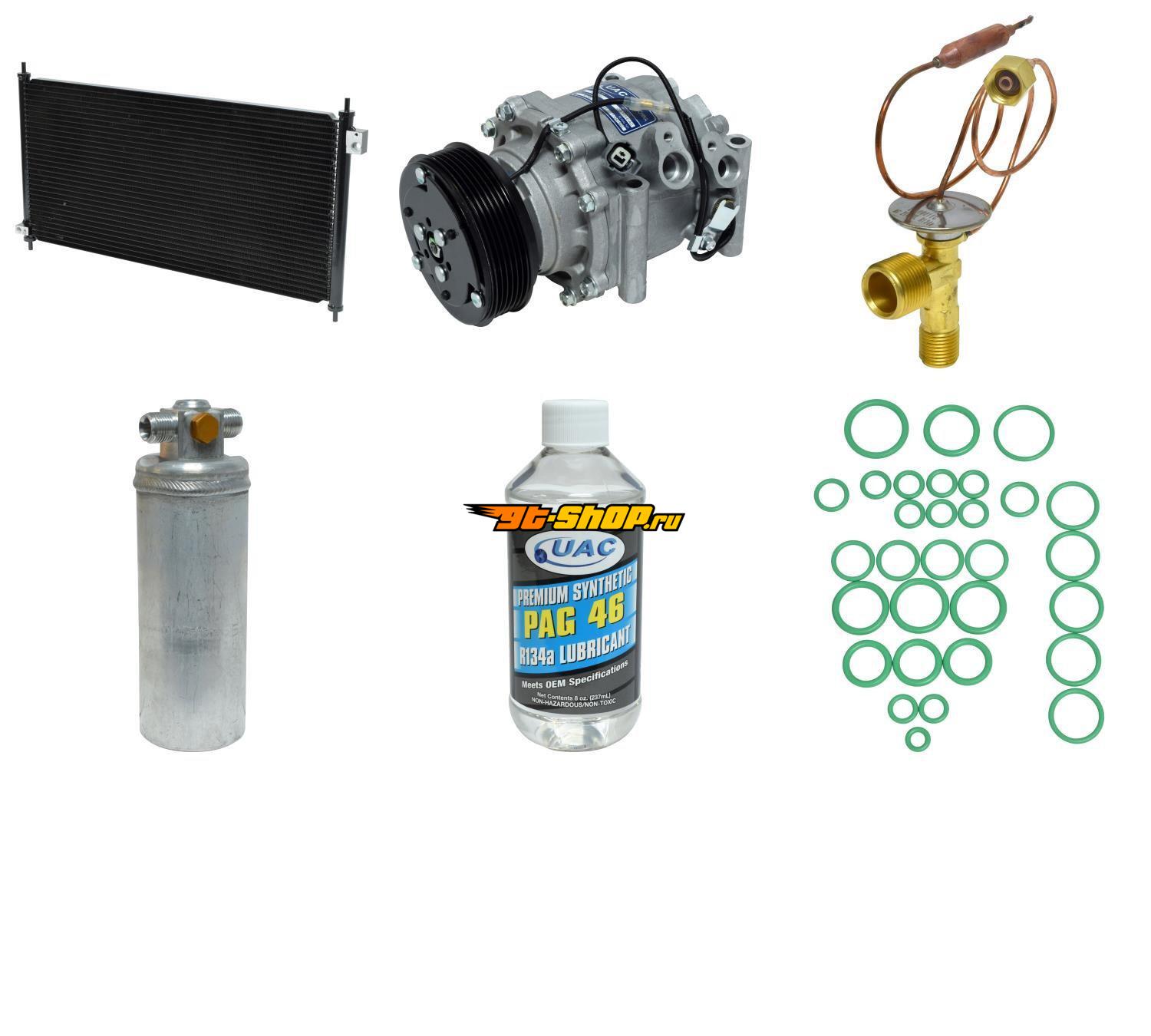

| UAC KT1835A Specifications |
|---|
| [A/C Compressor] - Grooves | 6 |
| [A/C Compressor] - Pulley Diameter (MM) | 115 |
| [A/C Compressor] - Style | TRSA09 |
| [A/C Compressor] - Switch (Y/ N) | Heat Sensor |
| [A/C Compressor] - [A/C Compressor] Mount | tangent |
| [A/C Condenser] - Gauge Line (MM) | 18 |
| [A/C Expansion Valve] - Inlet (MM) | M16 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Superheat | 5.2 |
| [A/C Receiver Drier / Accumulator] - Fuse Plug (Y/ N) | No |
| [A/C Receiver Drier / Accumulator] - Height (MM) | 195 |
| [A/C Receiver Drier / Accumulator] - Inlet (MM) | 16 X 1.50 |
| [A/C Receiver Drier / Accumulator] - Inlet Type | MCOR |
| [A/C Receiver Drier / Accumulator] - Moisture Indicator (Y/ N) | No |
| [A/C Receiver Drier / Accumulator] - Outer diameter (MM) | 60 |
| [A/C Receiver Drier / Accumulator] - Outlet Thread Size | M16 |
| [A/C Receiver Drier / Accumulator] - PRV (Y/ N) | No |
| [A/C Receiver Drier / Accumulator] - Service Port (Y/ N) | No |
| [A/C Receiver Drier / Accumulator] - Sight Glass (Y/ N) | Yes |
| [A/C Receiver Drier / Accumulator] - Switch Port Size | 2 x 3/8" Female |
| [A/C Receiver Drier / Accumulator] - Switch Port Size | 2 x 3/8 Female |
| [A/C Receiver Drier / Accumulator] - Thread Size | M16 |
