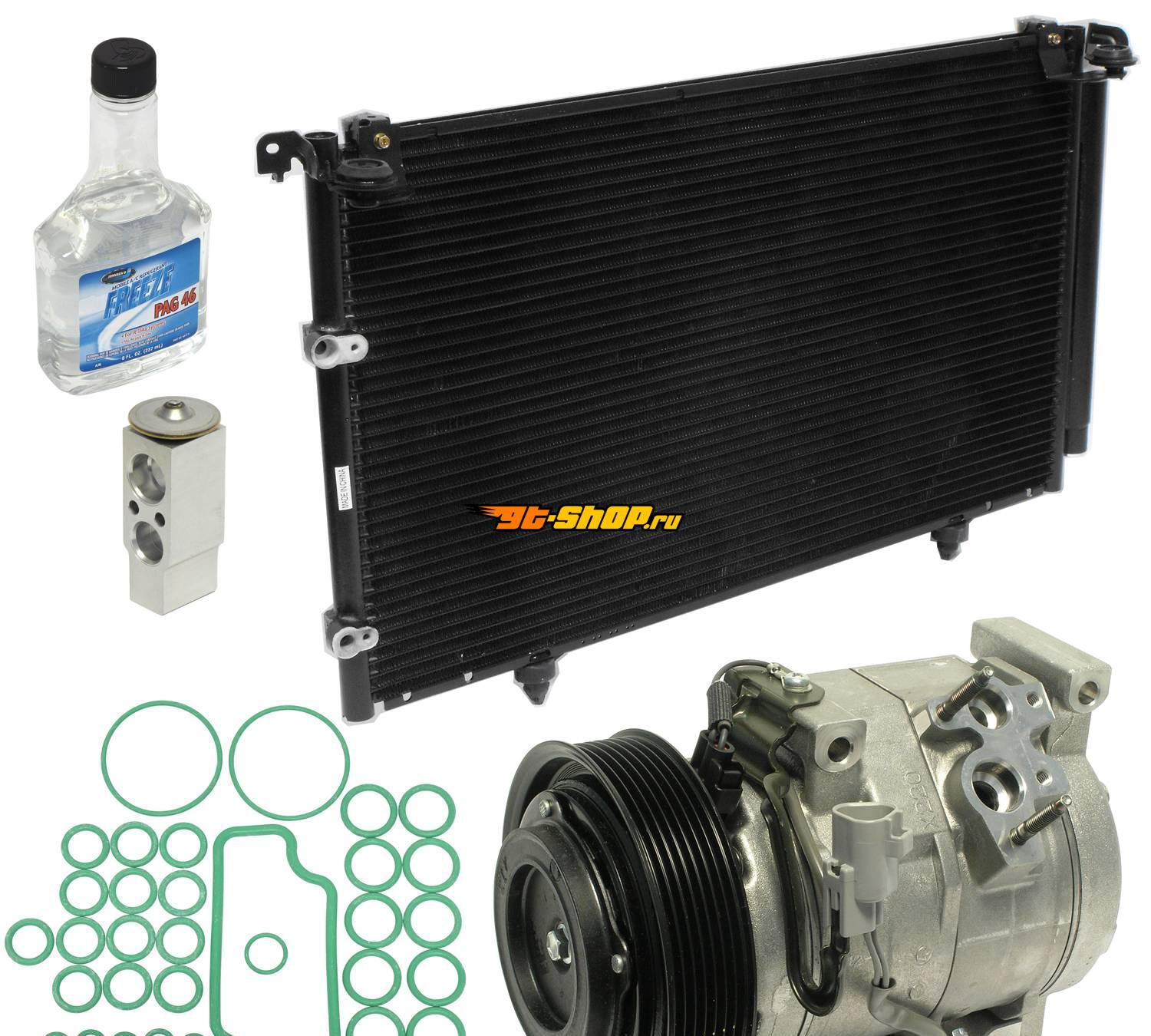

| UAC KT1973A Specifications |
|---|
| [A/C Compressor] - Clocking | 12 |
| [A/C Compressor] - Diode (Y/ N) | N |
| [A/C Compressor] - Discharge Port (MM) | 15.5 |
| [A/C Compressor] - Gauge Line (MM) | 63 |
| [A/C Compressor] - Grooves | 7 |
| [A/C Compressor] - Pulley Diameter (MM) | 130 |
| [A/C Compressor] - Style | 10S17C |
| [A/C Compressor] - Suction Port (MM) | 18 |
| [A/C Compressor] - Voltage | 12 |
| [A/C Compressor] - [A/C Compressor] Mount | tangent |
| [A/C Condenser] - Depth (MM) | 18 |
| [A/C Condenser] - Fin Height (MM) | 8 |
| [A/C Condenser] - Height (MM) | 398 |
| [A/C Condenser] - Inlet (MM) | 16 |
| [A/C Condenser] - Outlet (MM) | 10 |
| [A/C Condenser] - Width (MM) | 670 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.55±0.035 |
| [A/C Expansion Valve] - Max Operating Pressure | 0.5±0.035 |
| [A/C Expansion Valve] - Superheat | 9 |
| [A/C Expansion Valve] - Tonnage | 1 |
