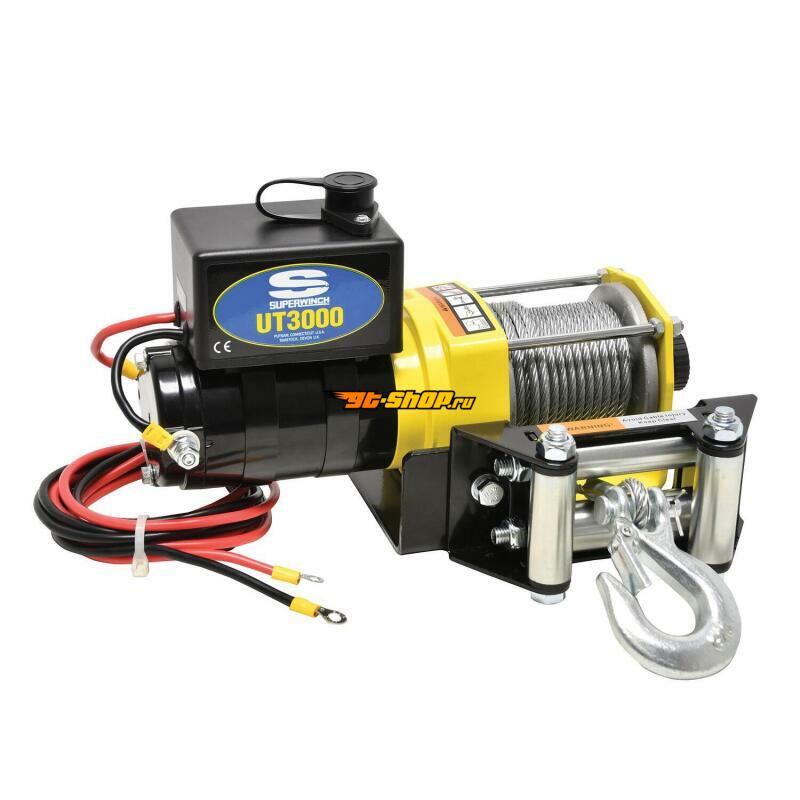

SUPERWINCH 1331200
SUPERWINCH 1331200
Winch
| SUPERWINCH 1331200 Specifications | |
|---|---|
| Brake | Dynamic |
| Clutch | Free-Spooling, Pull and Turn |

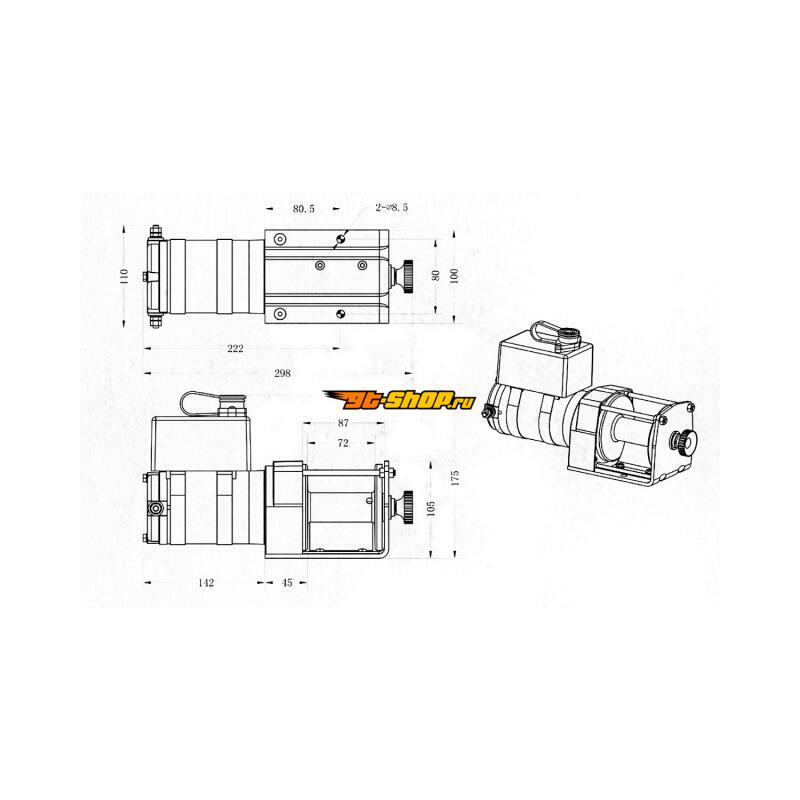

| Dimensions | 12.0" L x 7.5" D x 7.0" H (304.8mm L x 190.5mm D x 177.8mm H) |
| Drum Diameter | 1.25" (31.8mm) |
| Drum Length | 2.83" (72.0mm) |
| Fairlead | Heavy Duty 4-Way Roller |
| Gear Ratio | 153:1 |
| Gearing | 1-Stage Planetary |

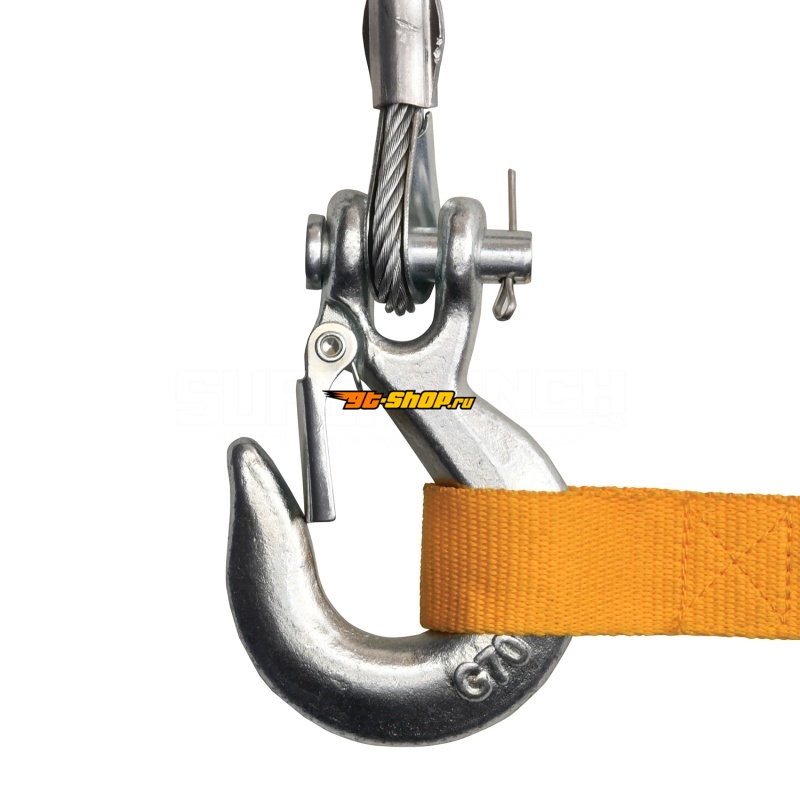

| Hook | Removable Clevis Pinned |
| Installed Weight | 19.5 lbs (8.84 kgs) |

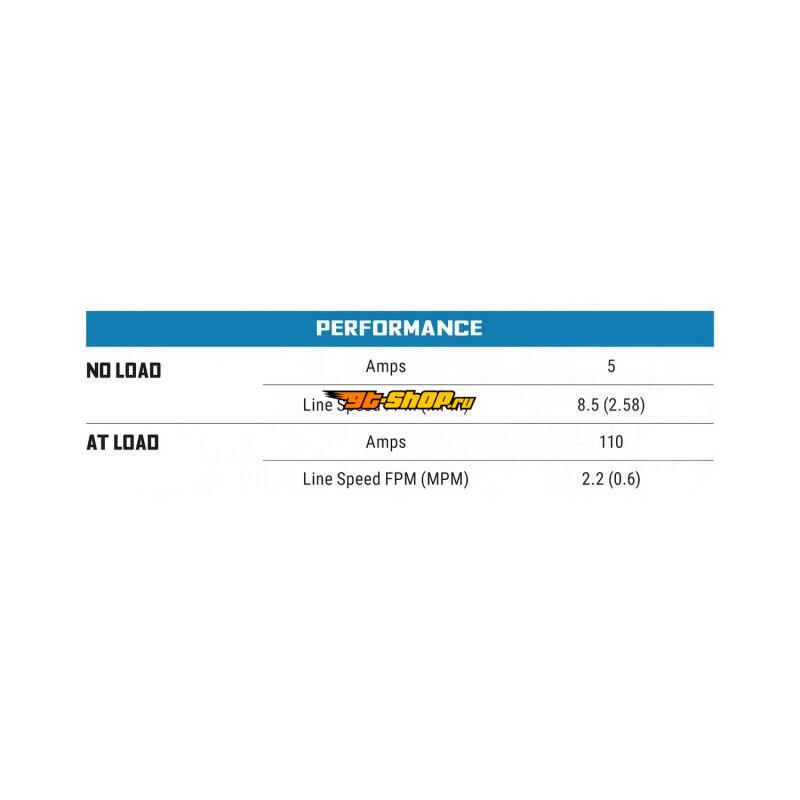

| Line Pull: 0 lbs | 5 Amps Motor Draw / 8.5 FPM (2.58 MPM) Line Speed |
| Line Pull: 3,000 lbs | 110 Amps Motor Draw / 2.2 FPM (0.6 MPM) Line Speed |
| Motor | 1.2 (.89 kw) |
| Mounting Bolt Pattern | 2 Hole, 3.15" (80mm) on Center |
| Rated Line Pull | 3,000 lbs (1,361 kgs) |

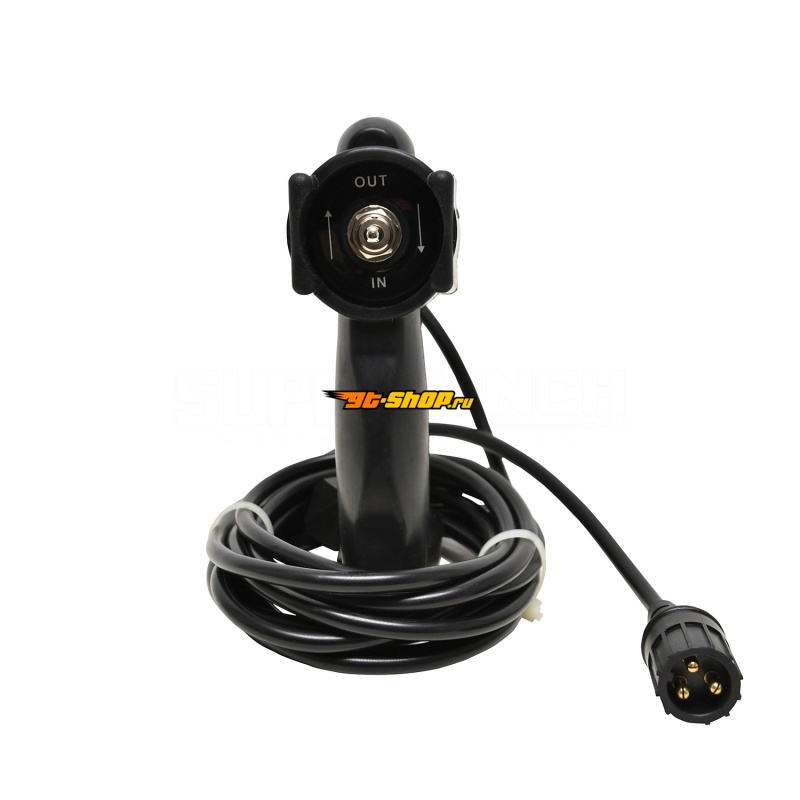

| Remote | Rubber 12' Hand-Held |

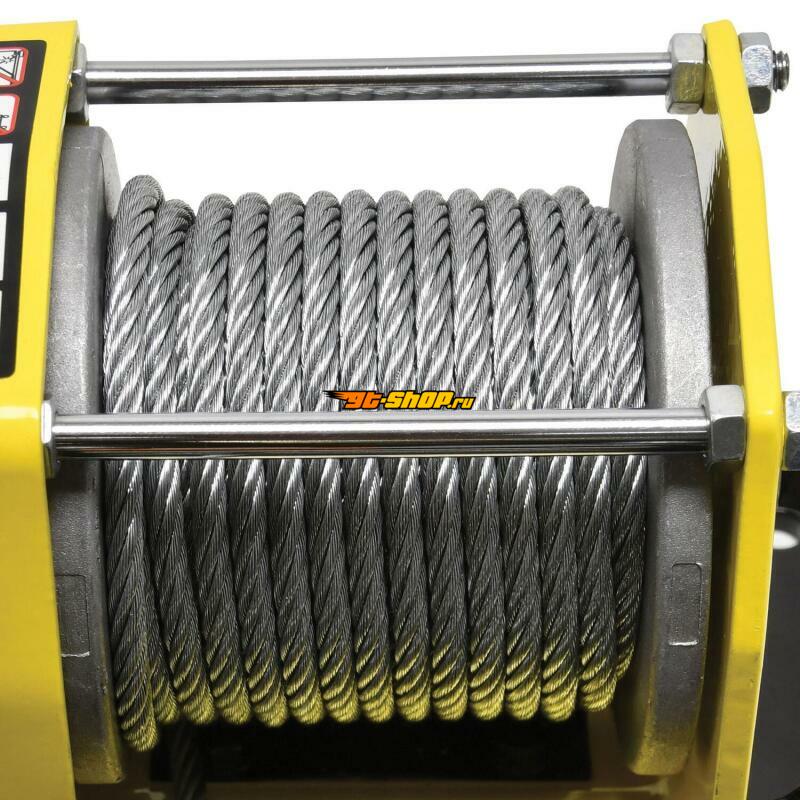

| Rope | Wire Rope 3/16" x 40' (4.8 mm x 12.0 m) |
| Shipping Weight | 22.3 lbs (10.1 kgs) |

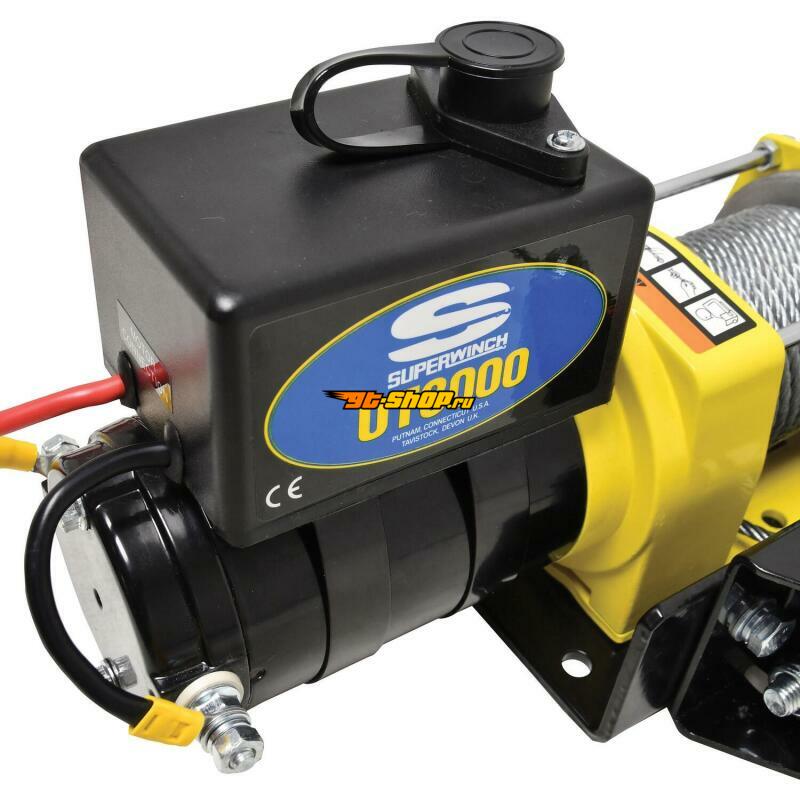

| Solenoid | Circuit Breaker Protected |
| Производитель | SUPERWINCH |
| Оригинальный Номер | 1331200 |
| Описание | Winch |
