SUPERWINCH 1130220
SUPERWINCH 1130220

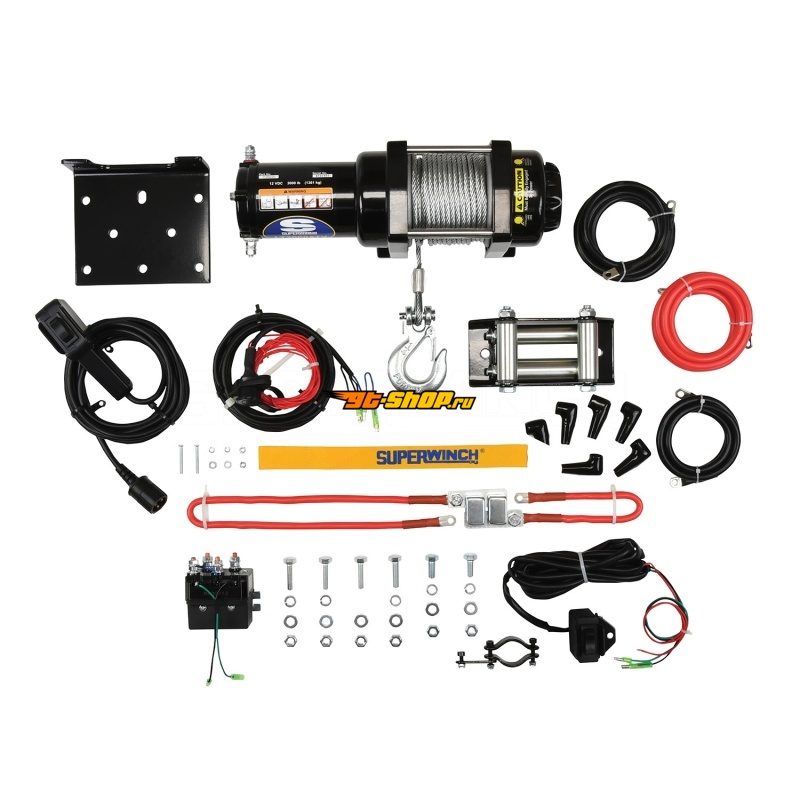

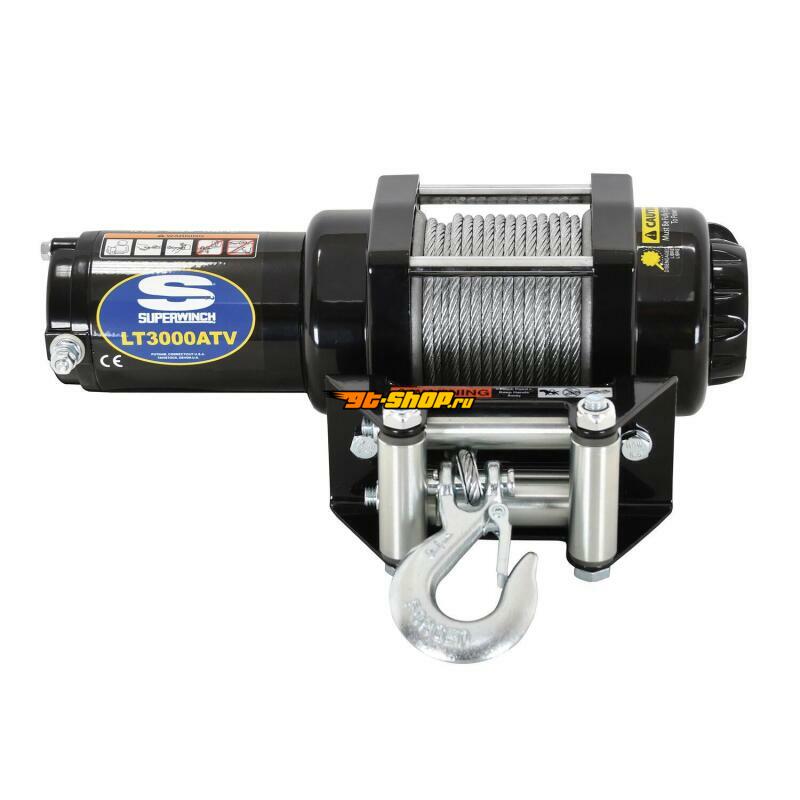

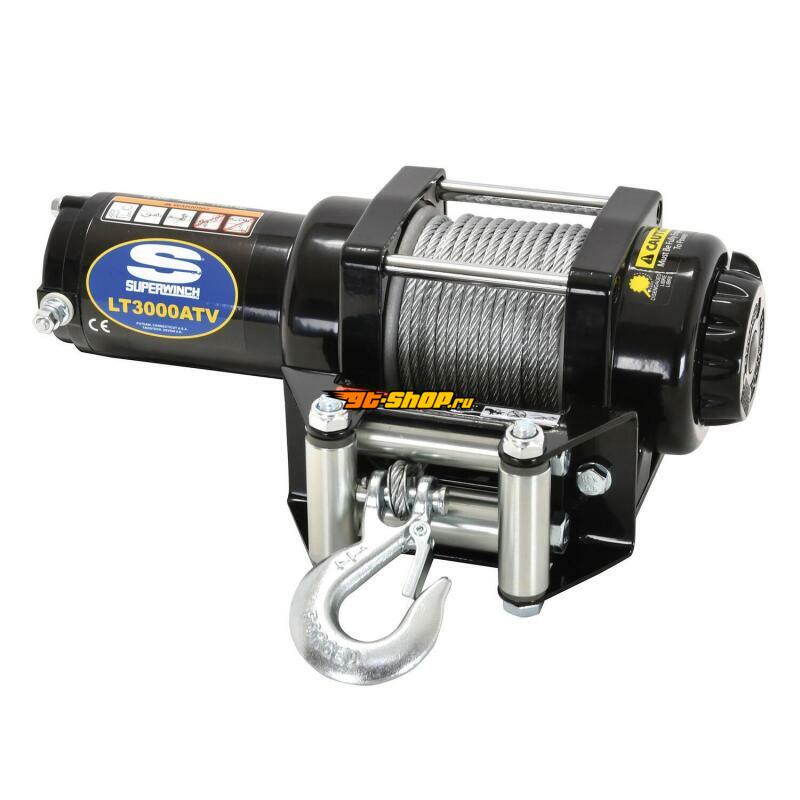

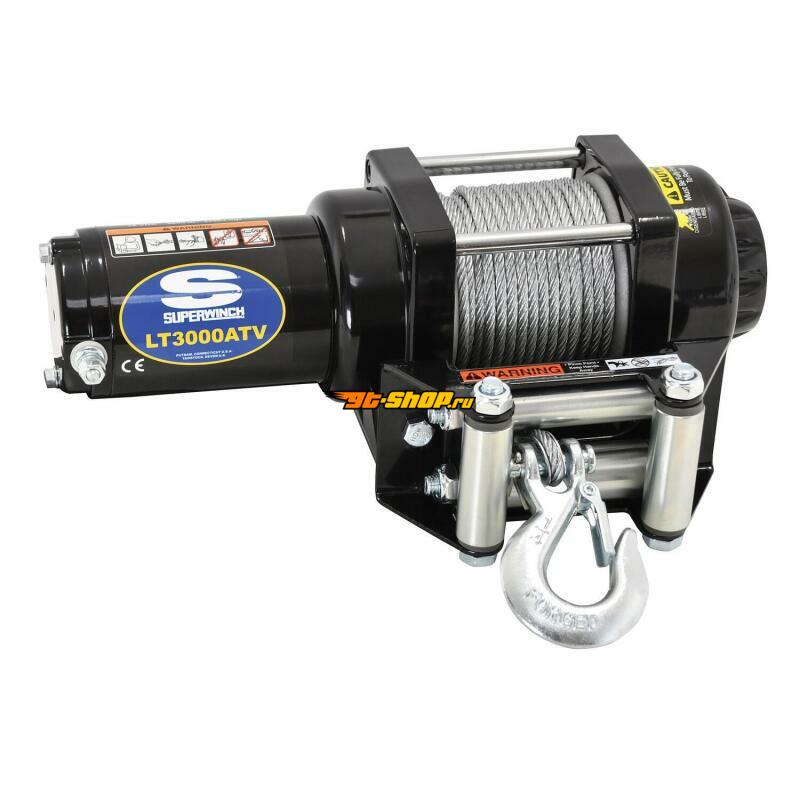

Superwinch 3000 LBS 12V DC 3/16in x 50ft Steel Rope LT3000 Winch
| SUPERWINCH 1130220 Specifications | |
|---|---|
| Battery Leads | 6' x 6 Gauge |
| Brake | Automatic, 100% Load Holding |

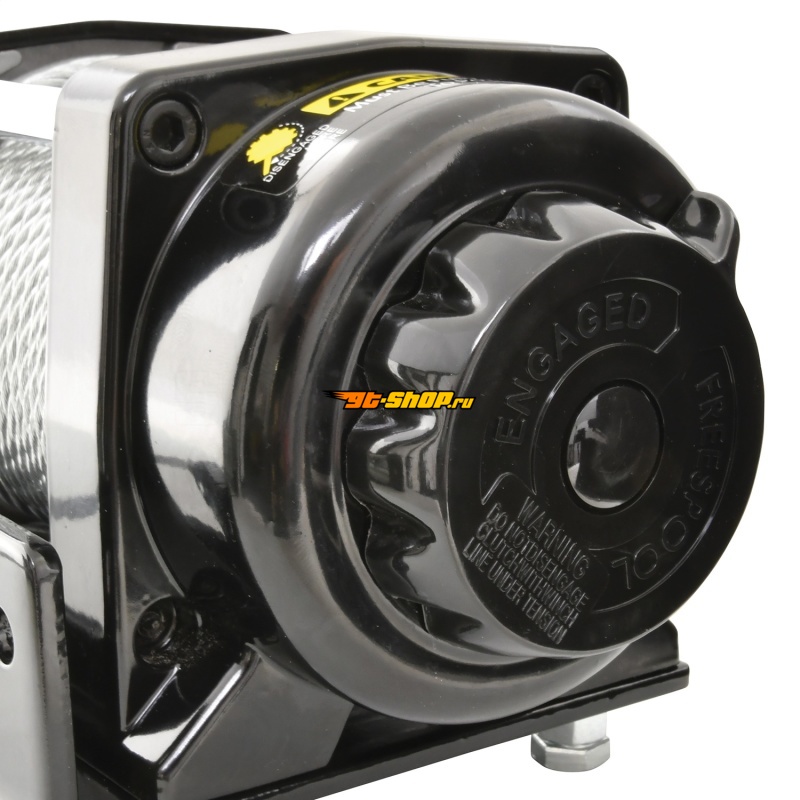

| Clutch | Free-Spooling, Ergonomic Control |
| Dimensions | 13.2" L x 4.25" W x 4.25" H (335.3mm L x 108mm W x 108mm H) |
| Drum Diameter | 2.0" (50.2mm) |
| Drum Length | 2.9" (74mm) |
| Fairlead | Heavy-Duty 4-Way Roller |
| Gear Ratio | 136:1 |
| Gearing | 1-Stage Planetary |

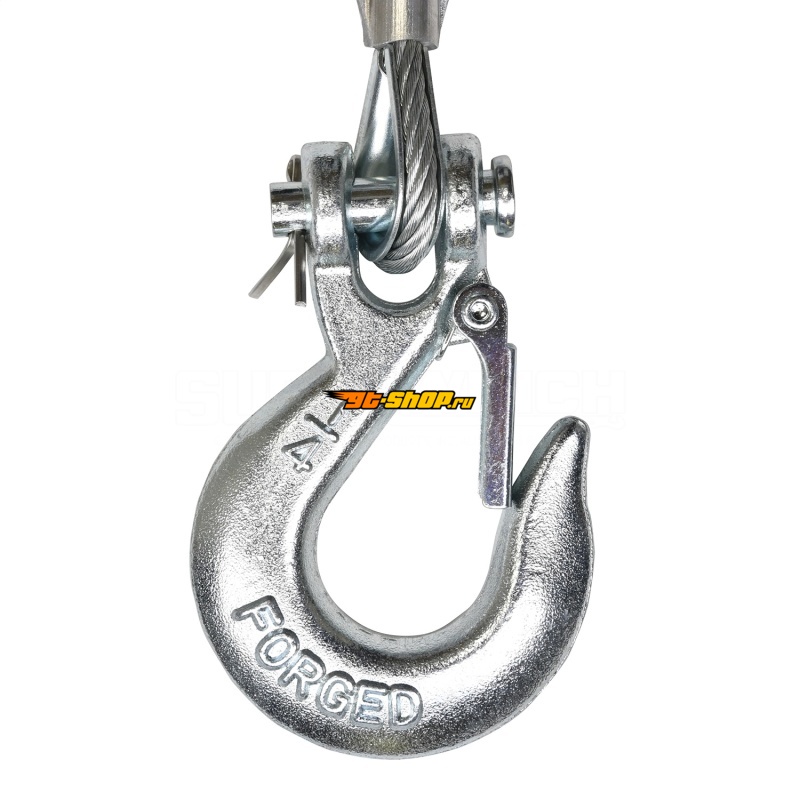

| Hook | Heavy-Duty, Clevis Pinned Latch |
| Installed Weight | 20.0 lbs (9.0 kgs) |
| Line Pull: 0 lbs | 15 Amps Motor Draw / 27 FPM (8.3 MPM) Line Speed |
| Line Pull: 3,000 lbs | 180 Amps Motor Draw / 4 FPM (1.2 MPM) Line Speed |

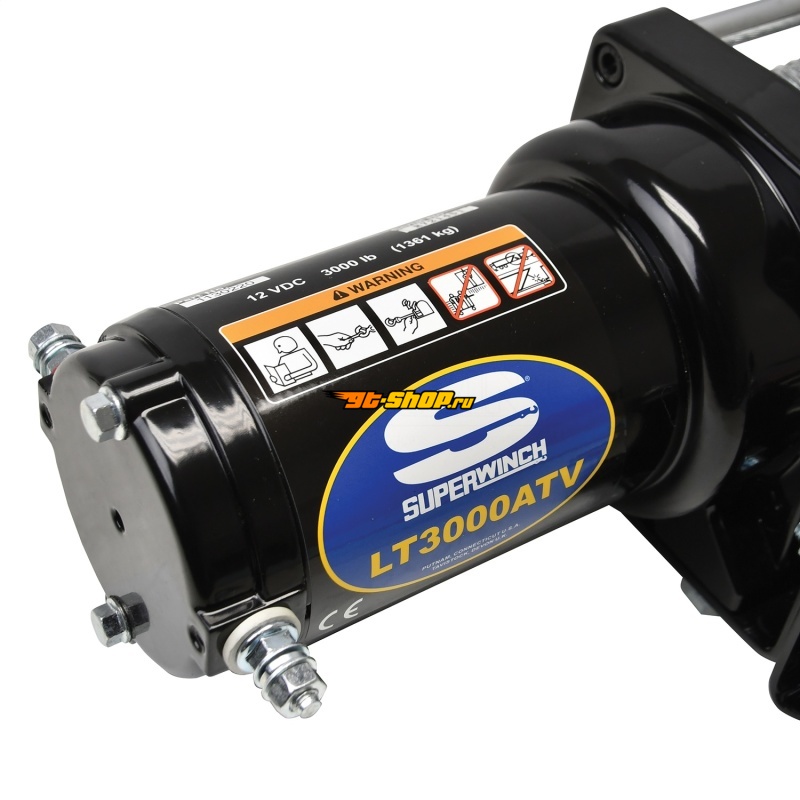

| Motor | Sealed 1.2 HP Permanent Magnet |
| Mounting Bolt Pattern | 3.0" x 4.87" (76mm x 124mm) |
| Rated Line Pull | 3,000 lbs (1,361 kgs) |

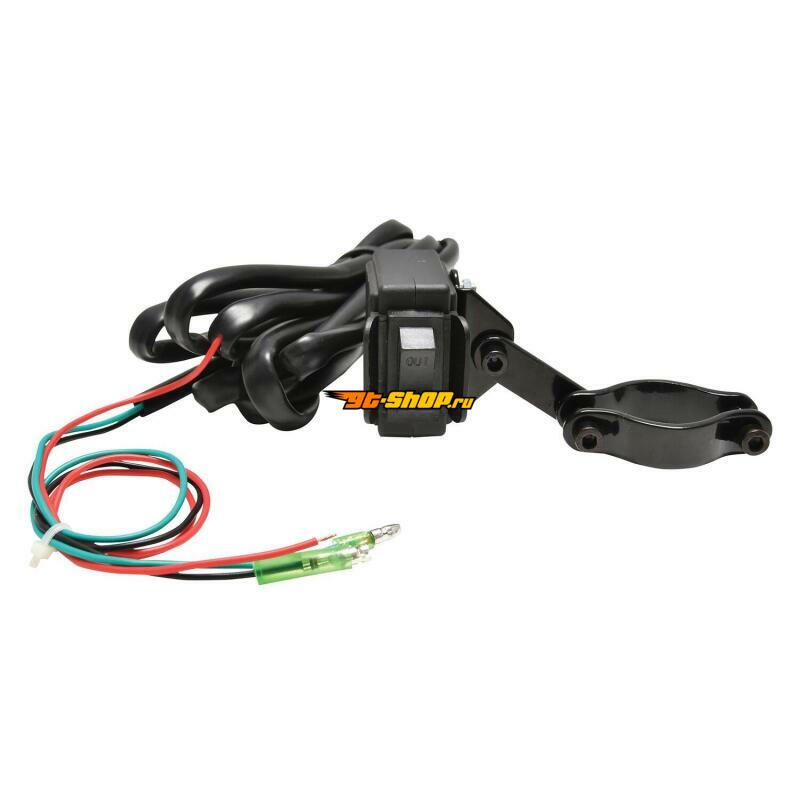

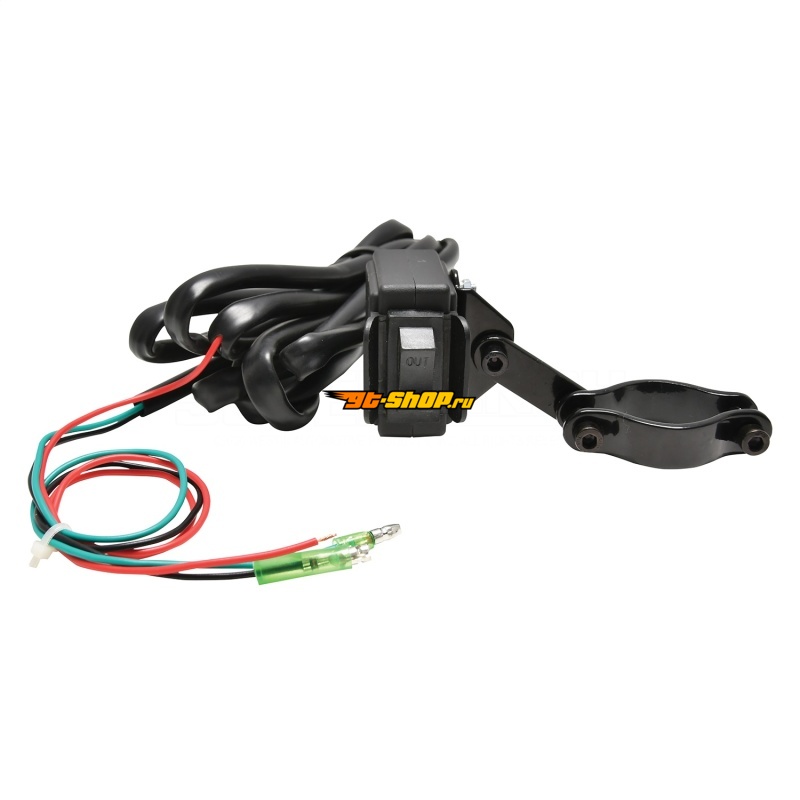

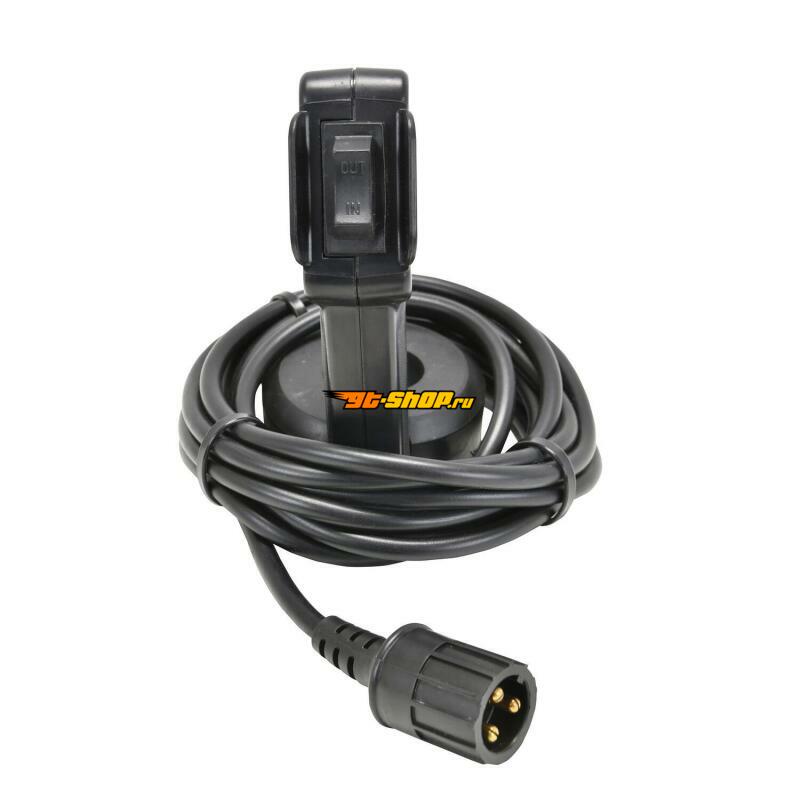

| Remote | 12' Hand-Held |

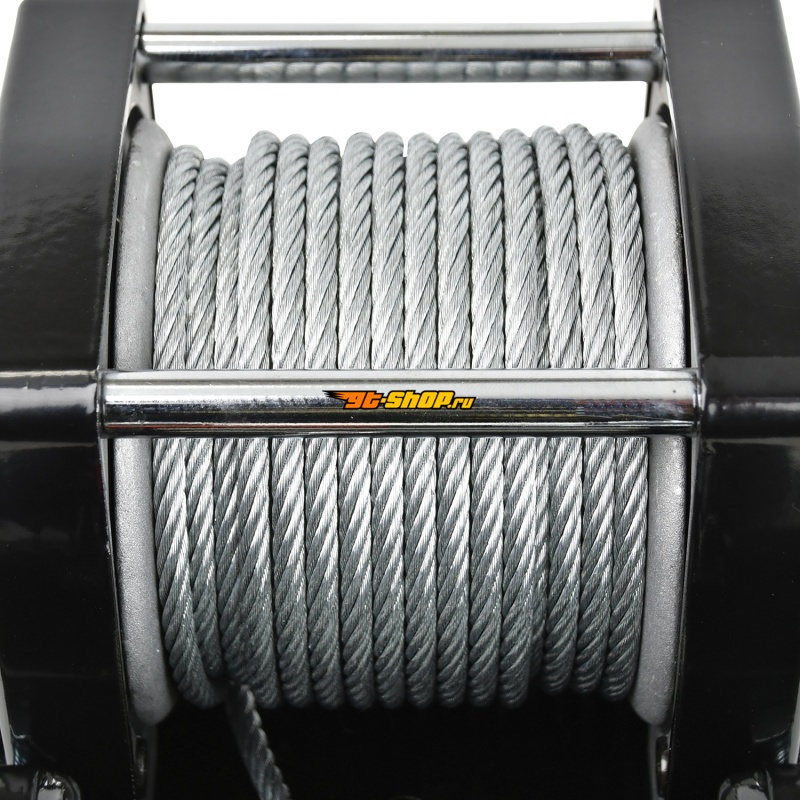

| Rope | Wire Rope 3/16" x 50' (4.8mm x 15.0m) |
| Shipping Weight | 27 lbs (12.24 kgs) |
| Solenoid | Sealed Solenoid, Circuit Breaker Protected |
| Производитель | SUPERWINCH |
| Оригинальный Номер | 1130220 |
| Описание | Superwinch 3000 LBS 12V DC 3/16in x 50ft Steel Rope LT3000 Winch |
