Оригинал. SUPERWINCH 1585202, Superwinch 8500 LBS 12V DC 5/16in x 95ft Steel Rope LP8500 Winch, От 144740 Руб.
SUPERWINCH 1585202
SUPERWINCH 1585202

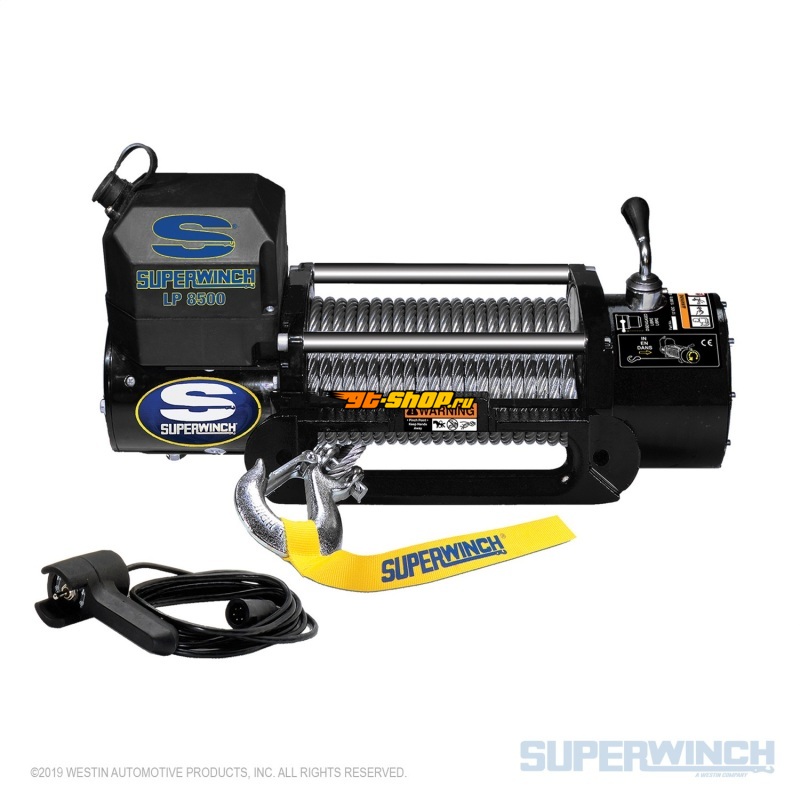

Superwinch 8500 LBS 12V DC 5/16in x 95ft Steel Rope LP8500 Winch
| SUPERWINCH 1585202 Specifications | |
|---|---|
| Brake | Mechanical, Automatic Load Holding |
| Clutch | Free-Spooling, Lever Shift |

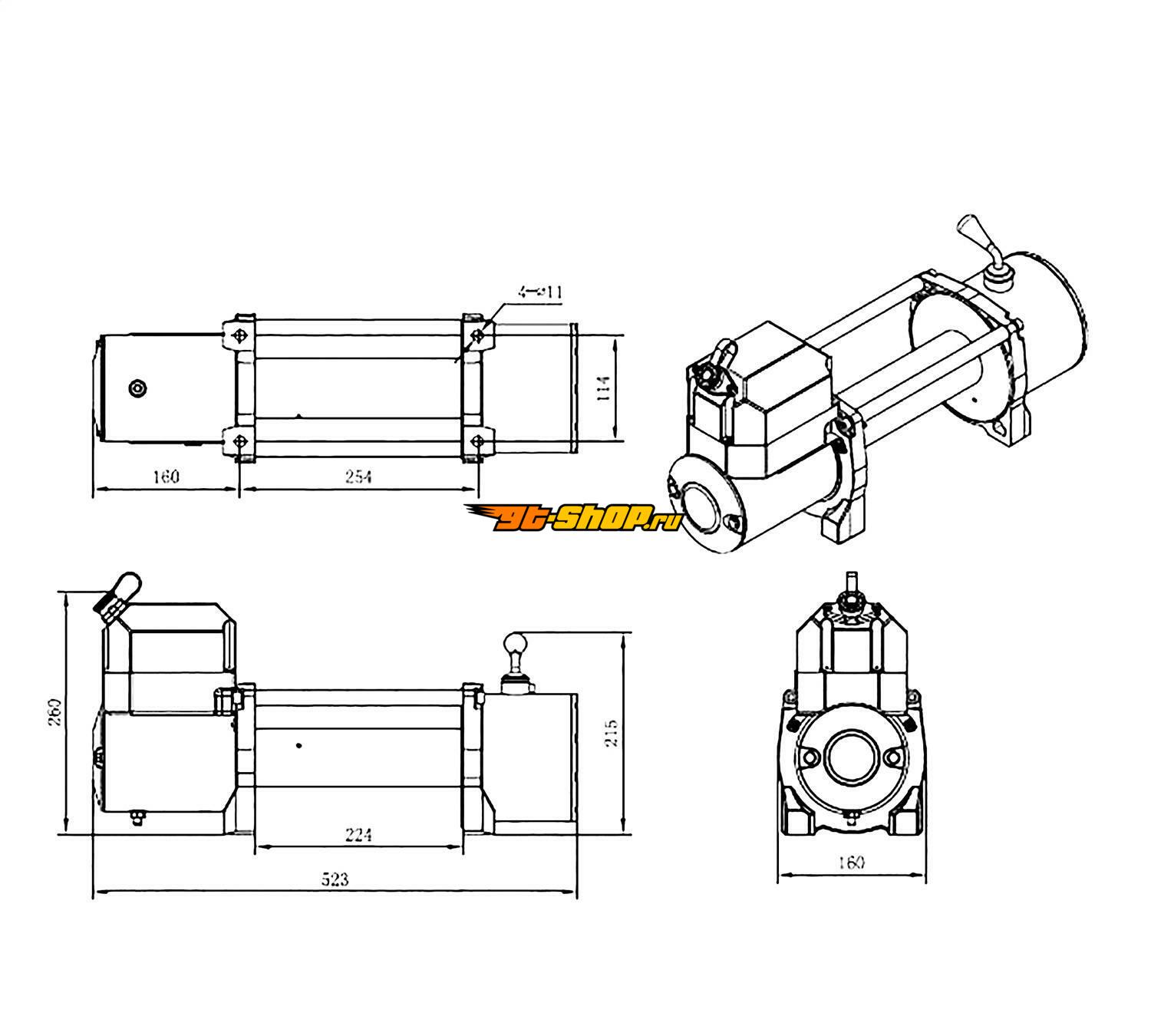

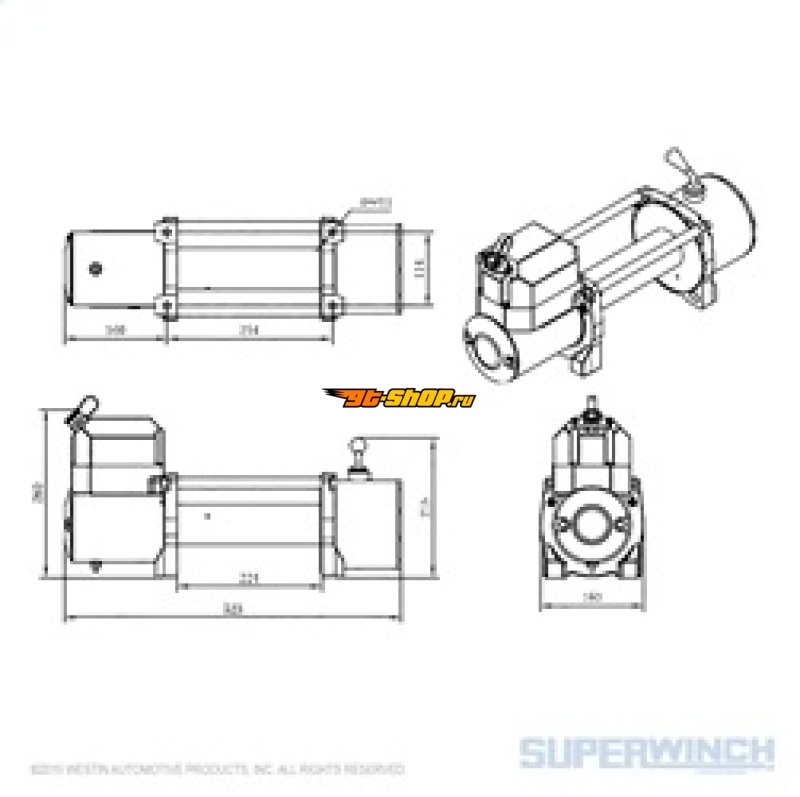

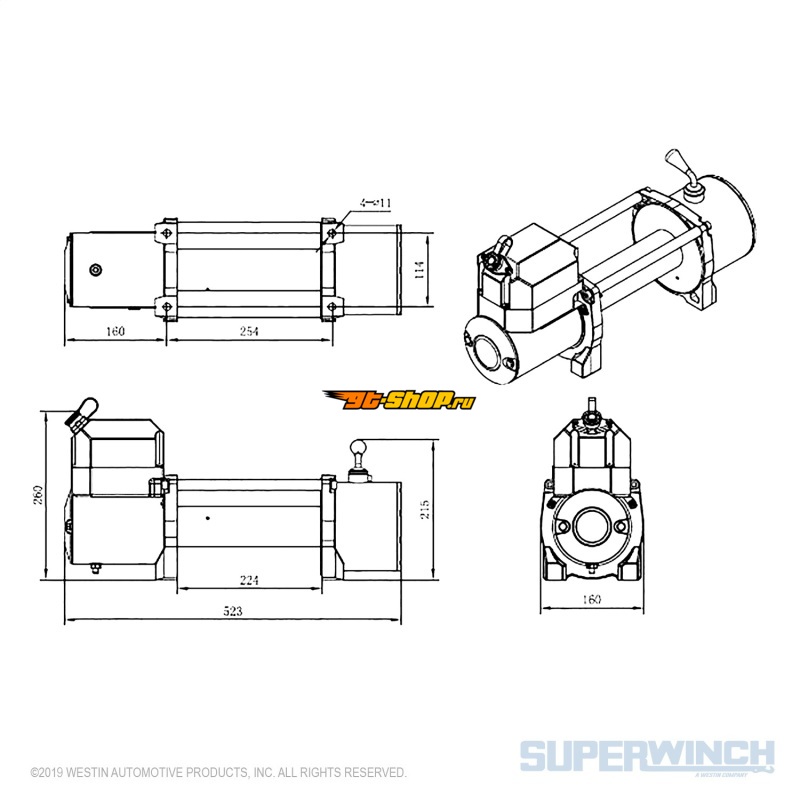

| Dimensions | 21.3" L x 6.3" D x 8.6" H (541 mm L x 160 mm D x 218 mm H) |
| Drum Diameter | 2.5" (67mm) |
| Drum Length | 8.8" (224mm) |
| Fairlead | Heavy Duty, Powder Coated Hawse |
| Gear Ratio | 235:1 |
| Gearing | 3-Stage Planetary |
| Hook | Clevis Hook with Latch |
| Installed Weight | 73 lbs (33.11 kgs) |
| Line Pull: 0 lbs | 84 Amps Motor Draw / 18.0 FPM (5.5 MPM) Line Speed |
| Line Pull: 8,500 lbs | 320 Amps Motor Draw / 3.5 FPM (1.1 MPM) Line Speed |
| Motor | 4.5 HP Series Wound |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 114.3mm) |
| Rated Line Pull | 8,500 lbs (3,856 kgs) |
| Remote | Rubber 12' Hand-Held |
| Rope | Wire Rope 5/16" x 94' (7.9mm x 29m) |
| Shipping Weight | 80 lbs (36.28 kgs) |
| Solenoid | Weather-Sealed Solenoid and Circuit Breaker Protected |
| Производитель | SUPERWINCH |
| Оригинальный Номер | 1585202 |
| Описание | Superwinch 8500 LBS 12V DC 5/16in x 95ft Steel Rope LP8500 Winch |
