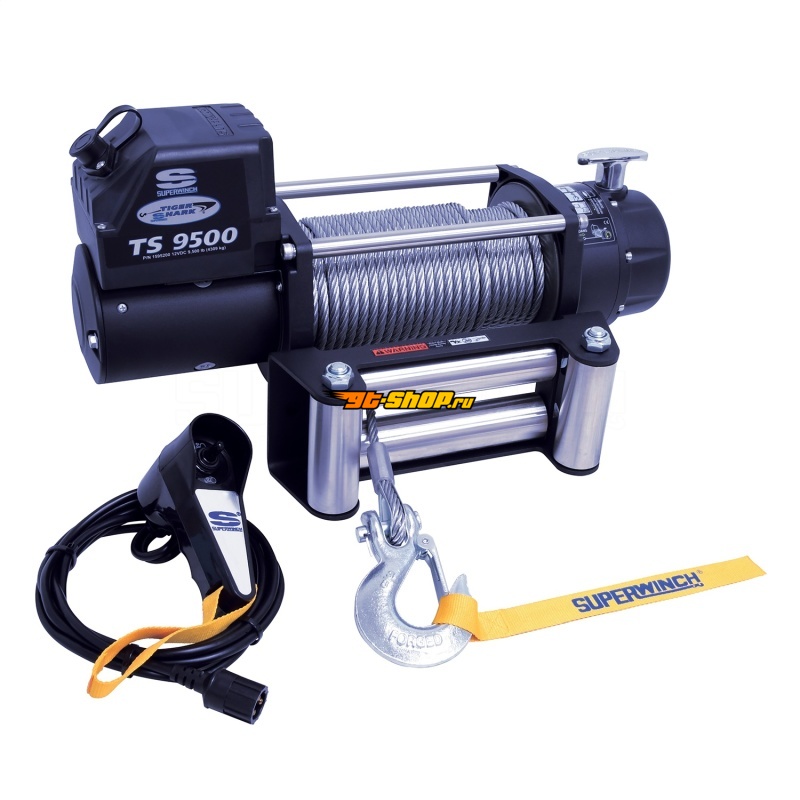

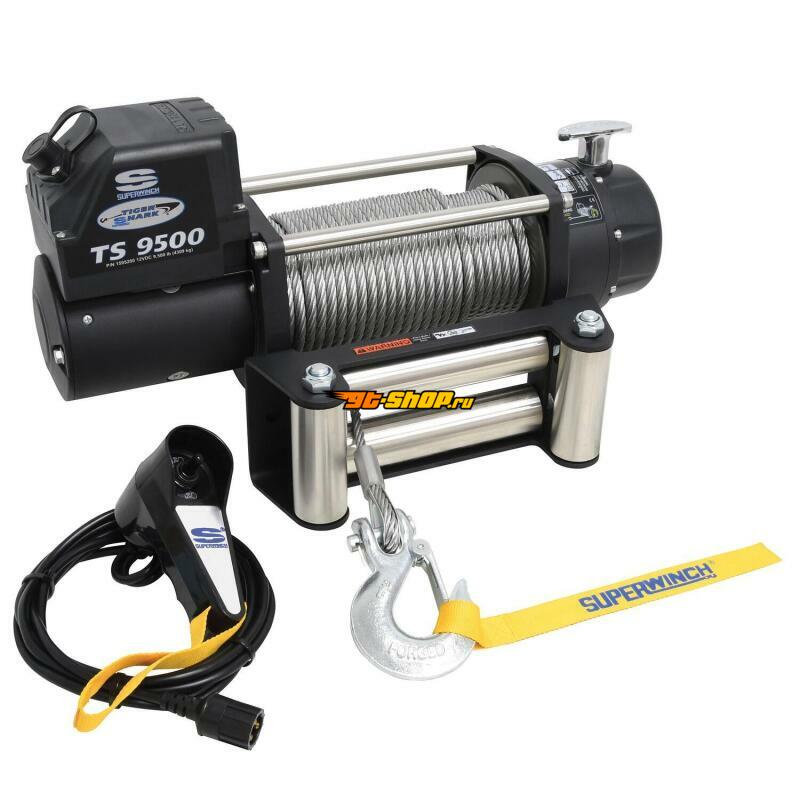

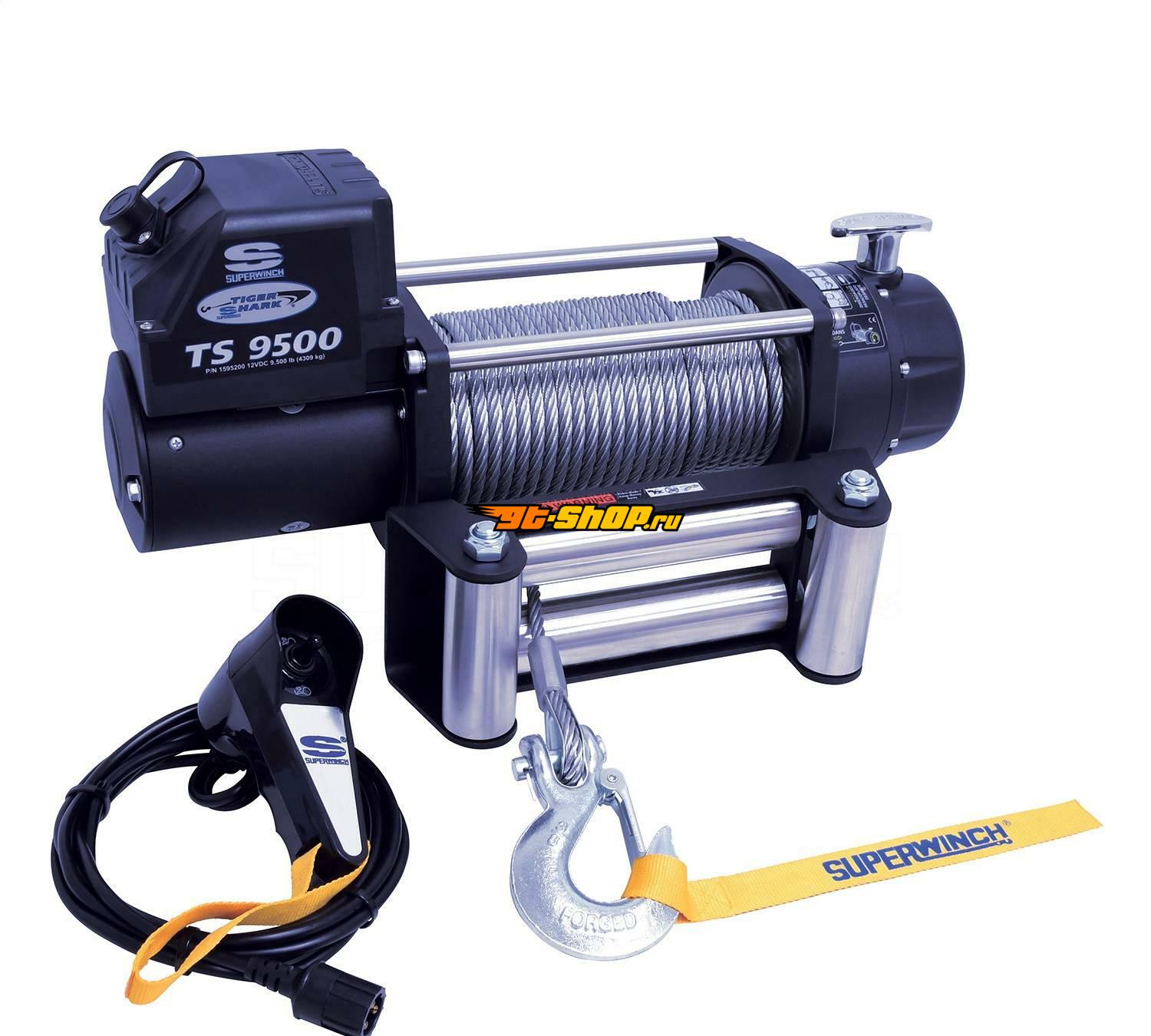

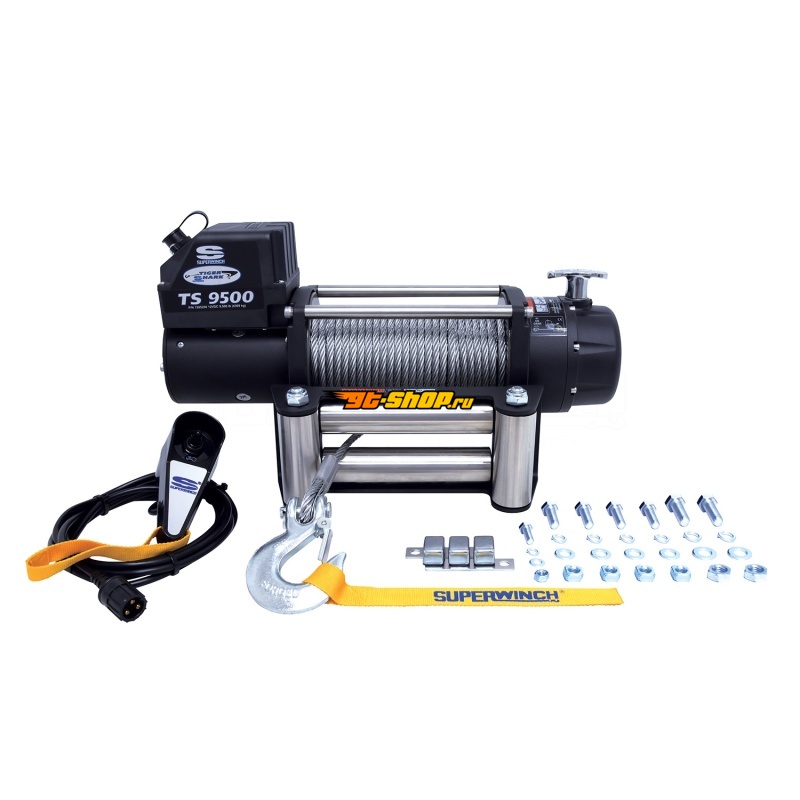

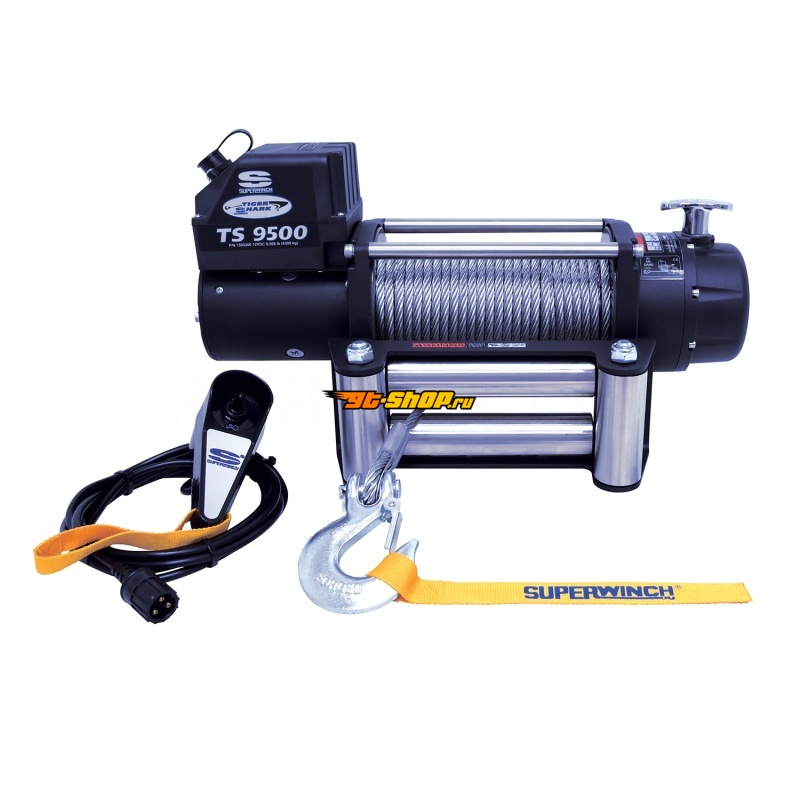

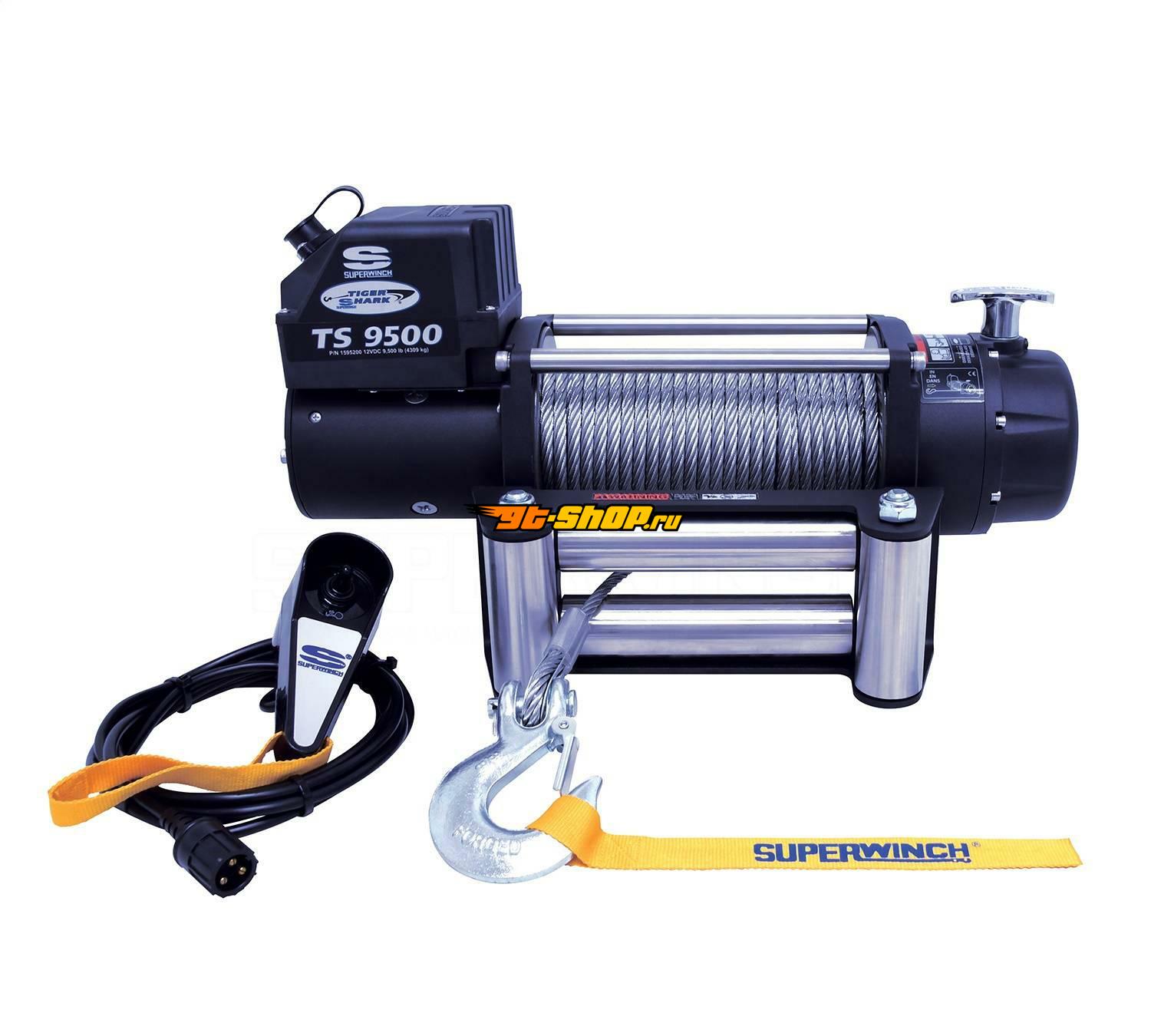

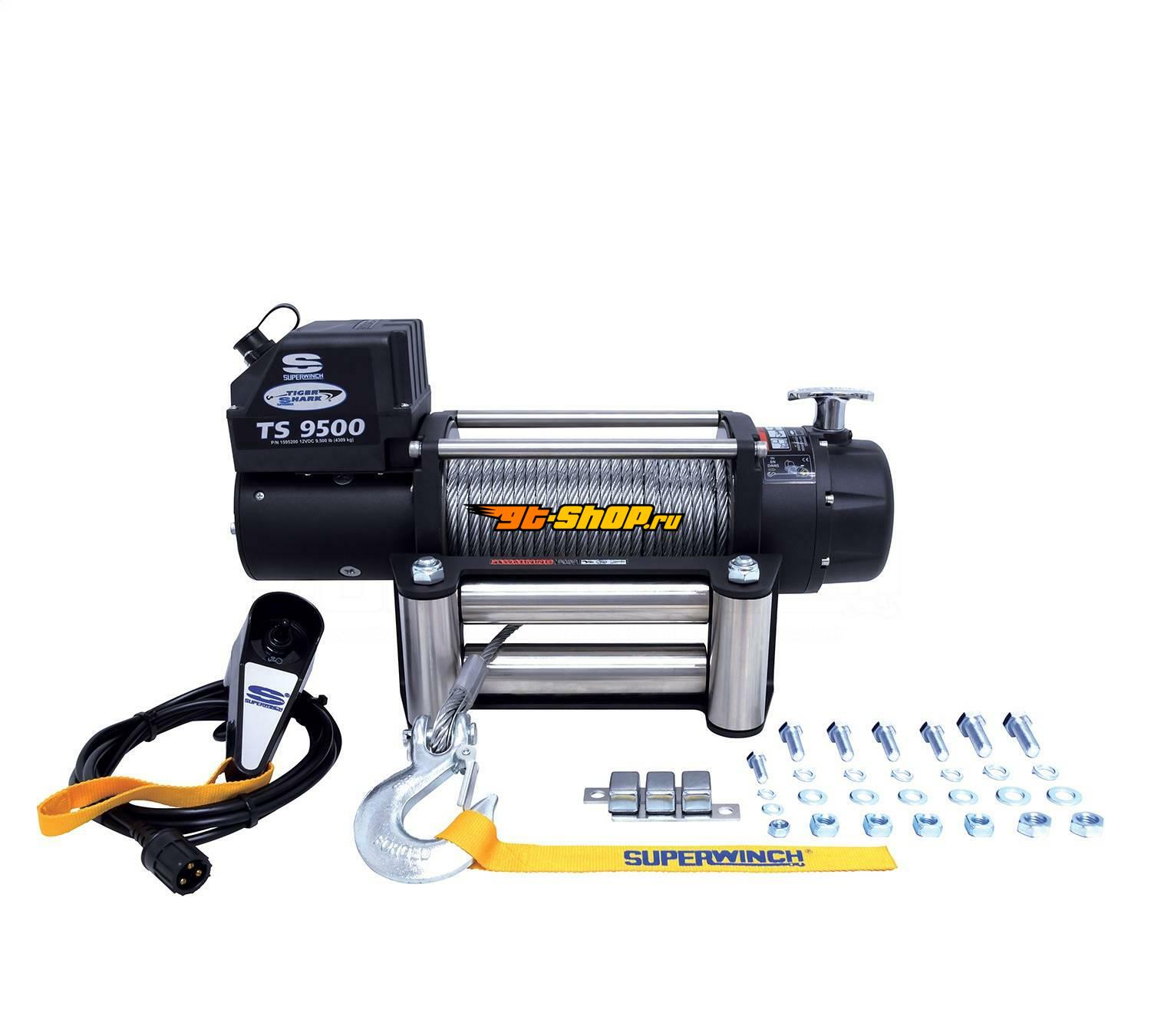

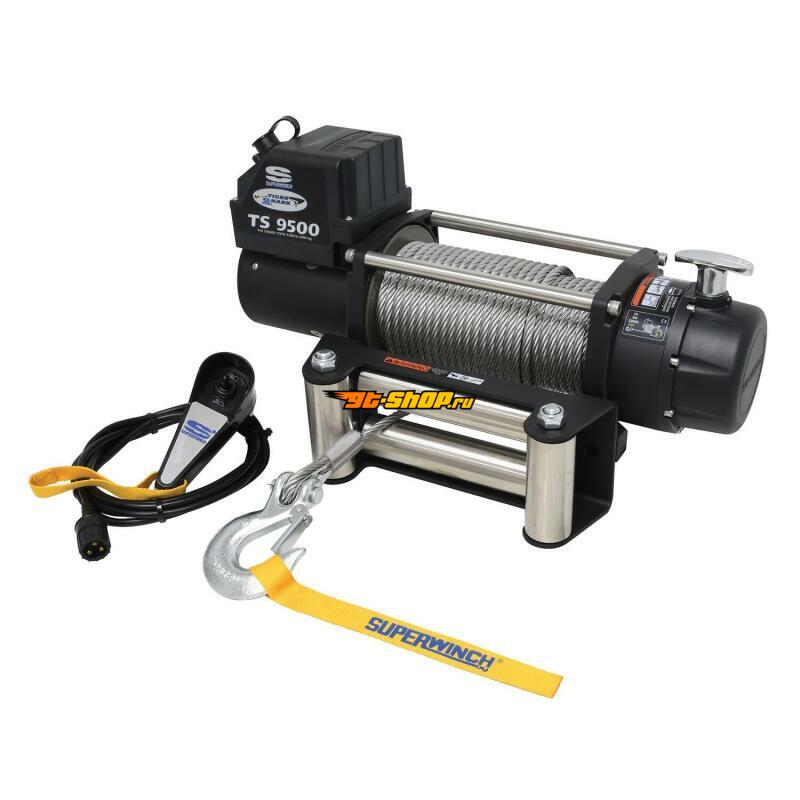

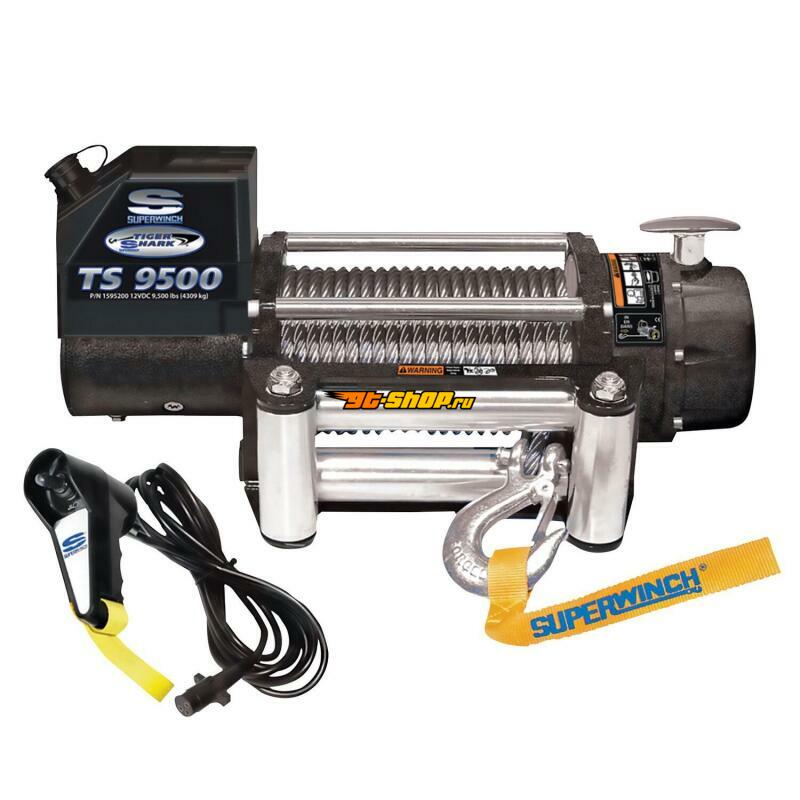

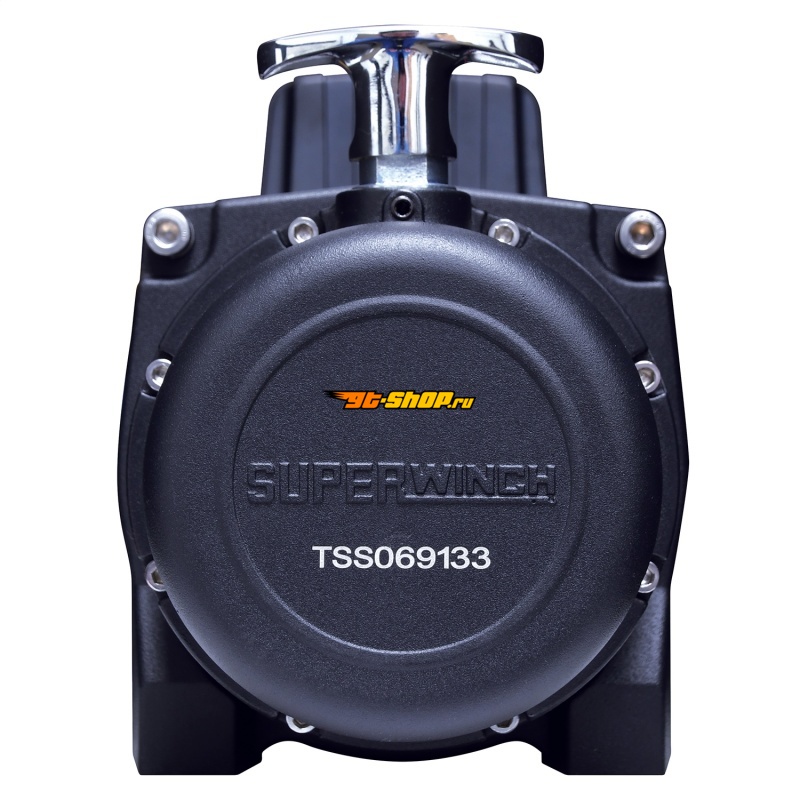

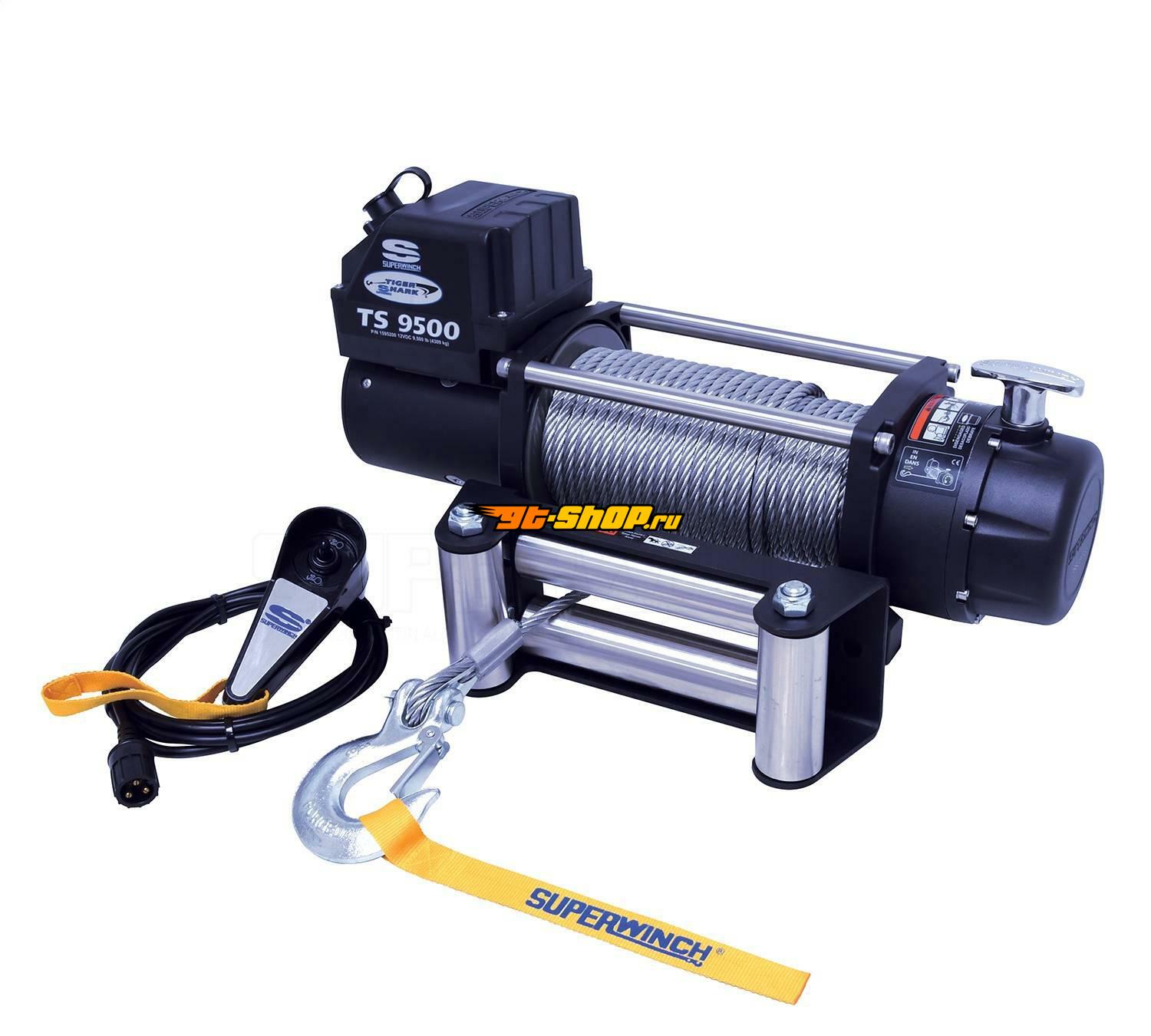

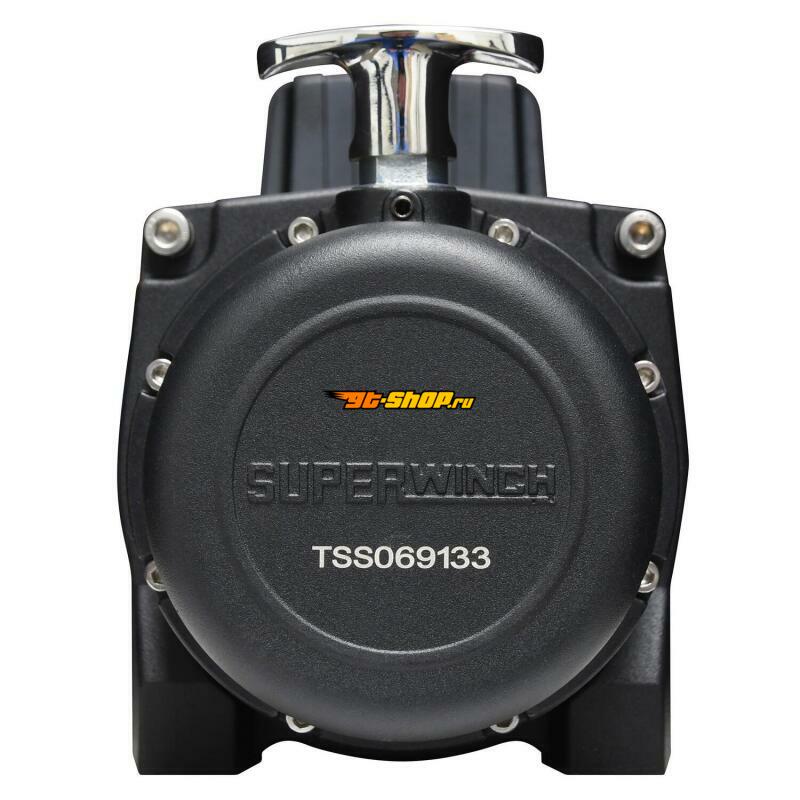

SUPERWINCH 1595200
SUPERWINCH 1595200
Winch
| SUPERWINCH 1595200 Specifications | |
|---|---|
| Brake | Mechanical, Automatic Load Holding |

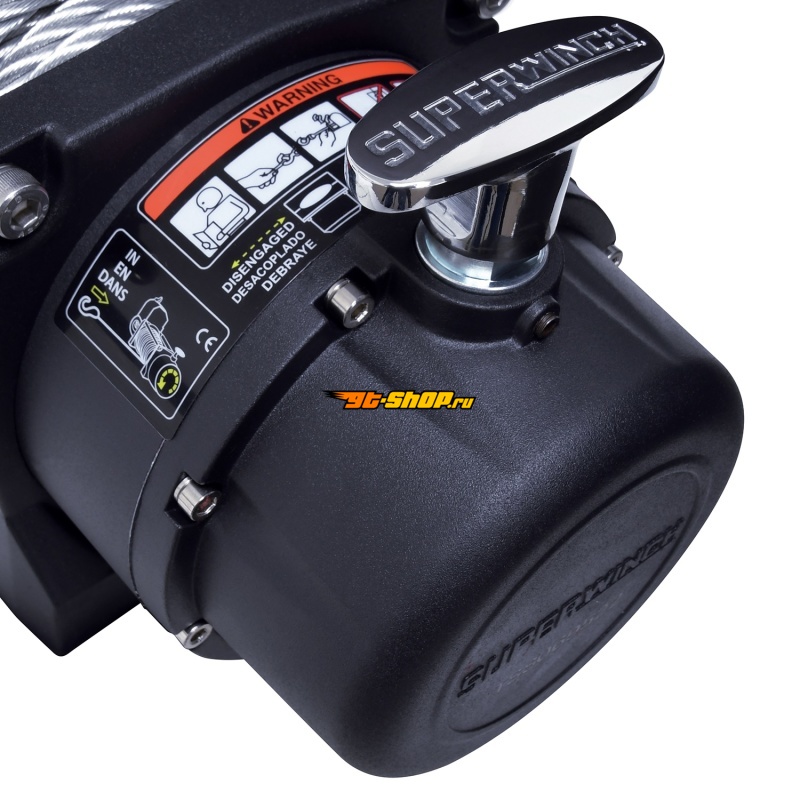

| Clutch | Pull and Turn, Ergo |
| Dimensions | 20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H) |
| Drum Diameter | 2.5" (63.5mm) |
| Drum Length | 9" (228.6mm) |
| Fairlead | Heavy-Duty, Stainless Steel 4-Way Roller |
| Gear Ratio | 218:1 |
| Gearing | 3-Stage Planetary |

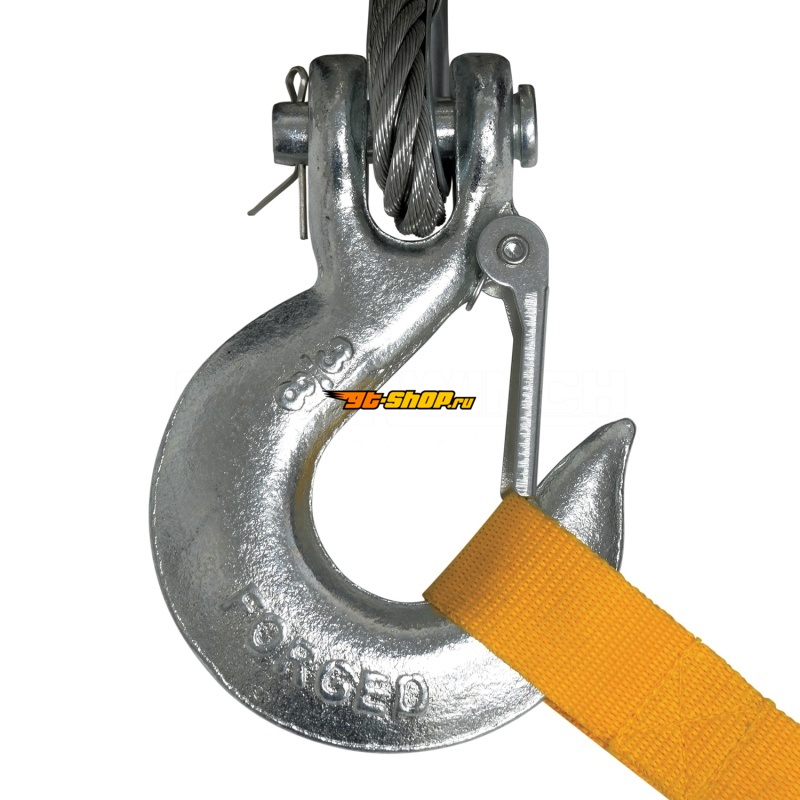

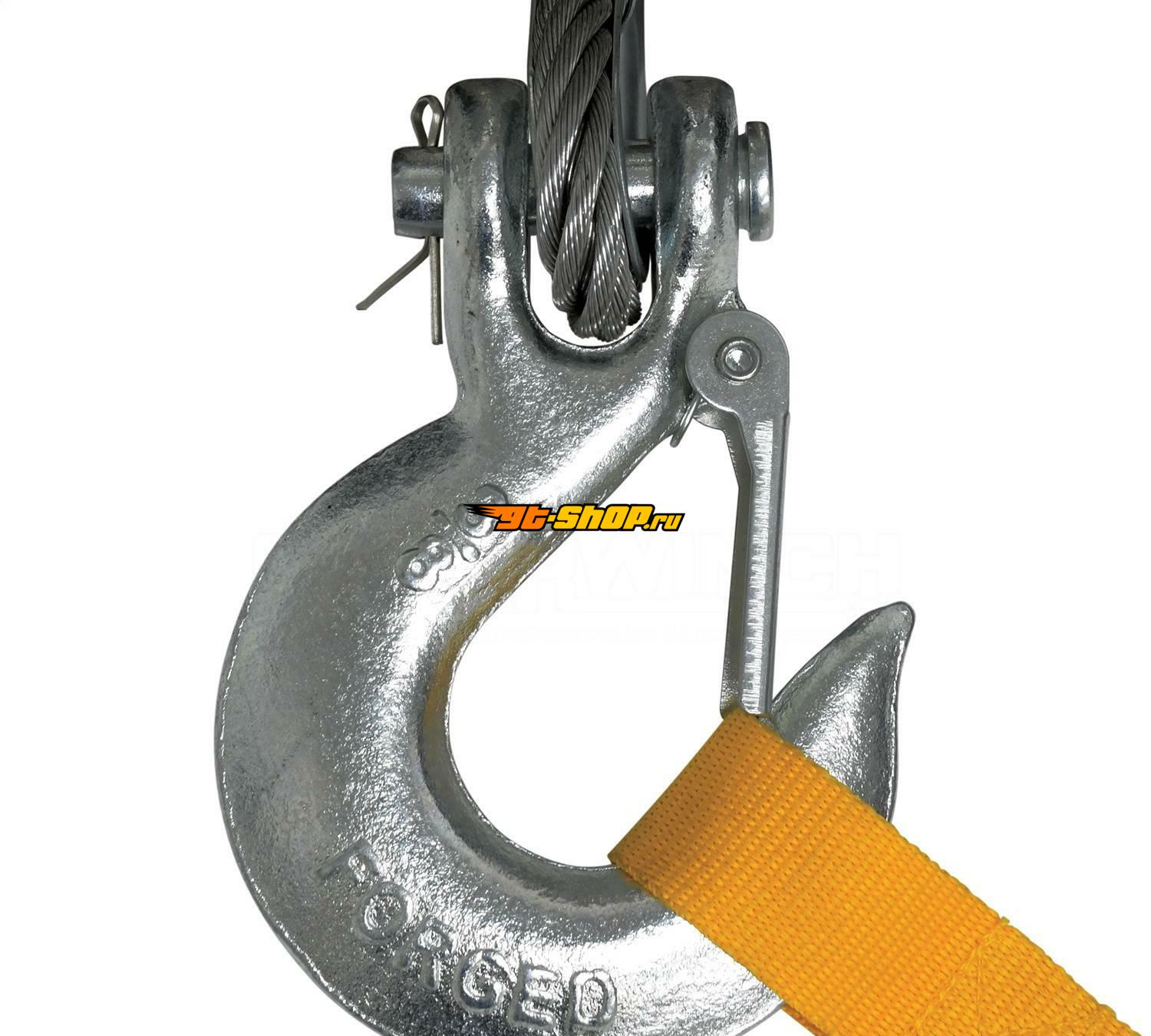

| Hook | Heavy Duty Clevis Pinned Latched |
| Installed Weight | 90 lbs. (41kg) |
| Lead Wires | 6' (1.8m) x 4 gauge (25mm² ) |
| Line Pull: 0 lbs (0 kgs) | 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
| Line Pull: 9,500 lbs (4,309 kgs) | 340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed |

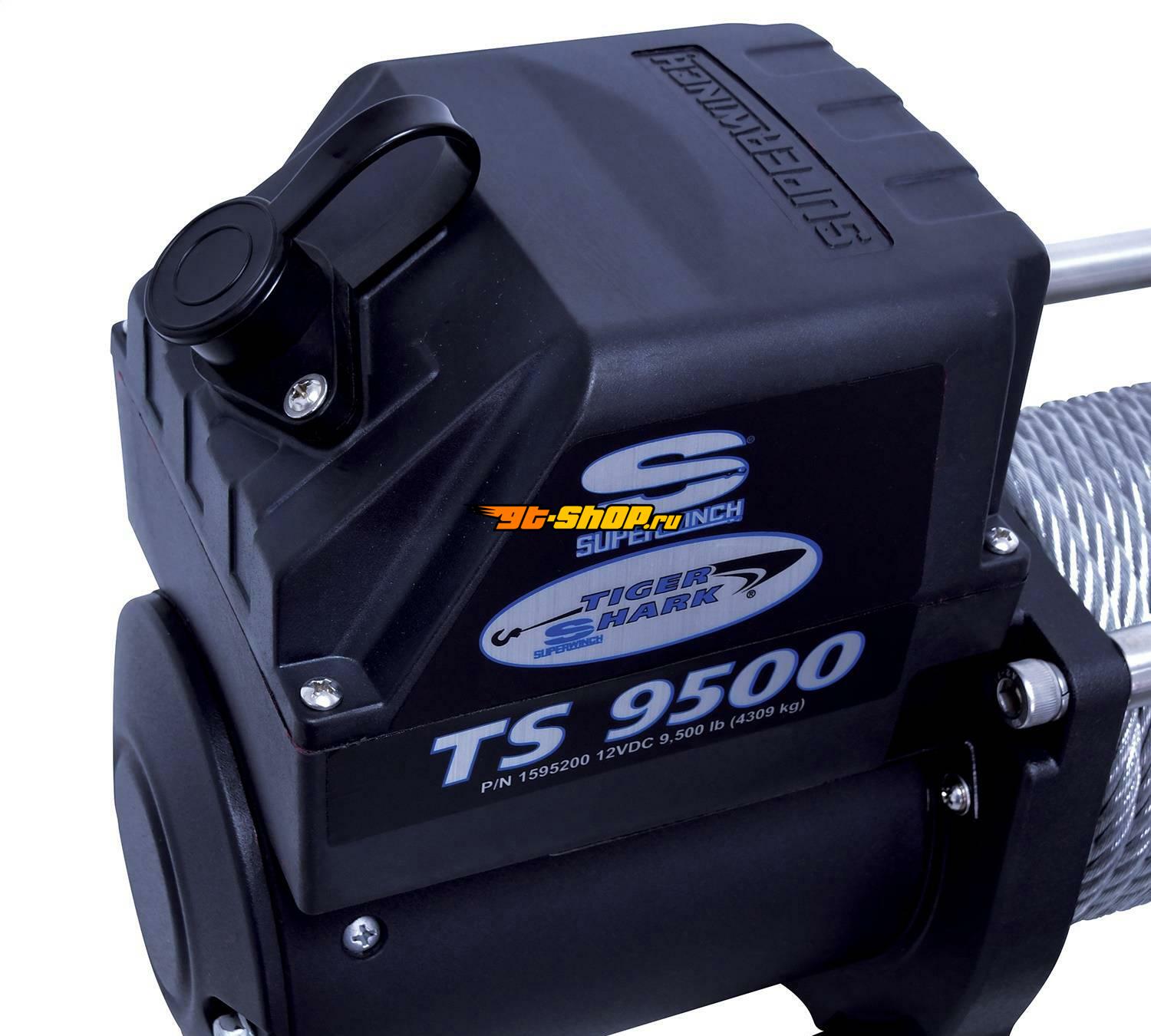

| Motor | Sealed 5.2 HP Series Wound |
| Rated Line Pull | 9,500 lbs (4309 kg) |
| Remote | 12' Rubber Sealed Hand-held |

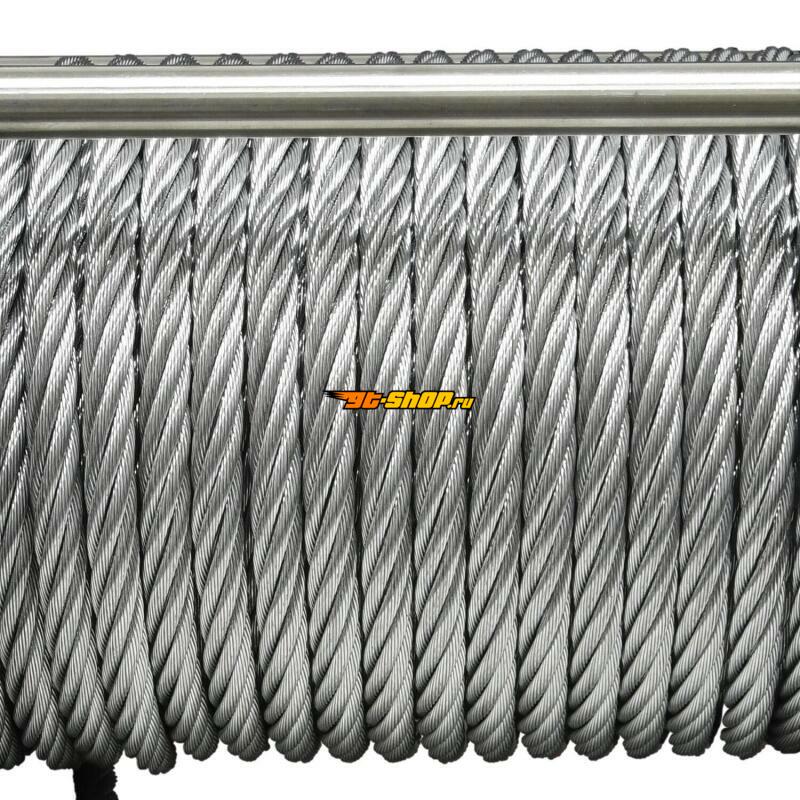

| Rope | Wire 21/64" x 95' (8.3mm x 29m) |
| Shipping Weight | 94 lbs (42kg) |
| Solenoid | Weather Sealed Solenoid and Circuit Breaker Protected |
| Производитель | SUPERWINCH |
| Оригинальный Номер | 1595200 |
| Описание | Winch |
