SUPERWINCH 1595201
SUPERWINCH 1595201

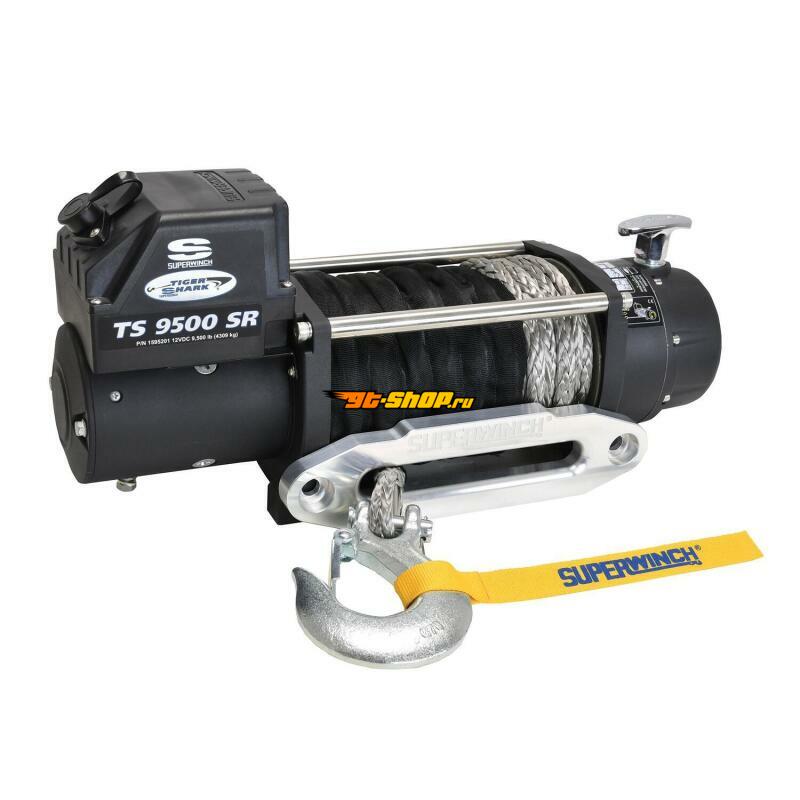

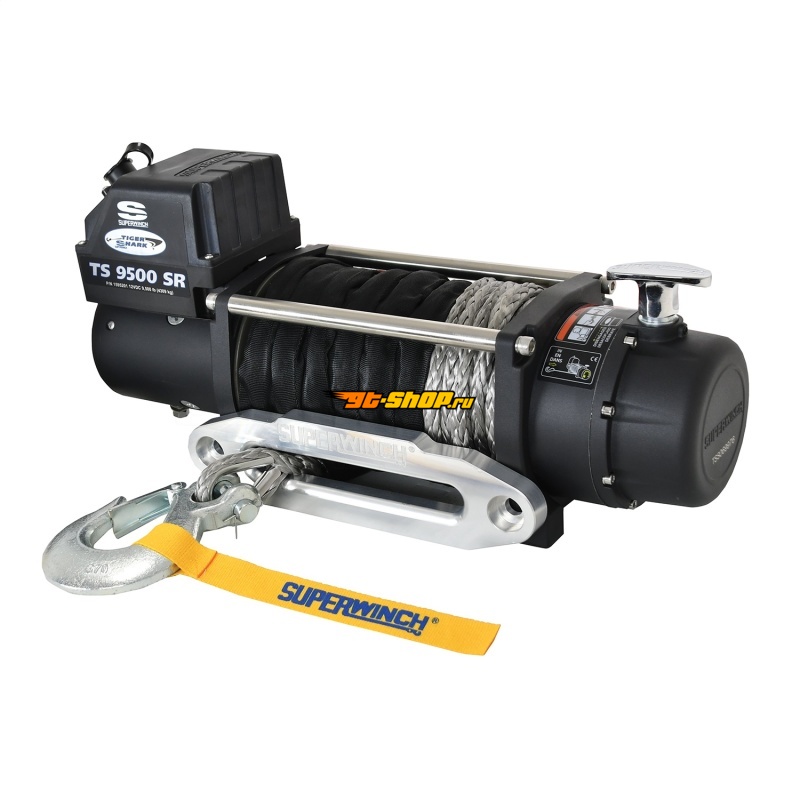

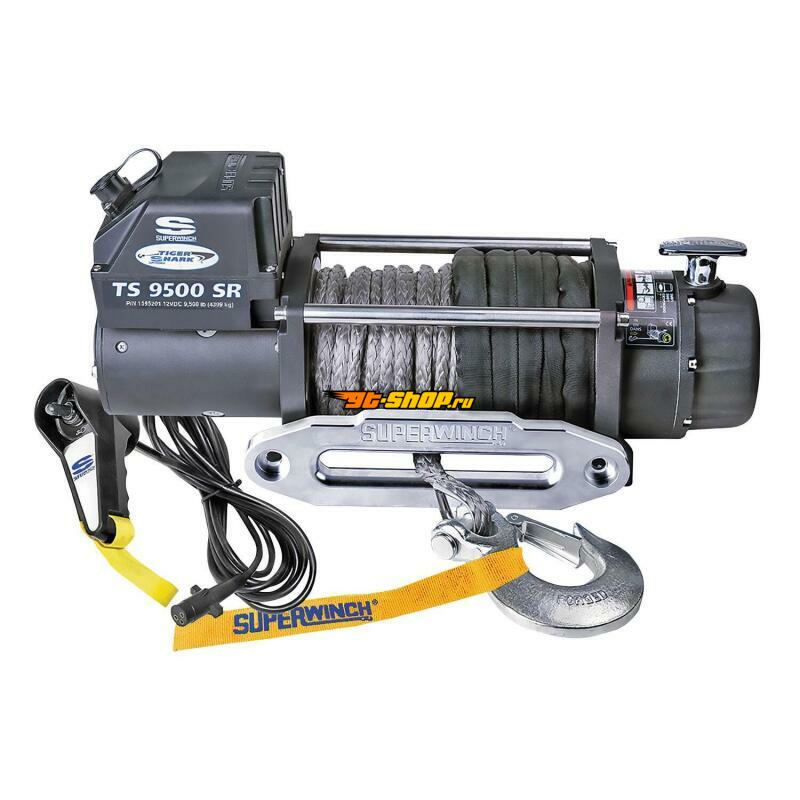

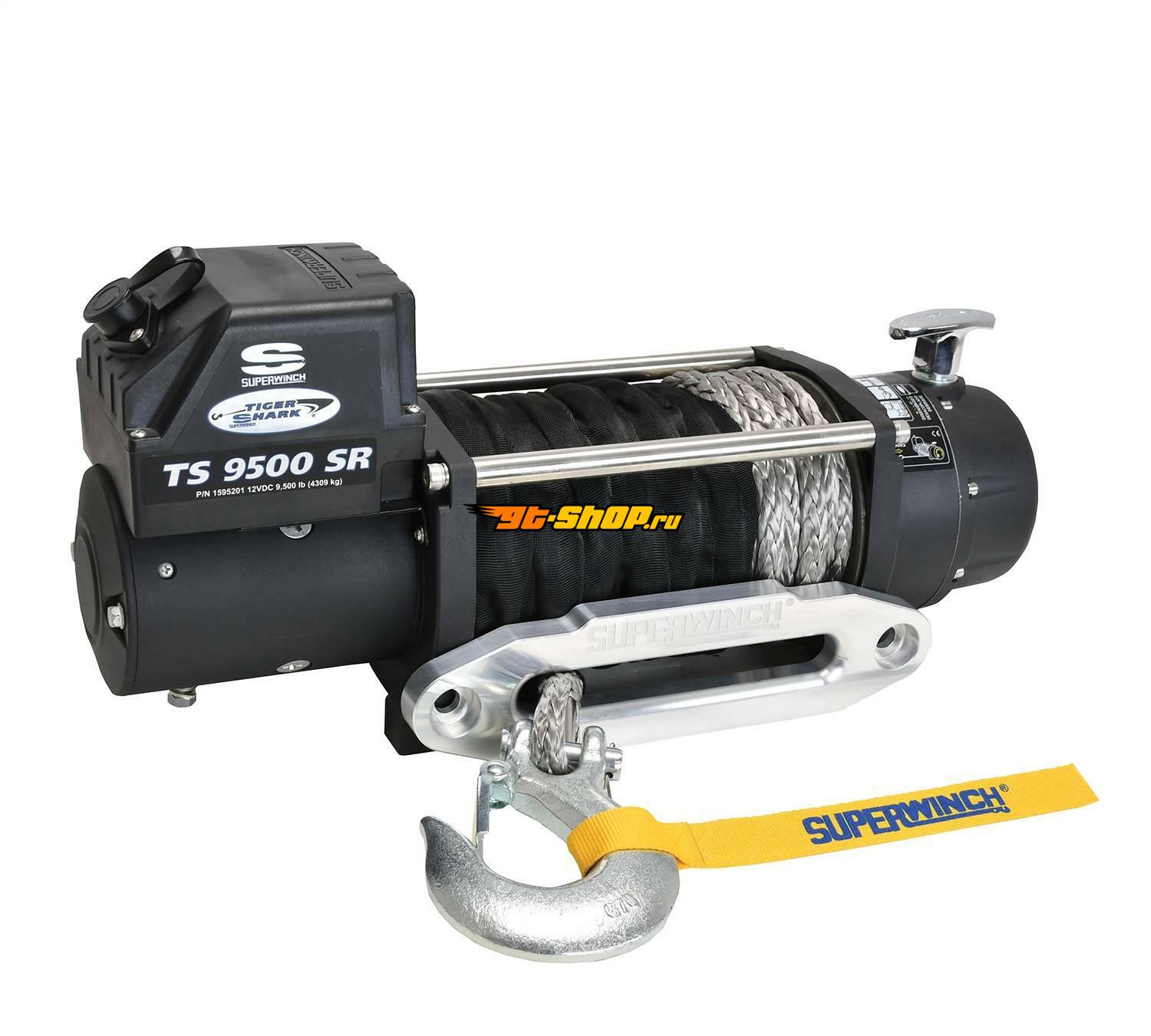

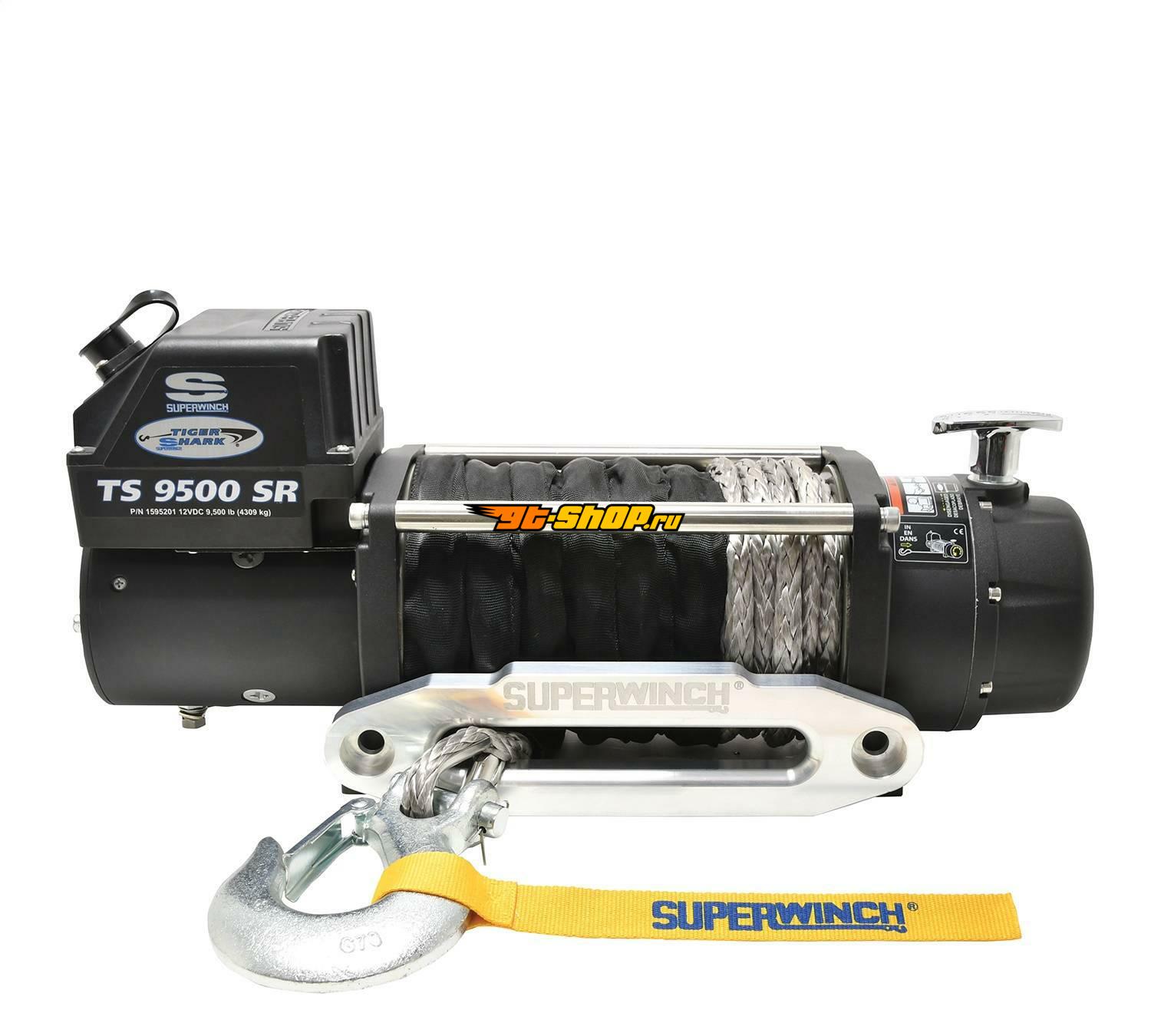

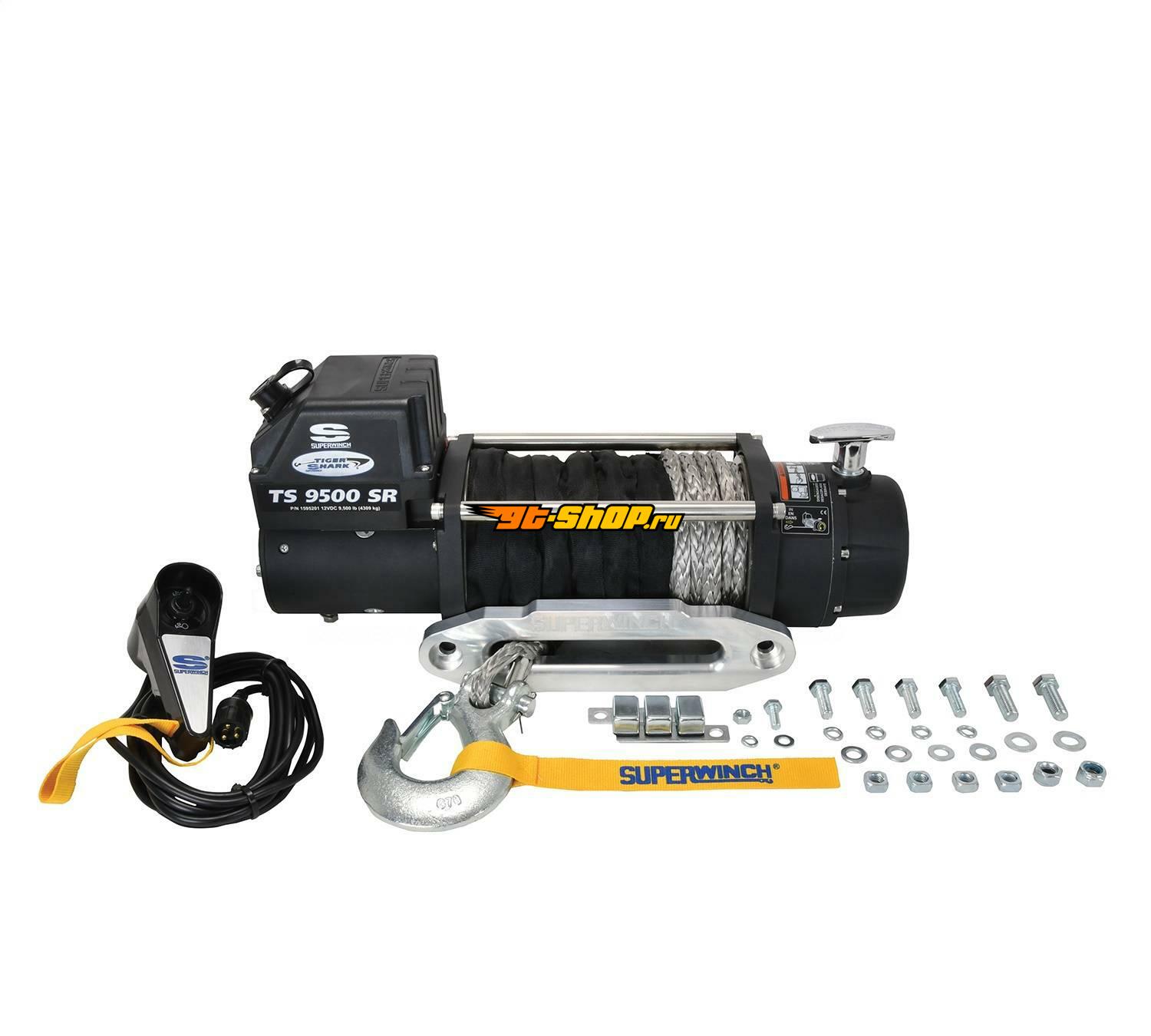

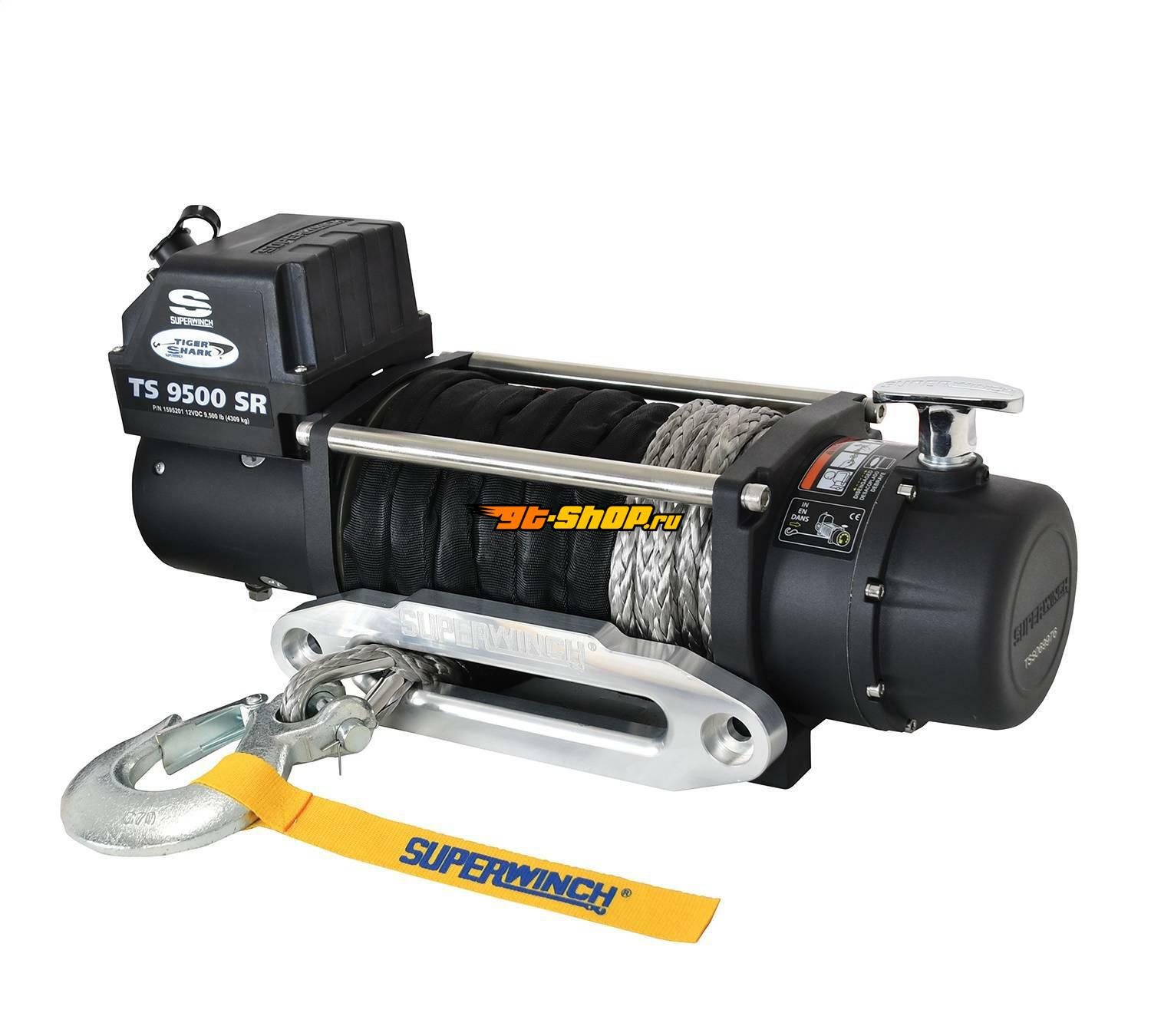

Superwinch 9500 LBS 12V DC 3/8in x 80ft Synthetic Rope Tiger Shark 9500 Winch
| SUPERWINCH 1595201 Specifications | |
|---|---|
| Brake | Mechanical, Automatic Load Holding |

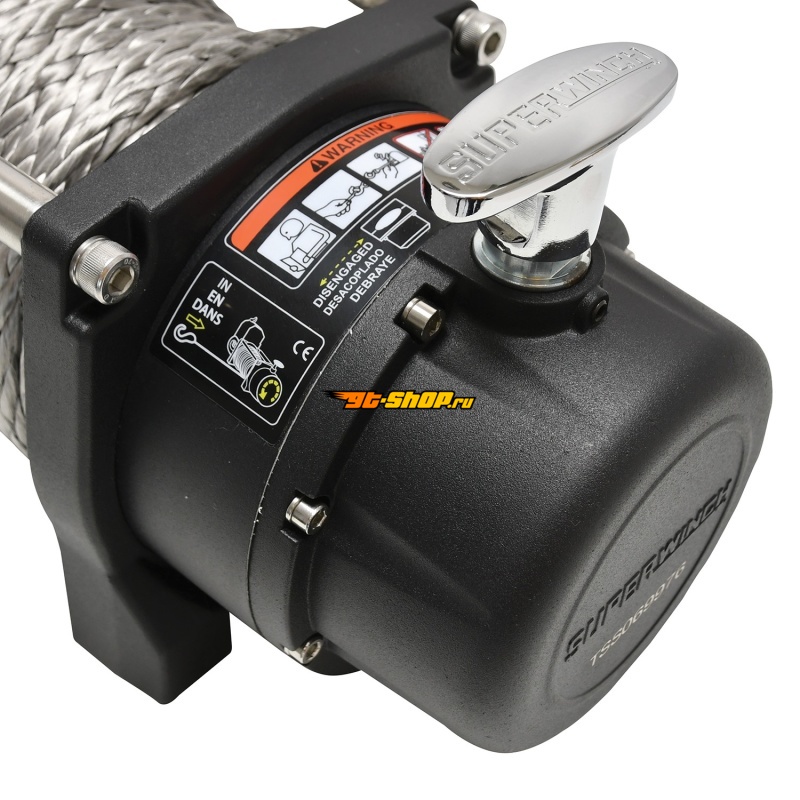

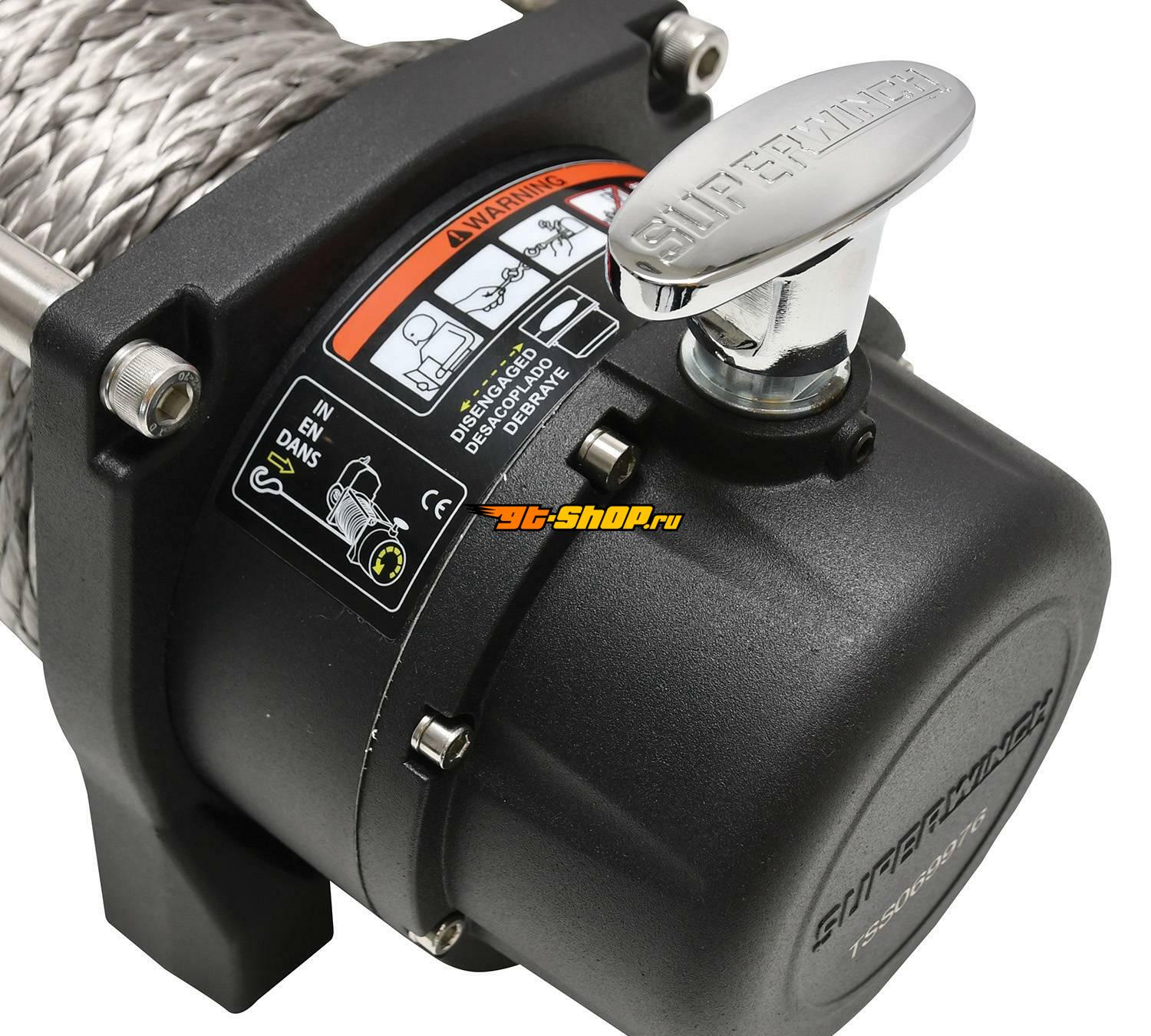

| Clutch | Pull and Turn, Ergo |
| Dimensions | 20.8" L x 6.3" W x 9.2 H (529mm L x 160mm W x 234.5mm H) |
| Drum Diameter | 2.5" (63.5mm) |
| Drum Length | 9" (228.6mm) |
| Fairlead | Anodized Aluminum Hawse |
| Gear Ratio | 218:1 |
| Gearing | 3-Stage Planetary |

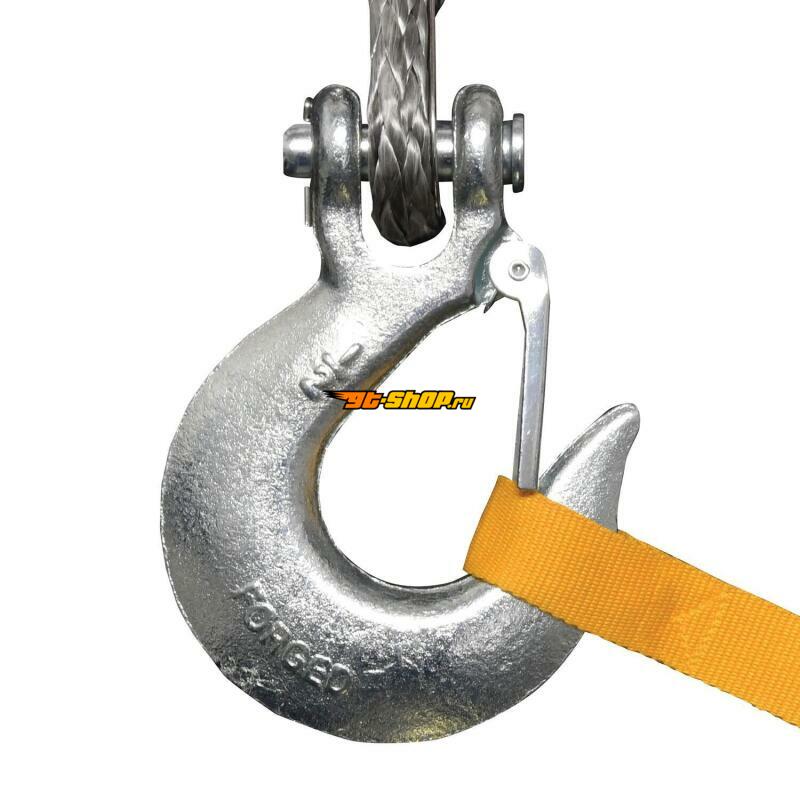

| Hook | Heavy Duty Clevis Pinned Latched |
| Installed Weight | 59 lbs. (26.7kg) |
| Lead Wires | 6' (1.8m) x 4 gauge (25mm² ) |
| Line Pull: 0 lbs (0 kgs) | 80 Amps Motor Draw/19 FPM (5.7 MPM) Line Speed |
| Line Pull: 9,500 lbs (4,309 kgs) | 340 Amps Motor Draw/4 FPM (1.2 M/M) Line Speed |
| Motor | Sealed 5.2 HP Series Wound |
| Rated Line Pull | 9,500 lbs (4309 kg) |

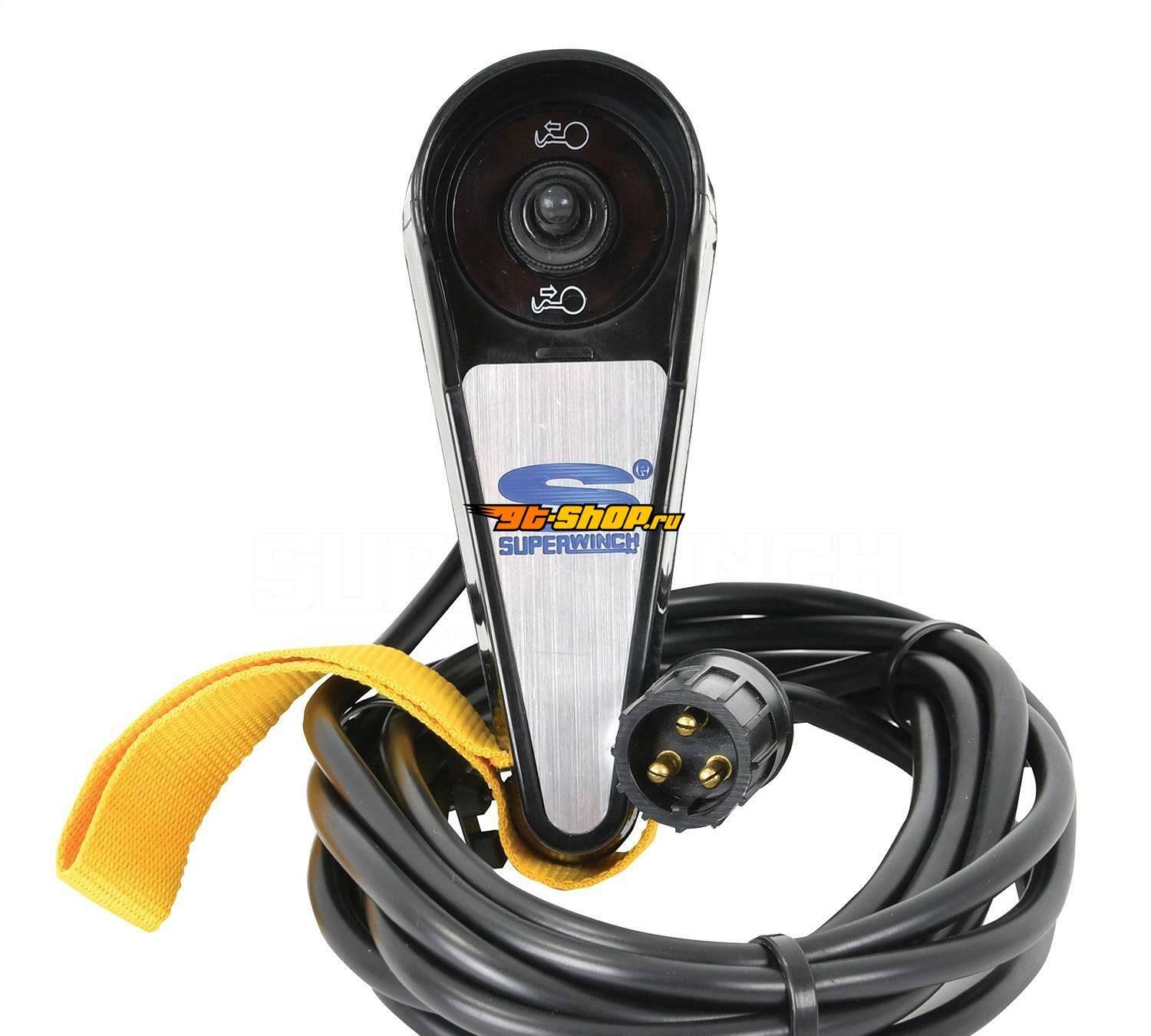

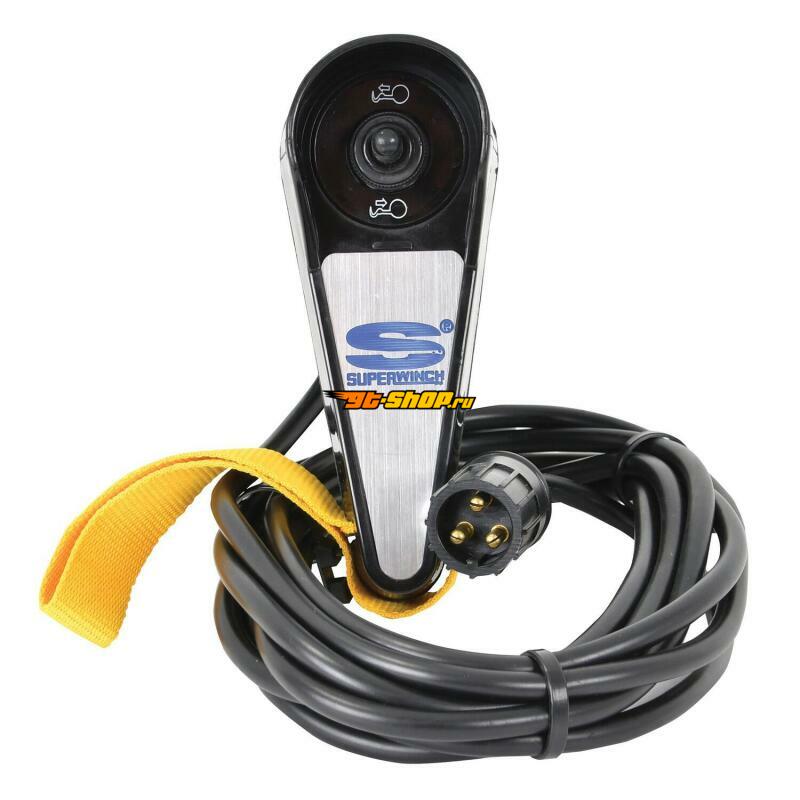

| Remote | 12' Rubber Sealed Hand-held |

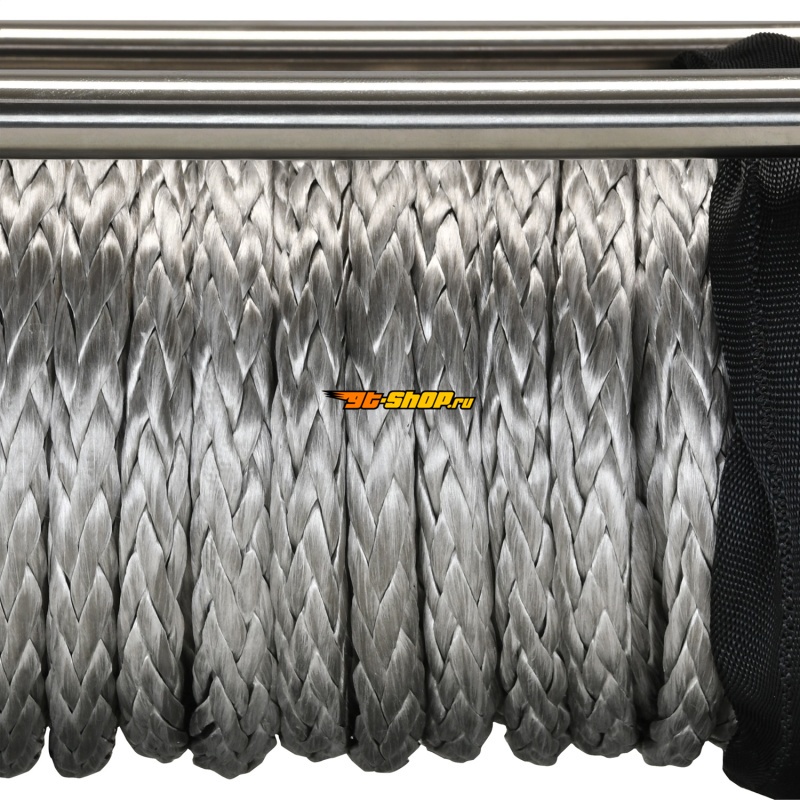

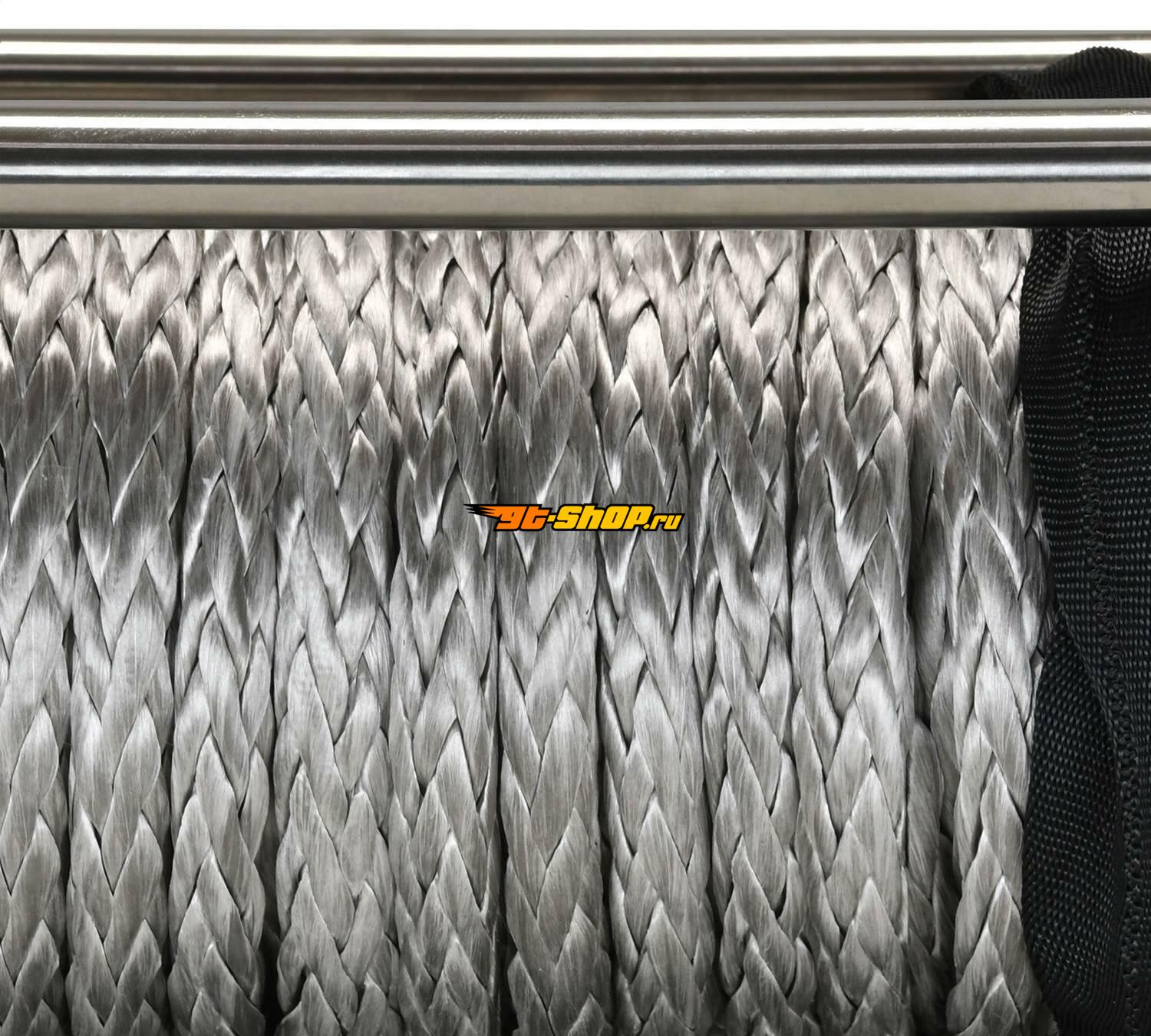

| Rope | Synthetic 3/8" x 80' |
| Shipping Weight | 63 lbs (28.6 kg) |

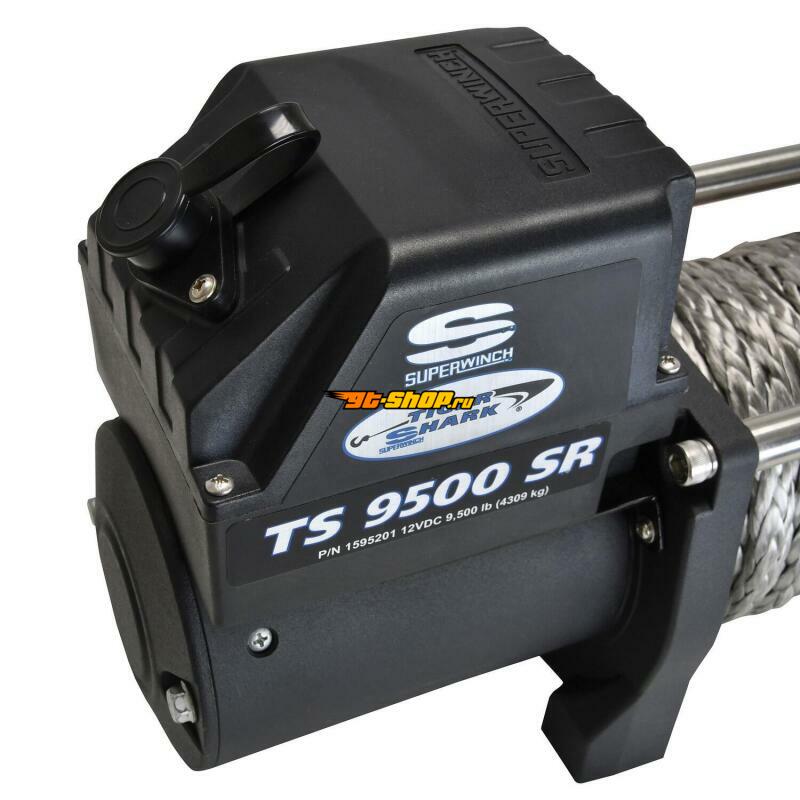

| Solenoid | Weather Sealed Solenoid and Circuit Breaker Protected |
| Производитель | SUPERWINCH |
| Оригинальный Номер | 1595201 |
| Описание | Superwinch 9500 LBS 12V DC 3/8in x 80ft Synthetic Rope Tiger Shark 9500 Winch |
