Оригинал. TRAKMOTIVE BM8022, CV Axle, От 8210 Руб.
TRAKMOTIVE BM8022
TRAKMOTIVE BM8022

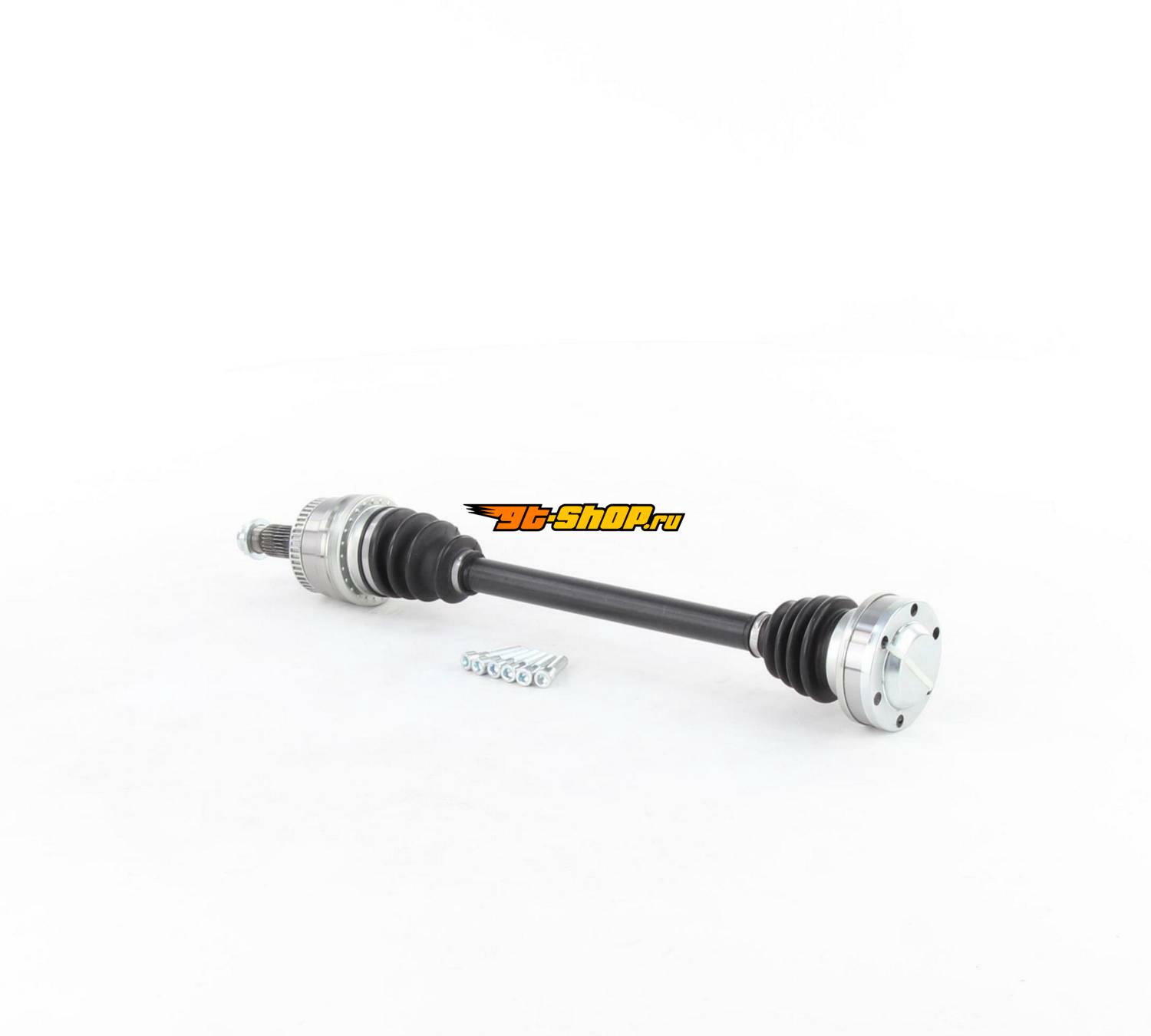

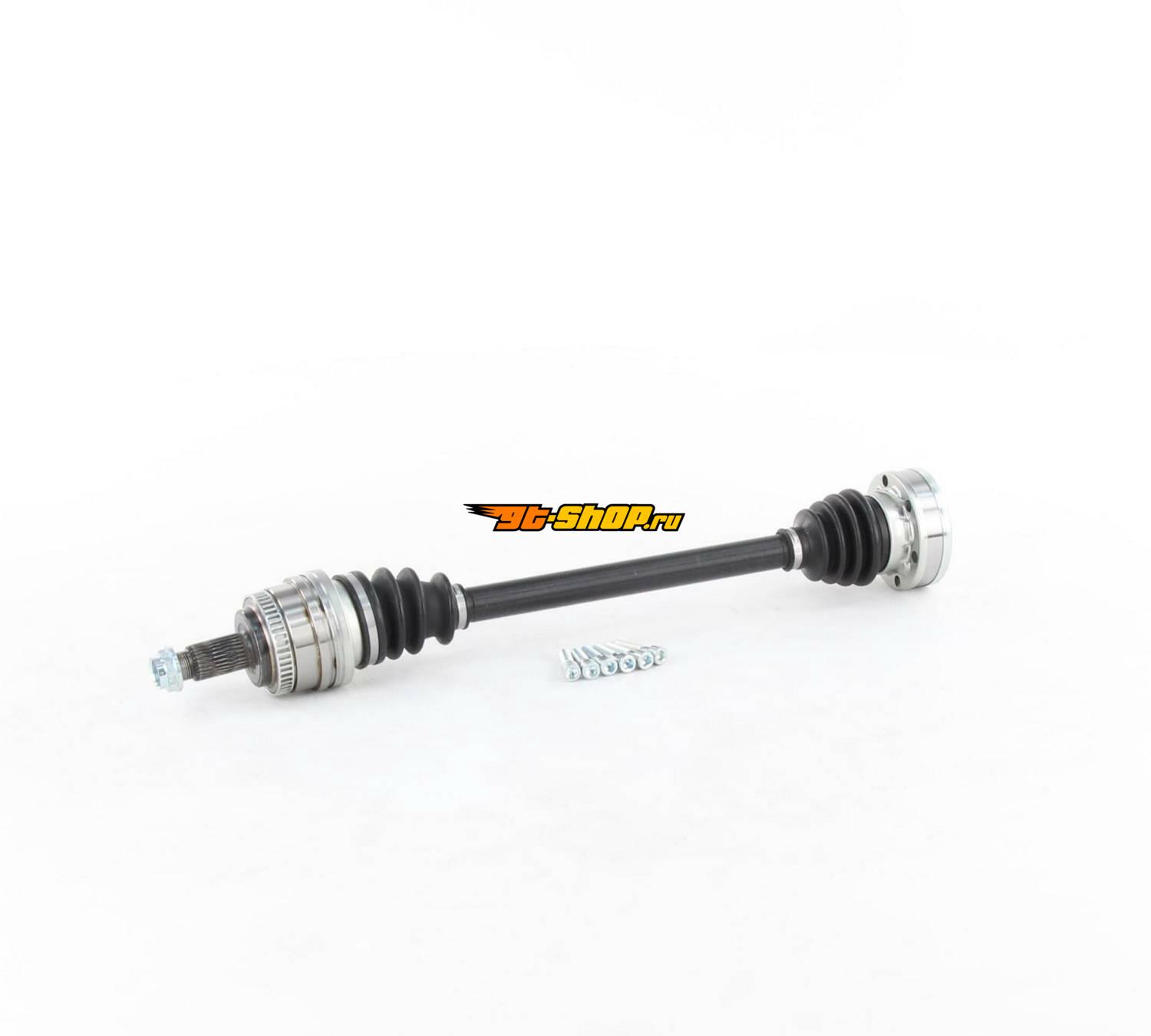

CV Axle
| TRAKMOTIVE BM8022 Specifications | |
|---|---|
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (IN) | 2/3 |
| Axle Nut Height (MM) | 17 |
| Axle Nut Hex Size (IN) | 1 1/6 |
| Axle Nut Hex Size (MM) | 29.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (IN) | 1 1/3 |
| Axle Nut Length (MM) | 33.8 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (IN) | 1/3 |
| Inboard Bolt Head Size (MM) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (IN) | 2 1/6 |
| Inboard Bolt Length (MM) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (IN) | 26.38 |
| Overall Compressed Length (MM) | 670 |
| Производитель | TRAKMOTIVE |
| Оригинальный Номер | BM8022 |
| Описание | CV Axle |
